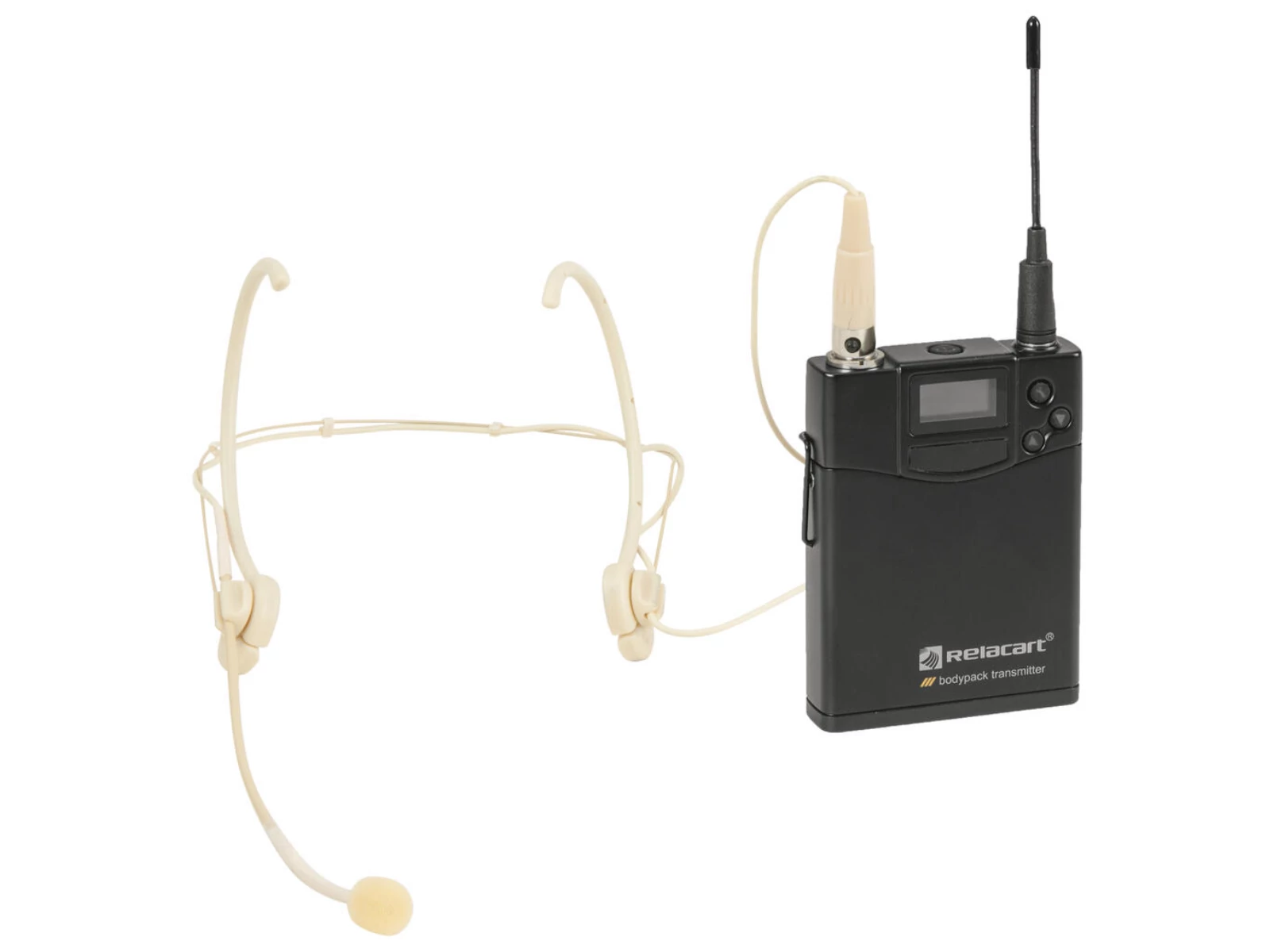

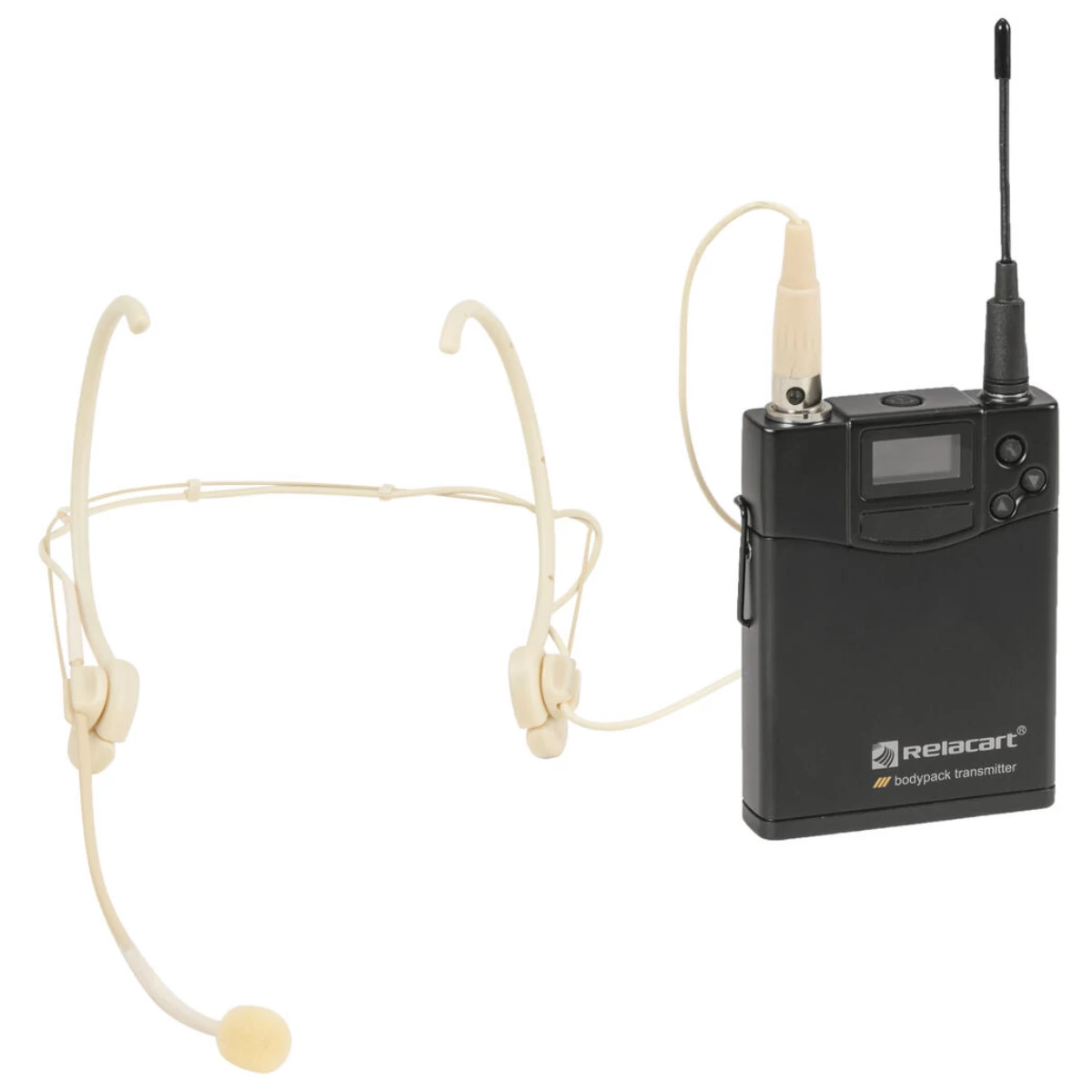

Bodypack transmitter with PLL multifrequency transmitter, 823-832 + 863-865 MHz
- Durable aluminum alloy housing, applicable for touring
- Pilot frequency squelch technology delete wireless RF interference
- 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
- Parallel operation of up to 9 systems is possible without any interference
- Easy and error-free synchronization between receiver and transmitter via infrared signal
- Mute function
- Adjustable input gain
- RF output power Hi/Low adjustable
- Lock function for prevents undesired changes to settings
transmitter
- OLED display
- UHF 823 - 832 MHz License-free and approved in large parts of europe
- UHF 863 - 865 MHz License-free and approved in europe
- Operating range up to 80m
Microphone
- Polar pattern: Omnidirectional
- For further information about this product, please refer to the Data Sheet under "Downloads"
Package contents
- 1 x transmitter, 1 x microphone, 1 x windshield, 1 x user manual, 1 x declaration of conformity
Manuals
ManualsParaméterek
Weight | 210 g |
Transmitter | |
Type | Bodypack with microphone |
Power supply | 3 V DC |
Power connection | Battery/battery pack |
Battery | 2 x Mignon (AA) (not included) |
Gain | 0 dB |
-6 dB | |
-12 dB | |
Display type | OLED display |
Control elements | Transmitter power switch (high-low) |
Connections | Output:Mini XLR (M) 4-pin mounting version |
Frequency band | UHF 823 - 832 MHz; UHF 863 - 865 MHz |
Frequency selection | 90 Switchable frequencys |
In 10 groups with up to 10 preset frequencies each | |
Modulation | FM |
RF power output | 10 mW (LO); 40 mW (HI) |
Range | Range up to 80m |
Switching bandwidth | 11 MHz |
Switch | On/off/mute switch |
Material | Aluminum |
Color | Black |
Dimensions | Width:6,6 cm |
Depth | 2,3 cm |
Height | 8,4 cm |
Weight | 174 g |
Microphone | |
Type | Headset |
Power supply | 2-10 V DC |
Cable length | 1,2 m |
Capsule type | Condenser |
Size | Ø 5 mm x 6 mm |
Polar pattern | Omnidirectional |
Frequency range | 50 - 18000 Hz |
Sensitivity | -47 dB |
Impedance | 1800 Ohm |
Connector type | Mini XLR (F) 4-pin |
Color | Skin-colored |
Weight | 28 g |
