Diversity wireless receiver with DSP for microphone modeling and PC software

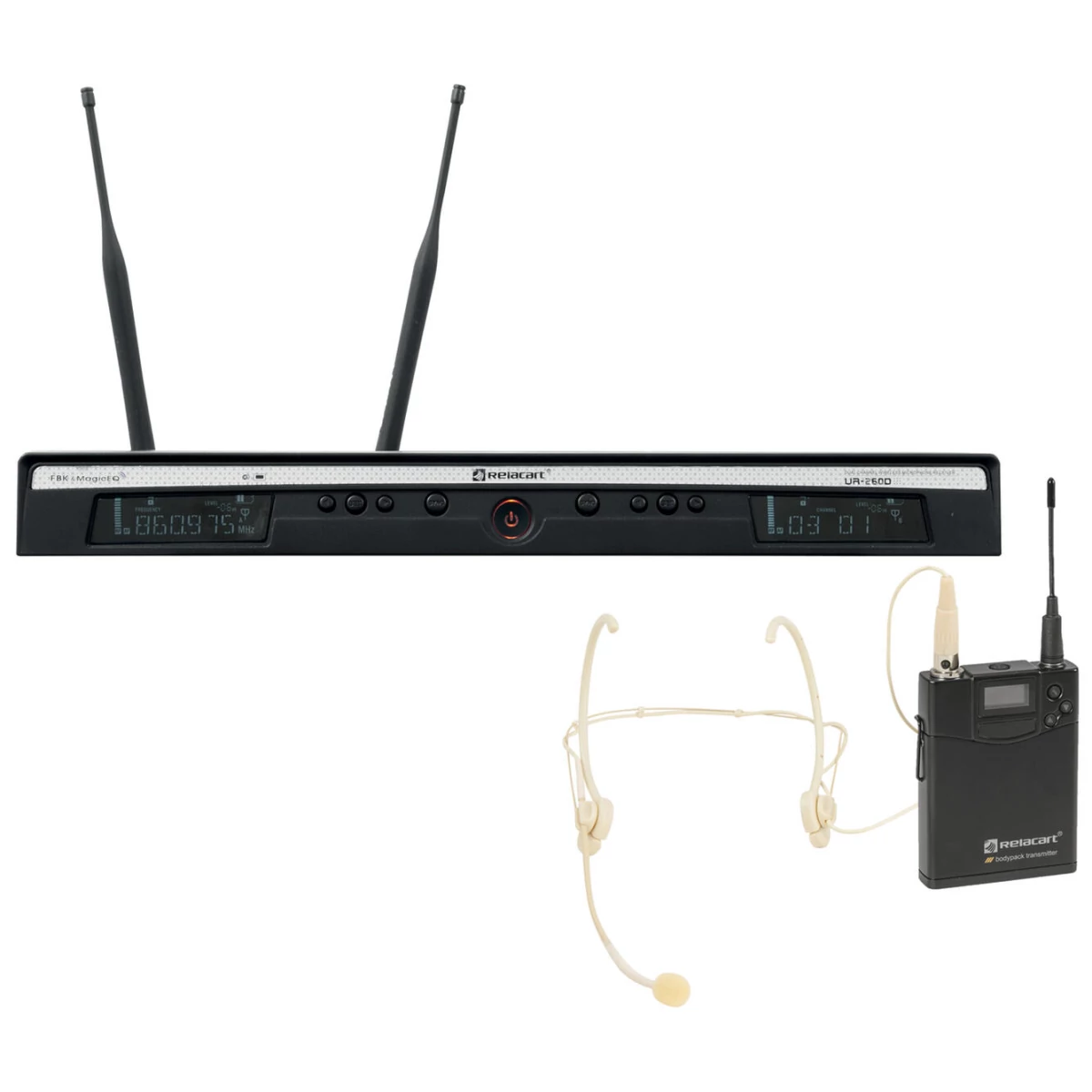

RELACART UR-260D 2-channel UHF Receiver
- 2-channel multifrequency wireless receiver with 24-bit processor for high-end audio quality
- Integrated MagicEQ enables amazing microphone modeling of hand-held microphones
- Choose from 7 presets based on popular microphone models (e835, beta58, e935, D5, SM57, N/D767a, SM58) and 3 user-definable presets
- Integrated Feedback Killer effectively eliminates feedback, providing maximum gain and increased clarity on every microphone
- DSP programming and management via Ethernet port and intuitively operated PC software
- High-quality antenna diversity reception
- 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
- Parallel operation of up to 9 wireless channels is possible without any interference
- Pilot frequency squelch technology delete wireless RF interference
- Automatic frequency scan (AFS) finds interference-free channels
- Easy and error-free synchronization between receiver and transmitter via infrared signal
- Multiple units can be linked with network cables
- Lock function for prevents undesired changes to settings
- XLR and 6.3 mm jack output
- 2 detachable BNC antennas allow for use with the R-14D antenna divider
- Delivery includes jack cable and power unit
- Rugged metal housing
- Digital signal processor 96kHz, 24 bit
- Multicolor LCD display
- UHF 863 - 865 MHz License-free and approved in europe
- UHF 823 - 832 MHz License-free and approved in large parts of europe
- Operating range up to 80m
- The device can be connected via RJ-45 (F) mounting version to the PC in connection with RELACART Magic EQ software
- Desktop console housing
- (19") 48.3 cm rack installation possible 1 U
Package contents
- 1 x receiver, 2 x antenna, 1 x external mains adapter, 1 x jack cable, 2 x mounting bracket, 6 x screw, 1 x user manual, 1 x declaration of conformity
RELACART UT-222 Bodypack with HM-600S Headset
Bodypack transmitter with PLL multifrequency transmitter, 823-832 + 863-865 MHz
- Durable aluminum alloy housing, applicable for touring
- Pilot frequency squelch technology delete wireless RF interference
- 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
- Parallel operation of up to 9 systems is possible without any interference
- Easy and error-free synchronization between receiver and transmitter via infrared signal
- Mute function
- Adjustable input gain
- RF output power Hi/Low adjustable
- Lock function for prevents undesired changes to settings
transmitter
- OLED display
- UHF 823 - 832 MHz License-free and approved in large parts of europe
- UHF 863 - 865 MHz License-free and approved in europe
- Operating range up to 80m
Microphone
- Polar pattern: Omnidirectional
- For further information about this product, please refer to the Data Sheet under "Downloads"
Package contents
- 1 x transmitter, 1 x microphone, 1 x windshield, 1 x user manual, 1 x declaration of conformity
Paraméterek
Weight | 2,61 kg |
RELACART UR-260D 2-channel UHF Receiver | |
Type | Receiver |
Power supply | 100-240 V AC, 50/60 Hz |
12 V DC 1 A | |
Power consumption | Max. 9 W |
Power connection | Mains input via Coaxial power connector (M) mounting version power supply cord with AC adapter (provided) |
Number of channels | 2 |
Frequency range | 45 - 18000 Hz |
S/N ratio | >100 dB |
THD | <0,5 % at 1 kHz |
Network connection | Protocol:Ethernet TCP/IP via 1x RJ-45 (F) mounting version |
DSP | Digital signal processor 96kHz, 24 bit |
Display type | Multicolor LCD display |
Control elements | Power switch, groundlift selector, menu, navigation keys |
Connections | Antenna via 2 x BNC (F) 8 V |
Output | Microphone via 2 x 3-pin XLR (M) mounting version |
Output | line via 1 x 6.3 mm plug (unbal.) |
Frequency band | UHF 863 - 865 MHz; UHF 823 - 832 MHz |
Frequency selection | 90 Switchable frequencys |
In 10 groups with up to 10 preset frequencies each | |
Modulation | FM |
Frequency stability | ± 0,0005 % |
Range | Range up to 80m |
Switching bandwidth | 11 MHz |
Diversity | Antenna diversity |
Material | Metal |
Color | Black |
PC connect | RELACART Magic EQ software via RJ-45 (F) mounting version |
Housing design | Desktop console housing |
(19") 48.3 cm rack installation possible 1 U | |
Dimensions | Width:41 cm |
Depth | 26 cm |
Height | 4,3 cm |
Weight | 2,40 kg |
RELACART UT-222 Bodypack with HM-600S Headset | |
Weight | 210 g |
Transmitter | |
Type | Bodypack with microphone |
Power supply | 3 V DC |
Power connection | Battery/battery pack |
Battery | 2 x Mignon (AA) (not included) |
Gain | 0 dB |
-6 dB | |
-12 dB | |
Display type | OLED display |
Control elements | Transmitter power switch (high-low) |
Connections | Output:Mini XLR (M) 4-pin mounting version |
Frequency band | UHF 823 - 832 MHz; UHF 863 - 865 MHz |
Frequency selection | 90 Switchable frequencys |
In 10 groups with up to 10 preset frequencies each | |
Modulation | FM |
RF power output | 10 mW (LO); 40 mW (HI) |
Range | Range up to 80m |
Switching bandwidth | 11 MHz |
Switch | On/off/mute switch |
Material | Aluminum |
Color | Black |
Dimensions | Width:6,6 cm |
Depth | 2,3 cm |
Height | 8,4 cm |
Weight | 174 g |
Microphone | |
Type | Headset |
Power supply | 2-10 V DC |
Cable length | 1,2 m |
Capsule type | Condenser |
Size | Ø 5 mm x 6 mm |
Polar pattern | Omnidirectional |
Frequency range | 50 - 18000 Hz |
Sensitivity | -47 dB |
Impedance | 1800 Ohm |
Connector type | Mini XLR (F) 4-pin |
Color | Skin-colored |
Weight | 28 g |
