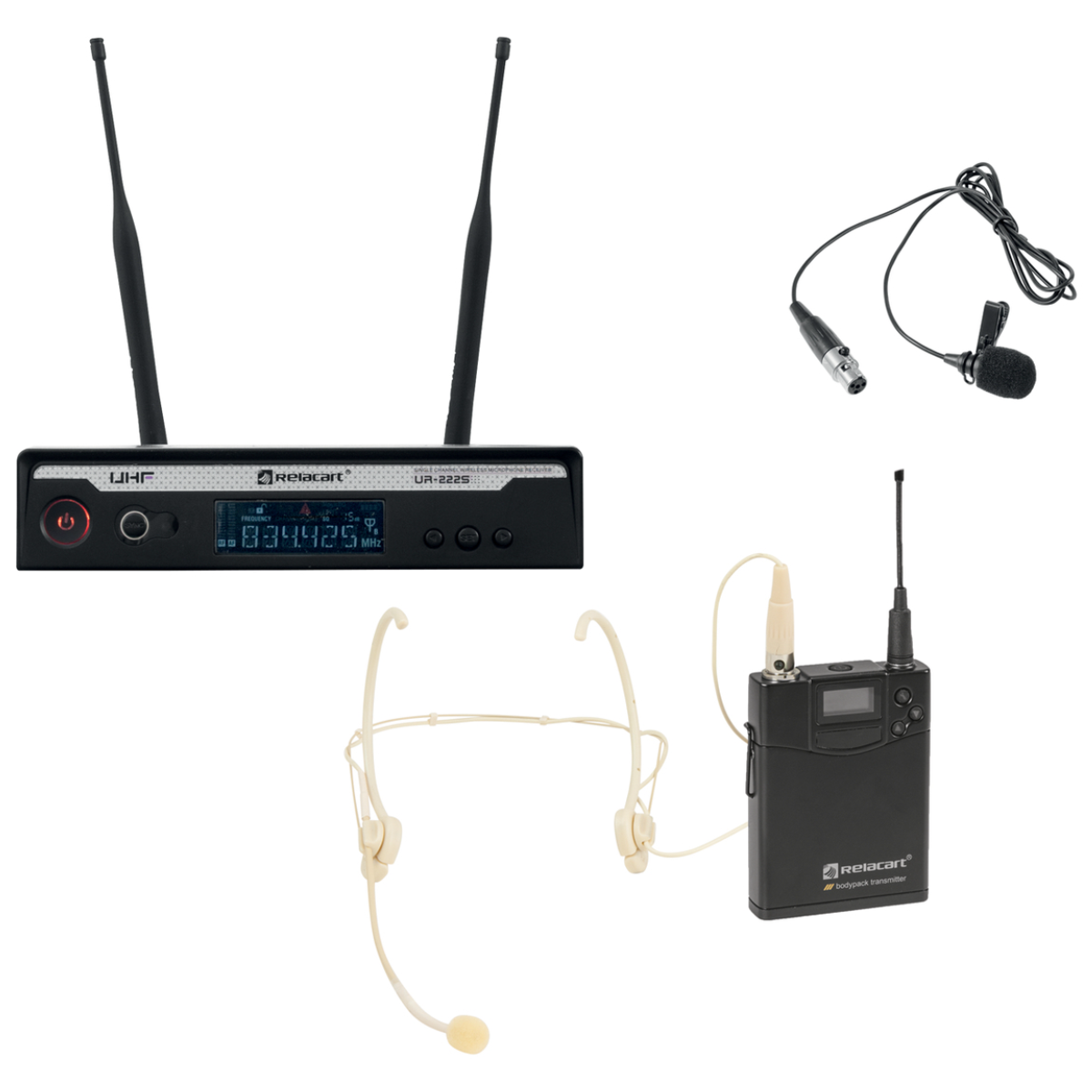

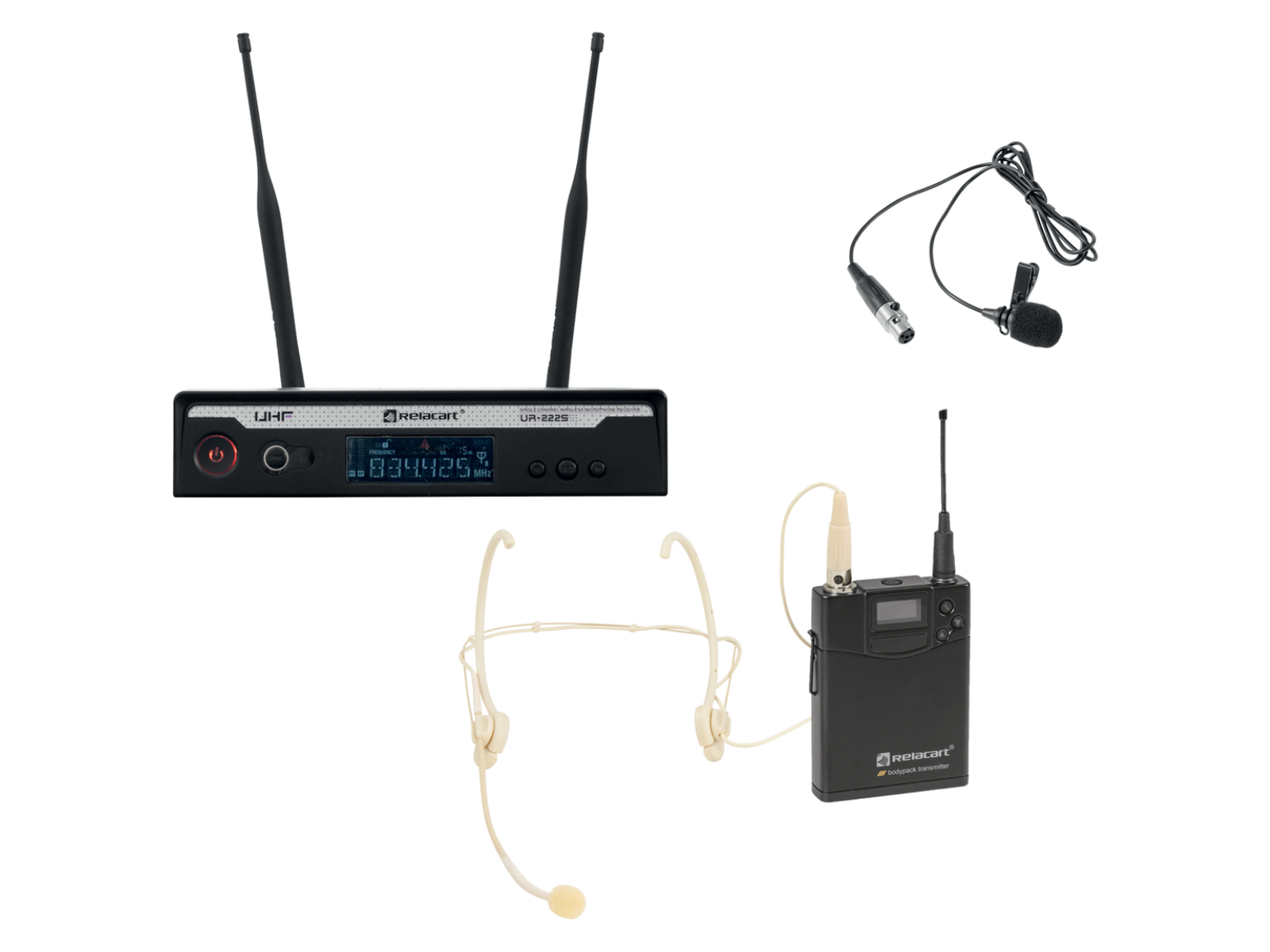

RELACART Set UR-222S Bodypack with HM-600S Headset and Lavalier

147.900 Ft (116.457 Ft + ÁFA)

Menny.:db

Szállítási díj:	Ingyenes
Garancia:	2 év
Raktárkészlet:	Raktáron
Cikkszám:	20000939
Kívánságlistára teszem

RELACART Set UR-222S Bodypack with HM-600S Headset and Lavalier

Leírás

Multifrequency diversity wireless receiver

RELACART UR-222S 1-Channel UHF Receiver

Multifrequency wireless receiver with high-quality diversity reception
10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
Parallel operation of up to 9 systems is possible without any interference
Pilot frequency squelch technology delete wireless RF interference
Automatic frequency scan (AFS) finds interference-free channels
Easy and error-free synchronization between receiver and transmitter via infrared signal
XLR and 6.3 mm jack output
2 detachable BNC antennas allow for use with the R-14D antenna divider
Delivery includes practical transport bag with jack cable and power adapter
Multicolor LCD display
UHF 863 - 865 MHz License-free and approved in europe
UHF 823 - 832 MHz License-free and approved in large parts of europe
Operating range up to 80m
Desktop console housing
(19") 48.3 cm rack installation possible 1 U

Package contents

1 x receiver, 1 x external mains adapter, 2 x antenna, 1 x jack cable, 3 x mounting bracket, 8 x screw, 1 x user manual, 1 x declaration of conformity, 1 x bag

RELACART UT-222 Bodypack with HM-600S Headset

Bodypack transmitter with PLL multifrequency transmitter, 823-832 + 863-865 MHz

Durable aluminum alloy housing, applicable for touring
Pilot frequency squelch technology delete wireless RF interference
10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
Parallel operation of up to 9 systems is possible without any interference
Easy and error-free synchronization between receiver and transmitter via infrared signal
Mute function
Adjustable input gain
RF output power Hi/Low adjustable
Lock function for prevents undesired changes to settings

transmitter

OLED display
UHF 823 - 832 MHz License-free and approved in large parts of europe
UHF 863 - 865 MHz License-free and approved in europe
Operating range up to 80m

Microphone

Polar pattern: Omnidirectional
For further information about this product, please refer to the Data Sheet under "Downloads"

Package contents

1 x transmitter, 1 x microphone, 1 x windshield, 1 x user manual, 1 x declaration of conformity

RELACART LM-C420 Lavalier unidirectional

Inconspicuous electret lavalier microphone

For attaching to the user's tie, shirt or collar
Connection via 4-pin mini XLR plug
Polar pattern: Cardioid
For application areas such as: Theater; product presentations and lectures

Package contents

1 x microphone, 1 x windshield

Paraméterek

Weight	2,19 kg
RELACART UR-222S 1-Channel UHF Receiver
Type	Receiver
Power supply	100-240 V AC, 50/60 Hz
12 V DC 1 A
Power consumption	3 W
Power connection	Mains input via Coaxial power connector (M) mounting version power supply cord with AC adapter (provided)
Number of channels	1
Frequency range	45 - 18000 Hz
S/N ratio	>105 dB
THD	<0,7 % at 1 kHz
Display type	Multicolor LCD display
Display	Charge level , antenna A/B , RF signal level , AF audio level; frequency
Control elements	Groundlift selector, menu, navigation keys
Connections	Antenna via 2 x BNC (F) 8 V
Output	Microphone via 1 x 3-pin XLR (M) mounting version
Output	Microphone via 1 x 6.3 mm plug (unbal.)
Frequency band	UHF 863 - 865 MHz; UHF 823 - 832 MHz
Frequency selection	90 Switchable frequencys
In 10 groups with up to 10 preset frequencies each
Modulation	FM
Frequency stability	± 0,005 %
Range	Range up to 80m
Switching bandwidth	11 MHz
Switch	On/off switch
Diversity	Antenna diversity
Material	Metal
Color	Black
Housing design	Desktop console housing
(19") 48.3 cm rack installation possible 1 U
Dimensions	Width:20 cm
Depth	26 cm
Height	4,4 cm
Weight	1,95 kg
RELACART UT-222 Bodypack with HM-600S Headset
Weight	210 g
Transmitter
Type	Bodypack with microphone
Power supply	3 V DC
Power connection	Battery/battery pack
Battery	2 x Mignon (AA) (not included)
Gain	0 dB
-6 dB
-12 dB
Display type	OLED display
Control elements	Transmitter power switch (high-low)
Connections	Output:Mini XLR (M) 4-pin mounting version
Frequency band	UHF 823 - 832 MHz; UHF 863 - 865 MHz
Frequency selection	90 Switchable frequencys
In 10 groups with up to 10 preset frequencies each
Modulation	FM
RF power output	10 mW (LO); 40 mW (HI)
Range	Range up to 80m
Switching bandwidth	11 MHz
Switch	On/off/mute switch
Material	Aluminum
Color	Black
Dimensions	Width:6,6 cm
Depth	2,3 cm
Height	8,4 cm
Weight	174 g
Microphone
Type	Headset
Power supply	2-10 V DC
Cable length	1,2 m
Capsule type	Condenser
Size	Ø 5 mm x 6 mm
Polar pattern	Omnidirectional
Frequency range	50 - 18000 Hz
Sensitivity	-47 dB
Impedance	1800 Ohm
Connector type	Mini XLR (F) 4-pin
Color	Skin-colored
Weight	28 g
RELACART LM-C420 Lavalier unidirectional
Type	Lavalier microphone
Power supply	2-10 V DC
Power connection	Mains input via Mini XLR (F) 4-pin
Cable length	1,2 m
Capsule type	Electret
Polar pattern	Cardioid
Frequency range	60 - 12000 Hz
S/N ratio	>59 dB
Sensitivity	-42 dB
Impedance	1800 Ohm
Switch	Without
Material	Aluminum
Color	Black
Dimensions	Length:2,80 cm
Diameter	Ø 1,10 cm
Weight	20 g
