Leírás

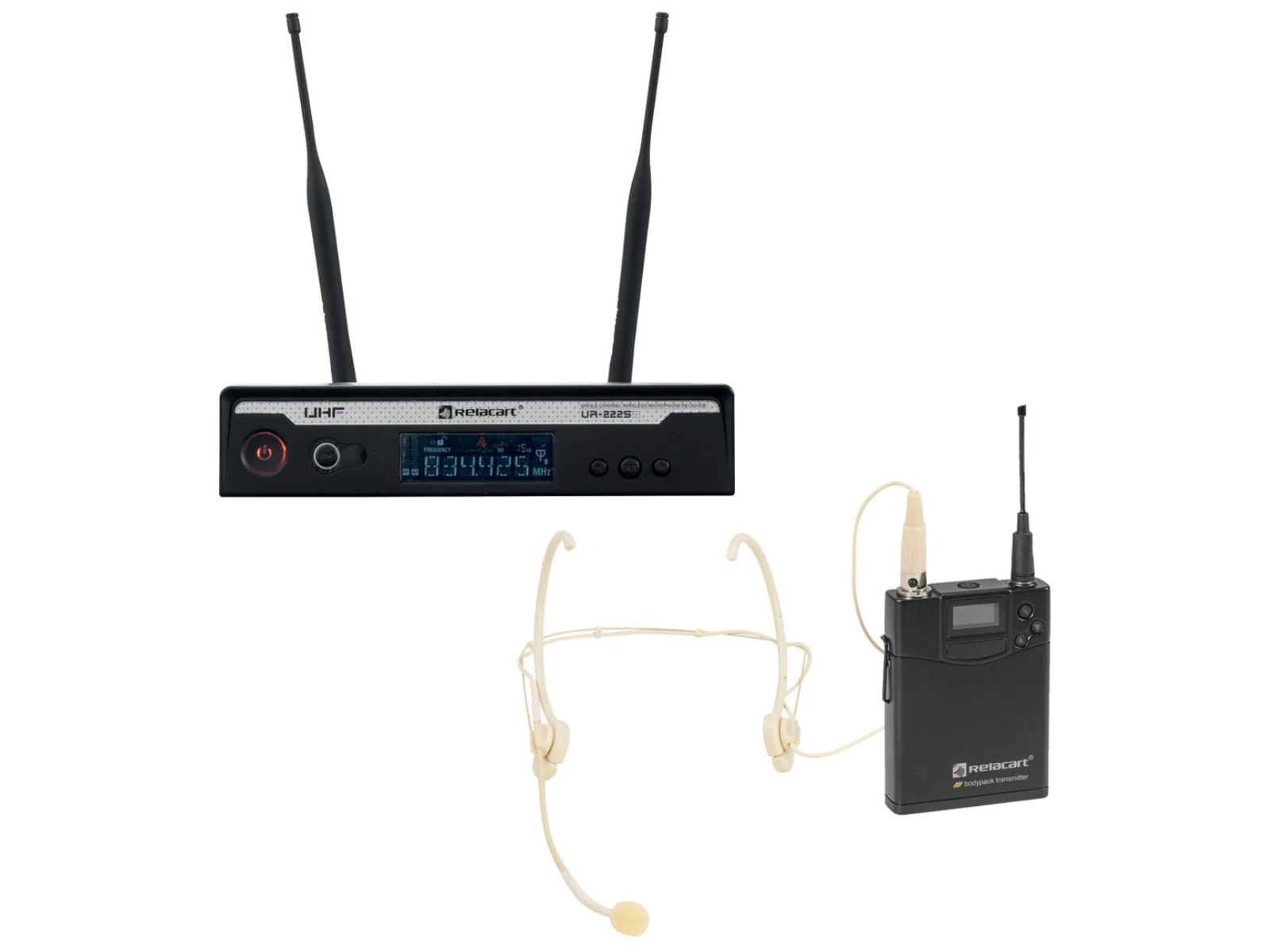

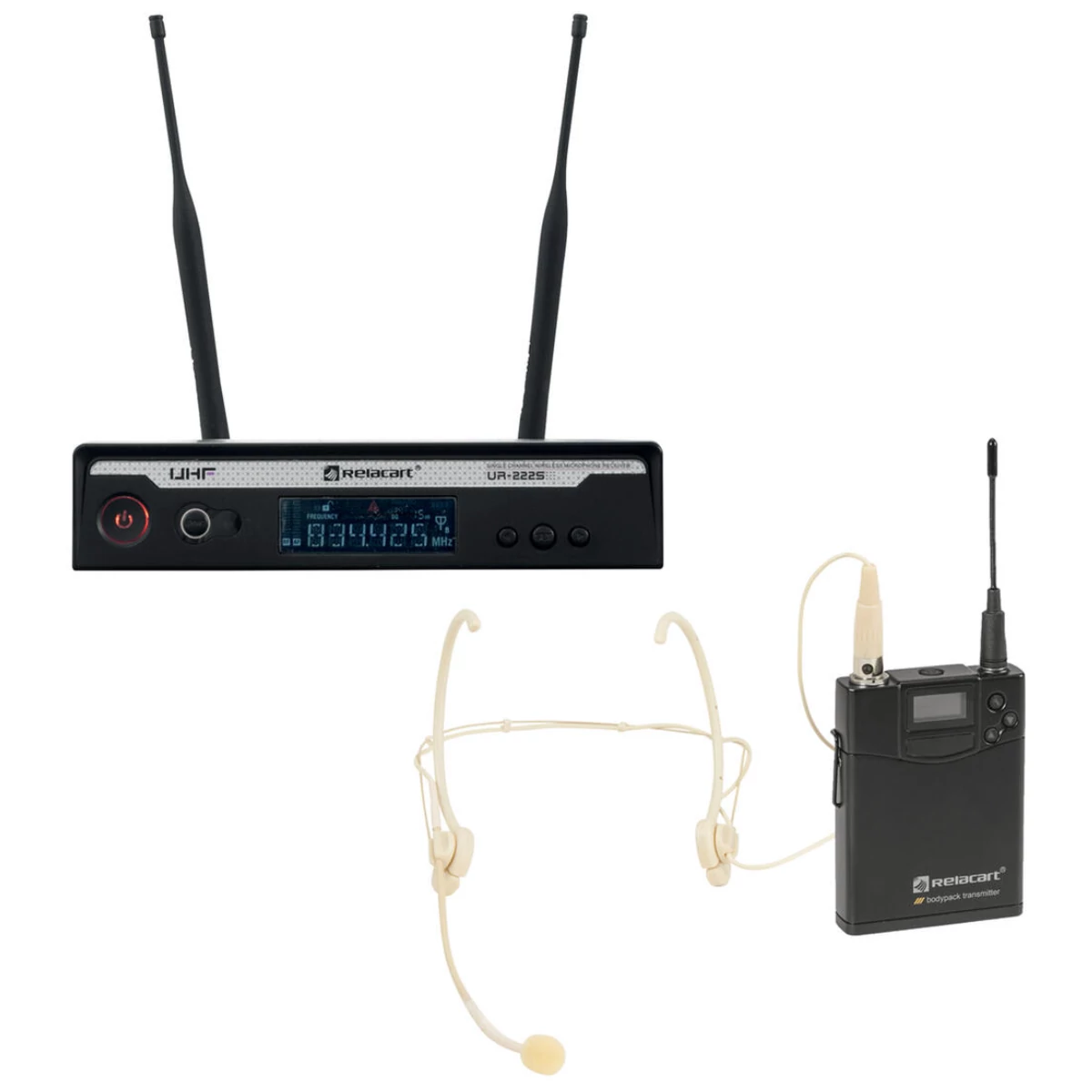

Multifrequency diversity wireless receiver
RELACART UR-222S 1-Channel UHF Receiver
- Multifrequency wireless receiver with high-quality diversity reception
- 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
- Parallel operation of up to 9 systems is possible without any interference
- Pilot frequency squelch technology delete wireless RF interference
- Automatic frequency scan (AFS) finds interference-free channels
- Easy and error-free synchronization between receiver and transmitter via infrared signal
- XLR and 6.3 mm jack output
- 2 detachable BNC antennas allow for use with the R-14D antenna divider
- Delivery includes practical transport bag with jack cable and power adapter
- Multicolor LCD display
- UHF 863 - 865 MHz License-free and approved in europe
- UHF 823 - 832 MHz License-free and approved in large parts of europe
- Operating range up to 80m
- Desktop console housing
- (19") 48.3 cm rack installation possible 1 U
Package contents
- 1 x receiver, 1 x external mains adapter, 2 x antenna, 1 x jack cable, 3 x mounting bracket, 8 x screw, 1 x user manual, 1 x declaration of conformity, 1 x bag
RELACART UT-222 Bodypack with HM-600S Headset
Bodypack transmitter with PLL multifrequency transmitter, 823-832 + 863-865 MHz
- Durable aluminum alloy housing, applicable for touring
- Pilot frequency squelch technology delete wireless RF interference
- 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
- Parallel operation of up to 9 systems is possible without any interference
- Easy and error-free synchronization between receiver and transmitter via infrared signal
- Mute function
- Adjustable input gain
- RF output power Hi/Low adjustable
- Lock function for prevents undesired changes to settings
transmitter
- OLED display
- UHF 823 - 832 MHz License-free and approved in large parts of europe
- UHF 863 - 865 MHz License-free and approved in europe
- Operating range up to 80m
Microphone
- Polar pattern: Omnidirectional
- For further information about this product, please refer to the Data Sheet under "Downloads"
Package contents
- 1 x transmitter, 1 x microphone, 1 x windshield, 1 x user manual, 1 x declaration of conformity
Paraméterek
| Weight | 2,17 kg |
| RELACART UR-222S 1-Channel UHF Receiver | |
| Type | Receiver |
| Power supply | 100-240 V AC, 50/60 Hz |
| 12 V DC 1 A | |
| Power consumption | 3 W |
| Power connection | Mains input via Coaxial power connector (M) mounting version power supply cord with AC adapter (provided) |
| Number of channels | 1 |
| Frequency range | 45 - 18000 Hz |
| S/N ratio | >105 dB |
| THD | <0,7 % at 1 kHz |
| Display type | Multicolor LCD display |
| Display | Charge level , antenna A/B , RF signal level , AF audio level; frequency |
| Control elements | Groundlift selector, menu, navigation keys |
| Connections | Antenna via 2 x BNC (F) 8 V |
| Output | Microphone via 1 x 3-pin XLR (M) mounting version |
| Output | Microphone via 1 x 6.3 mm plug (unbal.) |
| Frequency band | UHF 863 - 865 MHz; UHF 823 - 832 MHz |
| Frequency selection | 90 Switchable frequencys |
| In 10 groups with up to 10 preset frequencies each | |
| Modulation | FM |
| Frequency stability | ± 0,005 % |
| Range | Range up to 80m |
| Switching bandwidth | 11 MHz |
| Switch | On/off switch |
| Diversity | Antenna diversity |
| Material | Metal |
| Color | Black |
| Housing design | Desktop console housing |
| (19") 48.3 cm rack installation possible 1 U | |
| Dimensions | Width:20 cm |
| Depth | 26 cm |
| Height | 4,4 cm |
| Weight | 1,95 kg |
| RELACART UT-222 Bodypack with HM-600S Headset | |
| Weight | 210 g |
| Transmitter | |
| Type | Bodypack with microphone |
| Power supply | 3 V DC |
| Power connection | Battery/battery pack |
| Battery | 2 x Mignon (AA) (not included) |
| Gain | 0 dB |
| -6 dB | |
| -12 dB | |
| Display type | OLED display |
| Control elements | Transmitter power switch (high-low) |
| Connections | Output:Mini XLR (M) 4-pin mounting version |
| Frequency band | UHF 823 - 832 MHz; UHF 863 - 865 MHz |
| Frequency selection | 90 Switchable frequencys |
| In 10 groups with up to 10 preset frequencies each | |
| Modulation | FM |
| RF power output | 10 mW (LO); 40 mW (HI) |
| Range | Range up to 80m |
| Switching bandwidth | 11 MHz |
| Switch | On/off/mute switch |
| Material | Aluminum |
| Color | Black |
| Dimensions | Width:6,6 cm |
| Depth | 2,3 cm |
| Height | 8,4 cm |
| Weight | 174 g |
| Microphone | |
| Type | Headset |
| Power supply | 2-10 V DC |
| Cable length | 1,2 m |
| Capsule type | Condenser |
| Size | Ø 5 mm x 6 mm |
| Polar pattern | Omnidirectional |
| Frequency range | 50 - 18000 Hz |
| Sensitivity | -47 dB |
| Impedance | 1800 Ohm |
| Connector type | Mini XLR (F) 4-pin |
| Color | Skin-colored |
| Weight | 28 g |
