Leírás

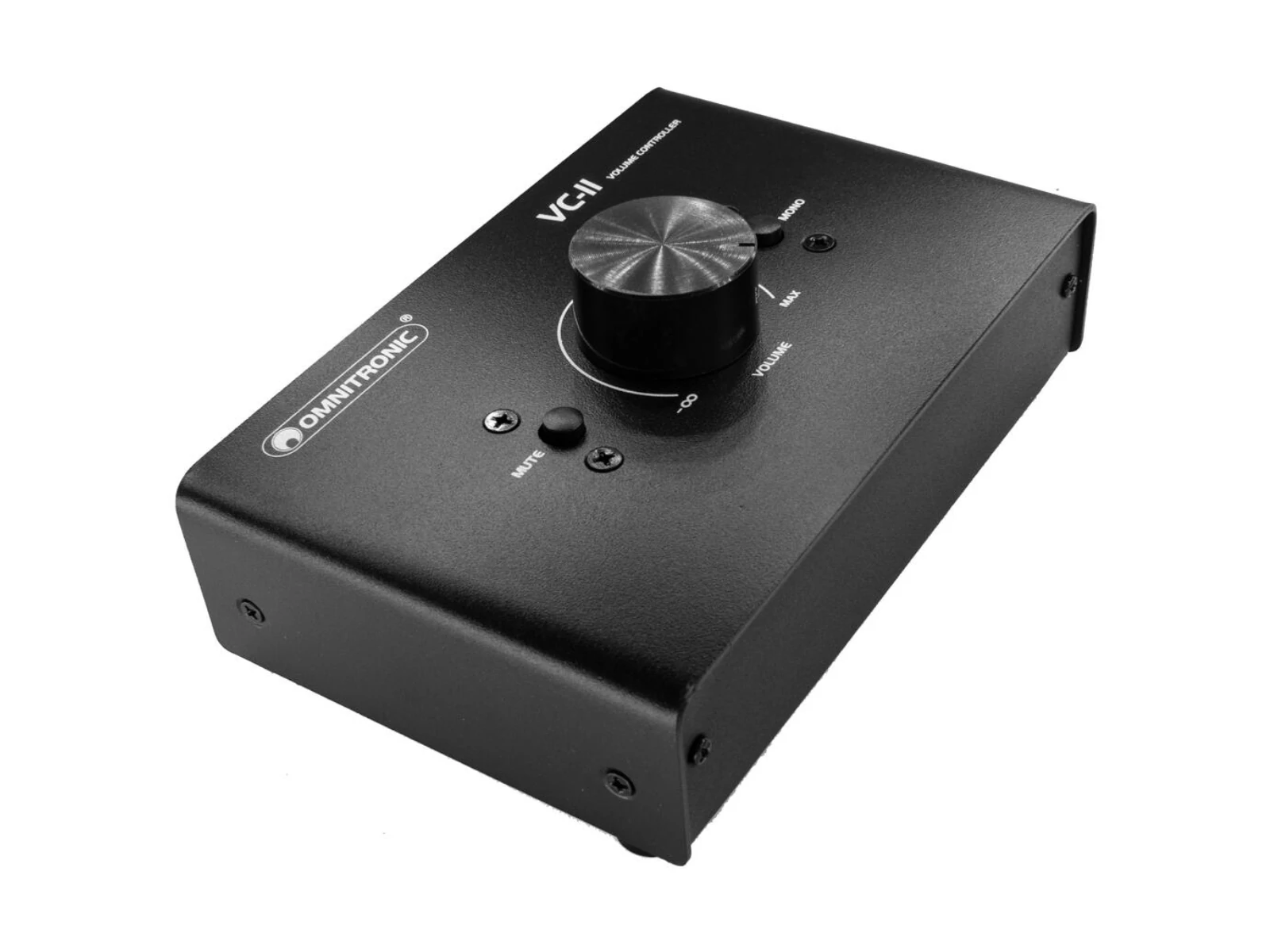

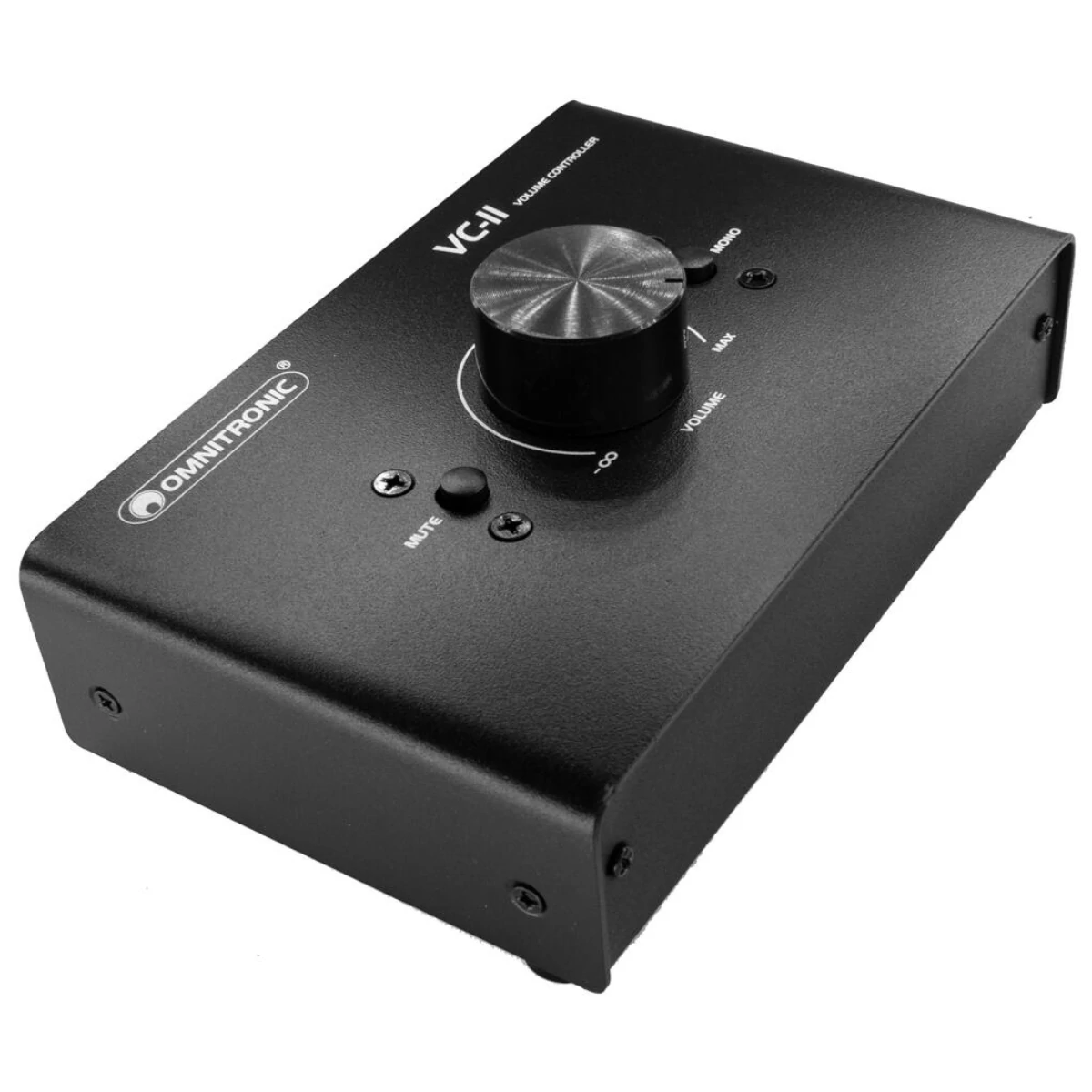

Passive monitor controller with mute and mono summation
- Precise volume control of analog audio signals
- Suitable e.g. between PC sound card and active speakers or amplifiers
- Large rotary level control
- Passive, requires no power supply
- Desktop console housing
Scope of delivery
- 1 x device
Manuals
ManualsParaméterek
| IP classification | IP20 |
| Frequency range | 20 - 20000 Hz |
| Housing color | Black matte |
| Connections | Input:line via 2 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) |
| Input | line via 1 x 3.5 mm jack (stereo) mounting version |
| Output | line via 2 x 6.3 mm jack socket (mono) mounting version |
| Output | line via 1 x 3.5 mm jack (stereo) mounting version |
| Channels | Input chanel:1 x mono + stereo via XLR or jack, stereo/mono switch, mute control |
| Master output | 1 x mono + stereo via jack, channel control via rotary dial |
| Housing design | Desktop console housing |
| Dimensions | Width:16 cm |
| Depth | 10.8 cm |
| Height | 6.3 cm |
| Weight | 0.510 kg |
