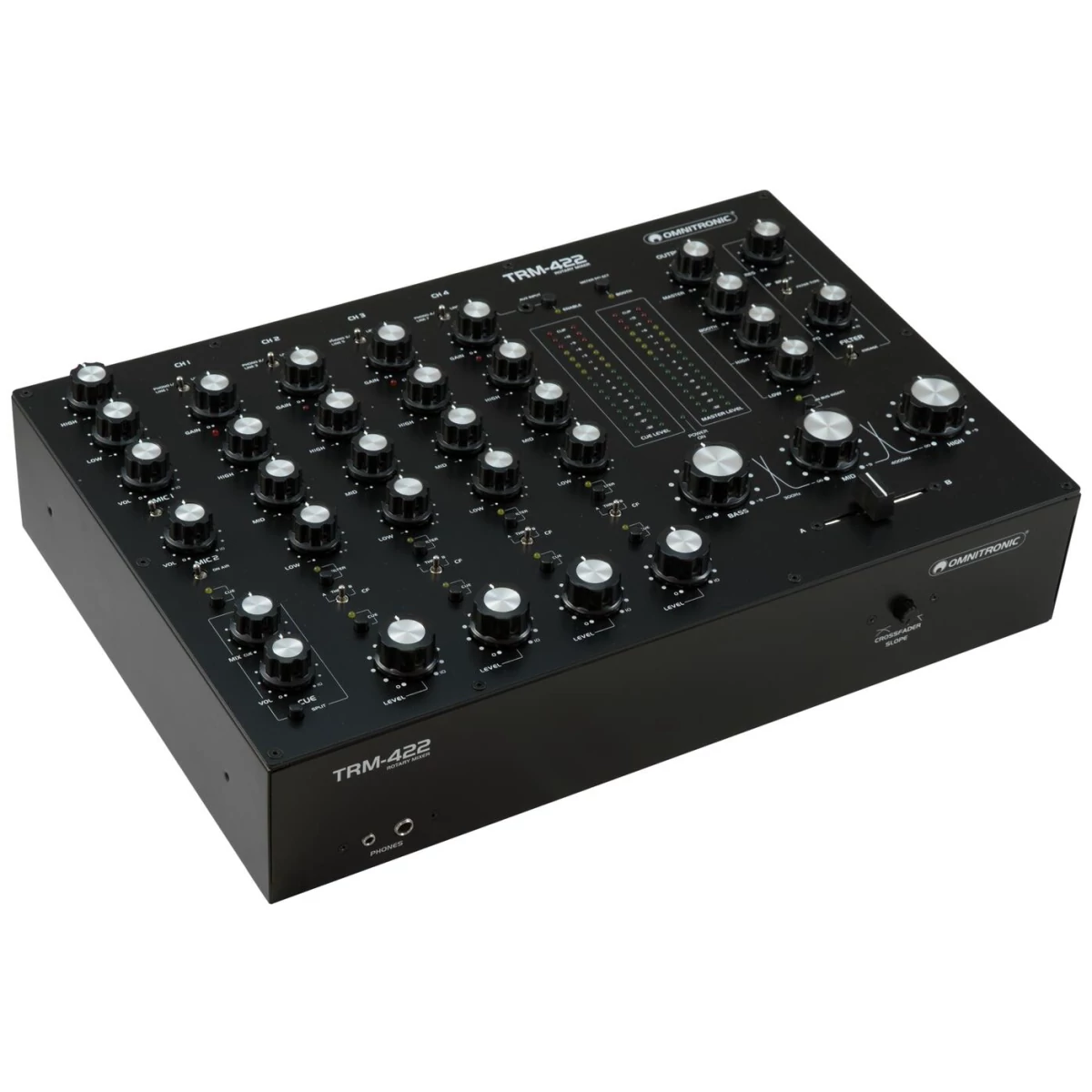

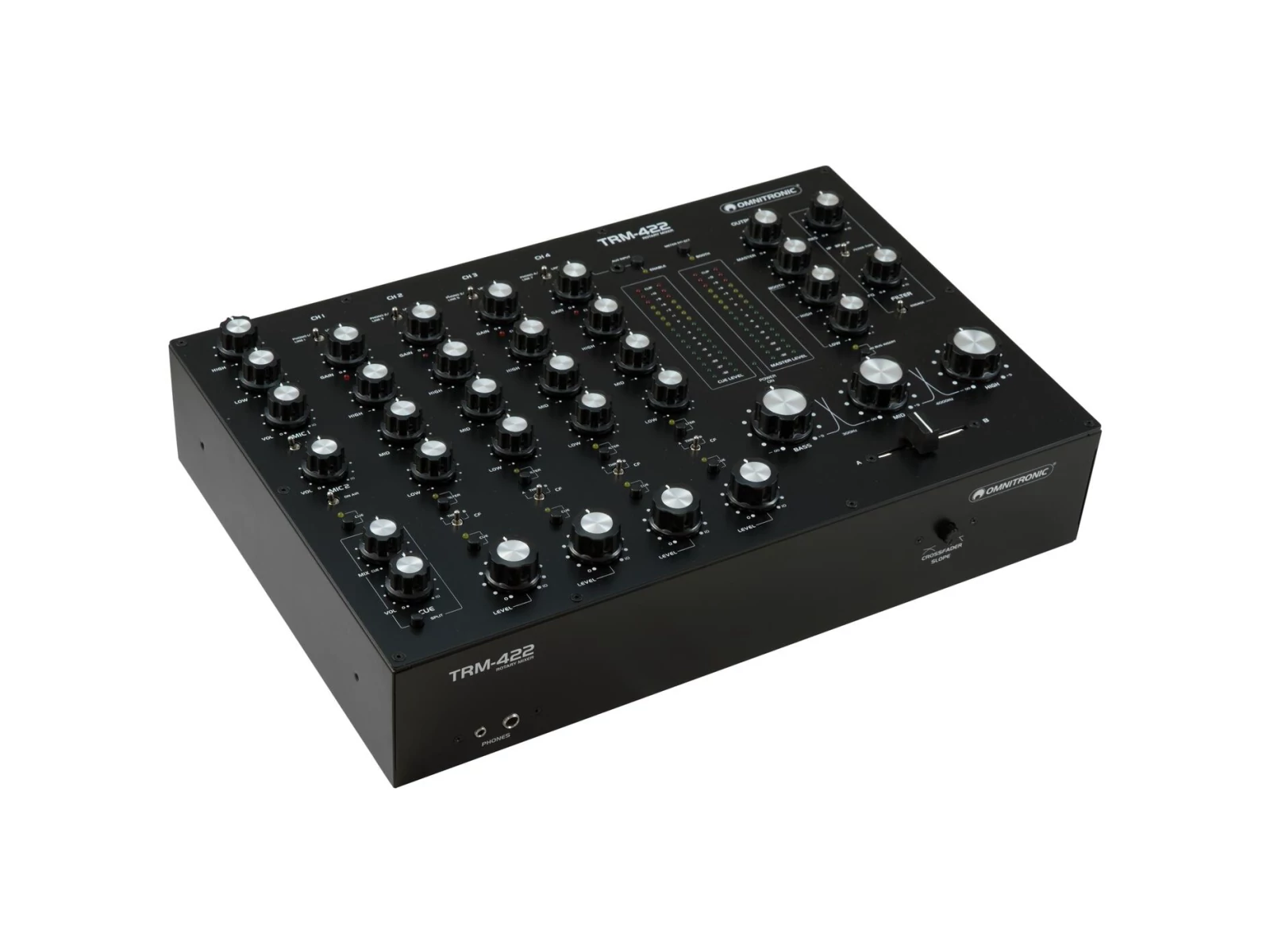

OMNITRONIC TRM-422 4-channel Rotary Mixer

Ha részletfizetéssel vásárolná meg a terméket, helyezze a kosárba, majd a fizetési módnál jelölje be a Cofidis expressz online áruhitelt.

Leírás

4-channel rotary mixer with 3-band frequency isolator and filter section for DJs

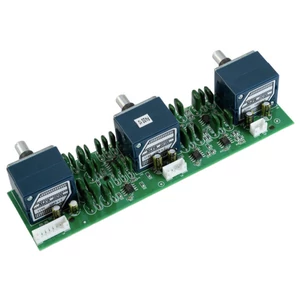

3-band master frequency isolator with vintage ALPS potentiometers (Blue Velvet RK27)
Kill cut feature allows DJs to completely remove low, mid and high frequencies for amazing mixing

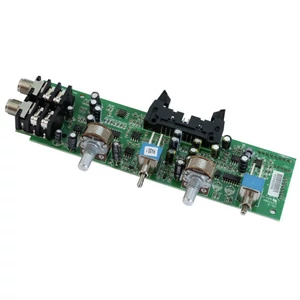

Filter section with resonance and sweep control for creative sound shaping
4 stereo input channels with gain control, clip LED, 3-way equalizer and phono/line switching

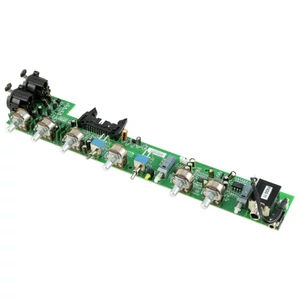

2 microphone input channels with gain control, 2-way equalizer on air switch
High-grade components ensure long life and excellent sound quality

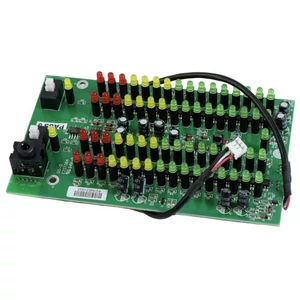

16-digit stereo LED level meter, switchable between master and booth outputs
Booth output with separate 2-way equalizer and level control
PFL section with 16-digit stereo LED level meter, level control, PFL/master mix control and cue mix/split option

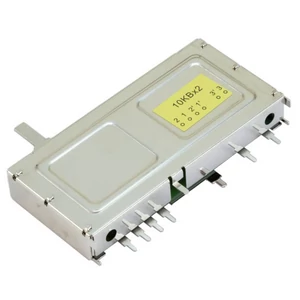

Fully assignable VCA crossfader with adjustable curve
2 effects send/return paths
Direct outputs for Timecode applications
Outputs: master and booth (XLR/RCA L/R), record (RCA L/R), master insert send/return (RCA L/R), FX in/out (stereo jack)
DJ filter LPF, BPF, HPF routable
Desktop console housing
(19") 48.3 cm rack installation possible
For application areas such as: Clubs/dancing school; mobile use; mobile djs / entertainer; homerecording and studios

Scope of delivery

1 x mixer
1 x power cord
2 x mounting bracket
6 x screw
8 x RCA cable
1 x user manual

Manuals

Paraméterek

Power supply	100-240 V AC, 50/60 Hz
Power consumption	24 W
Protection class	Protection class I
Power connection	Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Frequency range	20 - 20000 Hz microphone
20 - 20000 Hz line
40 - 18000 Hz phono
S/N ratio	>97.2 dB line
>91.7 dB microphone
THD	Line <0.04 % at 1 kHz
Phono <0.13 % at 1 kHz
Microphone <0.008 % at 1 kHz
Gain	Microphone 44 dB
Line -16.5 dB to +8.5 dB
Phono -48.5 dB to +23.5 dB
DJ filter	Routable:LPF, BPF, HPF
Isolators	Master Gain:- ∞ bis +9
Low/mid 300 Hz, 18db/oct , Butterworth
Mid/high 4000 Hz, 18db/oct , Butterworth
Housing color	Black
Crosstalk	>-68 dB
Control elements	Power switch, source selector, crossfader, crossfader selector switch, crossfade curve switch; cue mix split function, tone control
Status LED	Power, master level meter, clip, CUE
Connections	Input:line via 4 x stereo RCA
Input	line/phono via 4 x stereo RCA
Input	microphone via 2 x 3-pin XLR
Output	headphones via 1 x 6.3 mm jack socket (stereo) mounting version
Output	headphones via 1 x 3.5 mm jack (stereo) mounting version
Output	rec. via 1 x stereo RCA
Output	booth via 2 x 3-pin XLR
Output	booth via 1 x stereo RCA
Output	master via 2 x 3-pin XLR
Output	master via 1 x stereo RCA
Output	AUX sends via 1 x 6.3 mm jack socket (stereo) mounting version
Output	AUX returns via 1 x 6.3 mm jack socket (stereo) mounting version
Output	Timecode via 4 x stereo RCA
Channels	Input channel:4 x stereo with line-line/phono switch via RCA, channel control via rotary, 3-band tone control EQ, source selector, gain control, CUE switch, FX routing switch, crossfader selector switch
Microphone channel	2 x mono via XLR, channel control via rotary dial, ON AIR switch
Master output	2 x stereo via XLR, channel control via rotary, cue mix split function
Booth output	2 x stereo via XLR, channel control via rotary
Rec. output	1 x stereo via RCA
Headphones output	1 x stereo via jack, channel control via rotary dial
Max. level	Output:+18 dBu
Material	Metal
Housing design	Desktop console housing
(19") 48.3 cm rack installation possible
Dimensions	Width:41 cm
Depth	28.5 cm
Height	10.5 cm
Weight	5.99 kg
