Leírás
4-channel rotary mixer with 3-band frequency isolator and filter section for DJs

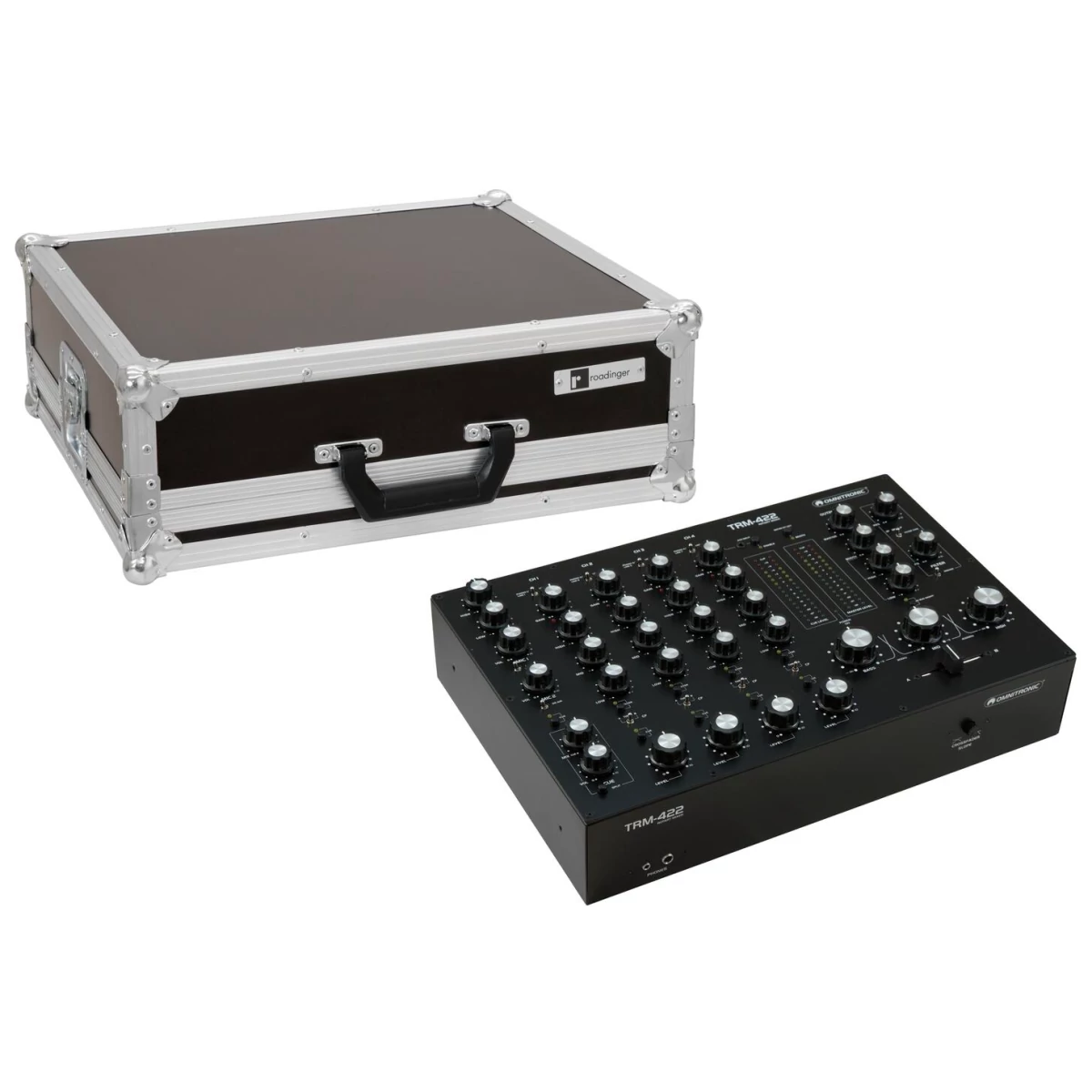

OMNITRONIC TRM-422 4-channel Rotary Mixer
- 3-band master frequency isolator with vintage ALPS potentiometers (Blue Velvet RK27)
- Kill cut feature allows DJs to completely remove low, mid and high frequencies for amazing mixing
- Filter section with resonance and sweep control for creative sound shaping
- 4 stereo input channels with gain control, clip LED, 3-way equalizer and phono/line switching
- 2 microphone input channels with gain control, 2-way equalizer on air switch
- High-grade components ensure long life and excellent sound quality
- 16-digit stereo LED level meter, switchable between master and booth outputs
- Booth output with separate 2-way equalizer and level control
- PFL section with 16-digit stereo LED level meter, level control, PFL/master mix control and cue mix/split option
- Fully assignable VCA crossfader with adjustable curve
- 2 effects send/return paths
- Direct outputs for Timecode applications
- Outputs: master and booth (XLR/RCA L/R), record (RCA L/R), master insert send/return (RCA L/R), FX in/out (stereo jack)
- Desktop console housing
- (19") 48.3 cm rack installation possible
- DJ filter LPF, BPF, HPF routable
- For application areas such as: Clubs/dancing school; mobile use; mobile djs / entertainer; homerecording and studios
Package contents
- 1 x mixer, 1 x power cord, 2 x mounting bracket, 6 x screw, 8 x RCA cable, 1 x user manual
ROADINGER Flightcase TRM-422
Carrying case, PRO version
- High-quality workmanship with birch multiplex 6,5 mm, dark brown, laminated
- Interior with foam padding
cover with foam padding - Removable cover
- Aluminum profile frames 22mm with rounded edges
- Rugged carrying handle
- 2 high-quality spring locks
- Rubber feet
- Branded hardware
- Made in Europe
- For further information about this product, please refer to the Data Sheet under "Downloads"
Paraméterek
| Weight | 10,39 kg |
| OMNITRONIC TRM-422 4-channel Rotary Mixer | |
| Power supply | 100-240 V AC, 50/60 Hz |
| Power consumption | 24 W |
| Protection class | Protection class I |
| Power connection | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Frequency range | 20 - 20000 Hz microphone |
| 20 - 20000 Hz line | |
| 40 - 18000 Hz phono | |
| S/N ratio | >97,2 dB line |
| >91,7 dB microphone | |
| THD | Line <0,04 % at 1 kHz |
| Phono <0,13 % at 1 kHz | |
| Microphone <0,008 % at 1 kHz | |
| Gain | Microphone 44 dB |
| Line -16,5 dB to +8,5 dB | |
| Phono -48,5 dB to +23,5 dB | |
| DJ filter | Routable:LPF, BPF, HPF |
| Isolators | Master Gain:- ∞ bis +9 |
| Low/mid 300 Hz, 18db/oct , Butterworth | |
| Mid/high 4000 Hz, 18db/oct , Butterworth | |
| Housing color | Black |
| Crosstalk | >-68 dB |
| Control elements | Power switch, source selector, crossfader, crossfader selector switch, crossfade curve switch; cue mix split function, tone control |
| Status LED | Power, master level meter, clip, CUE |
| Connections | Input:line via 4 x stereo RCA |
| Input | line/phono via 4 x stereo RCA |
| Input | microphone via 2 x 3-pin XLR |
| Output | headphones via 1 x 6.3 mm jack socket (stereo) mounting version |
| Output | headphones via 1 x 3.5 mm jack (stereo) mounting version |
| Output | rec. via 1 x stereo RCA |
| Output | booth via 2 x 3-pin XLR |
| Output | booth via 1 x stereo RCA |
| Output | master via 2 x 3-pin XLR |
| Output | master via 1 x stereo RCA |
| Output | AUX sends via 1 x 6.3 mm jack socket (stereo) mounting version |
| Output | AUX returns via 1 x 6.3 mm jack socket (stereo) mounting version |
| Output | Timecode via 4 x stereo RCA |
| Channels | Input chanel:4 x stereo with line-line/phono switch via RCA, channel control via rotary, 3-band tone control EQ, source selector, gain control, CUE switch, FX routing switch, crossfader selector switch |
| Microphon chanal | 2 x mono via XLR, channel control via rotary dial, ON AIR switch |
| Master output | 2 x stereo via XLR, channel control via rotary, cue mix split function |
| Booth output | 2 x stereo via XLR, channel control via rotary |
| Rec. output | 1 x stereo via RCA |
| Headphones output | 1 x stereo via jack, channel control via rotary dial |
| Max. level | Output:+18 dBu |
| Material | Metal |
| Housing design | Desktop console housing |
| (19") 48.3 cm rack installation possible | |
| Dimensions | Width:41 cm |
| Depth | 28,5 cm |
| Height | 10,5 cm |
| Weight | 5,74 kg |
| ROADINGER Flightcase TRM-422 | |
| Maximum load | 25 kg |
| Removable covers | 1 pc/pcs |
| Aluminum profile frames | 22 mm |
| Carrying handle | 1 pc/pcs |
| Lock | Spring lock:2 pc/pcs |
| Transport aid | Rubber feet |
| Use of brands | Branded hardware |
| Material | Birch multiplex, 6,5 mm |
| Color | Dark brown, laminated |
| Device compartment | 41 cm x 27,5 cm x 10,5 cm |
| Dimensions | Width:48 cm |
| Depth | 43 cm |
| Height | 17,5 cm |
| Weight | 4,65 kg |
