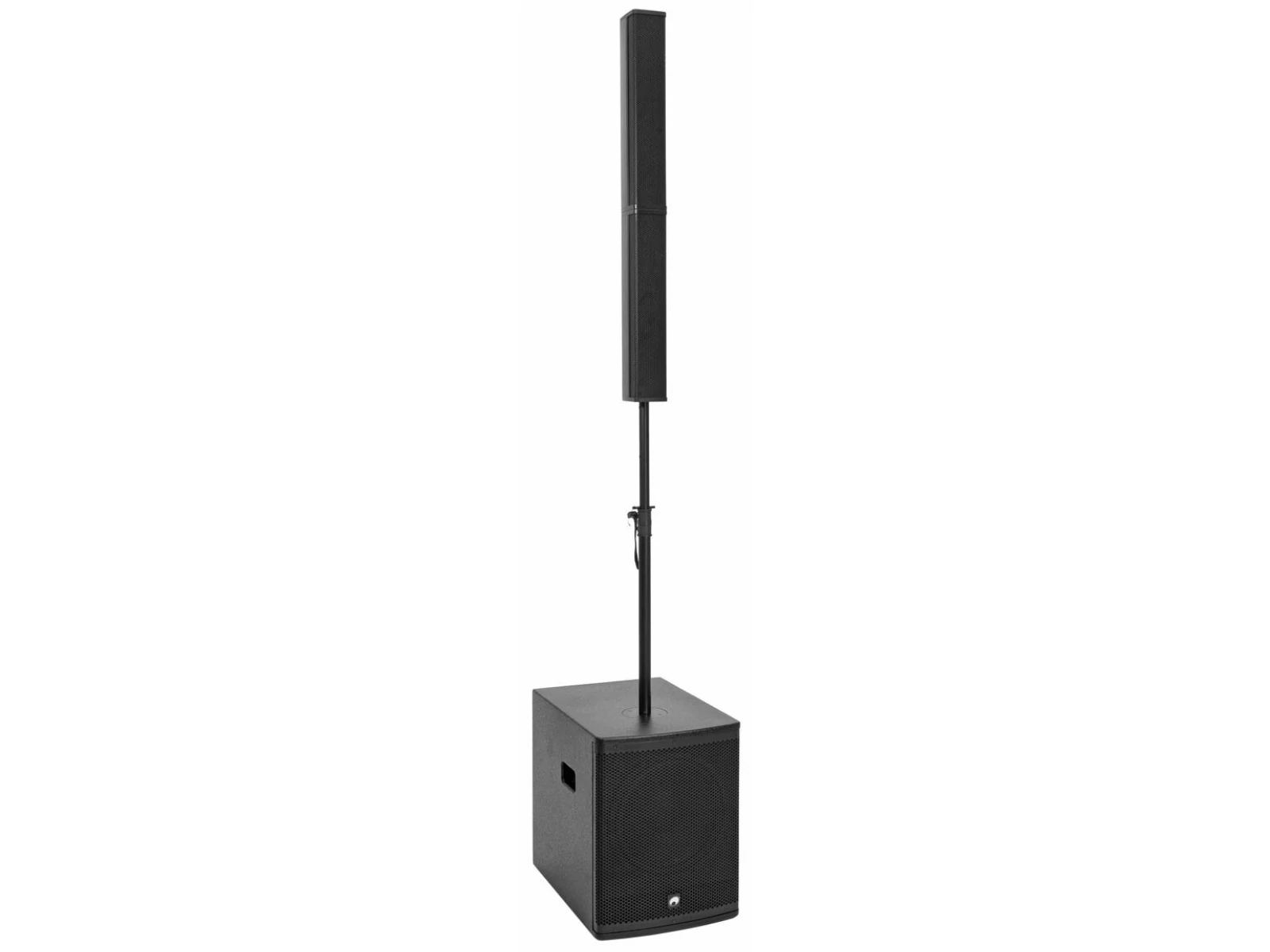

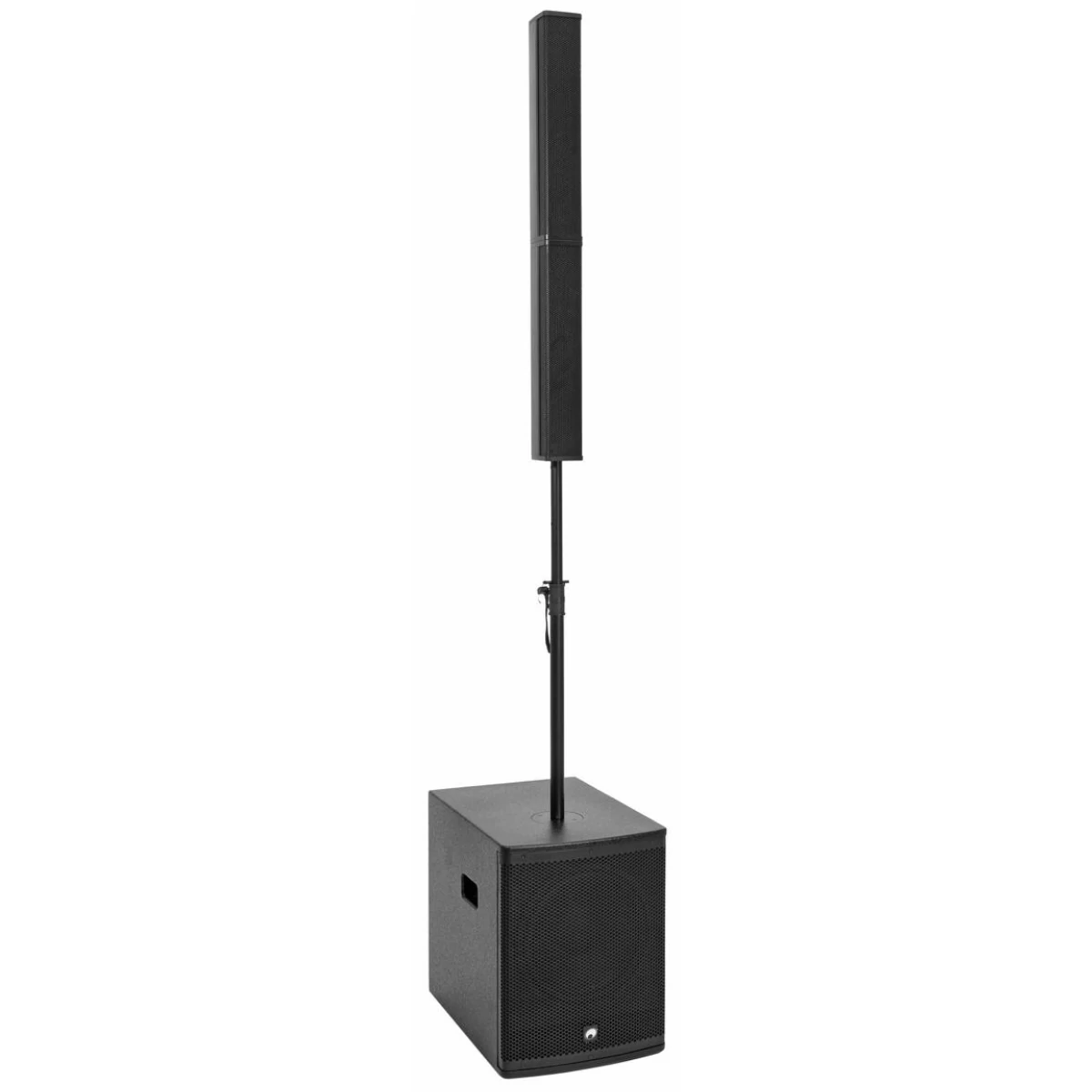

Mobile column PA system with DSP, mixer, stereo Bluetooth link, 800 W RMS
The ROD-1283 is an active PA system with impressive volume reserves and superb audio performance for DJs and musicians on the go. The intelligent design with a 12" subwoofer and satellite speakers allows for a 2.1 setup as well as a full-range speaker setup in mono mode. The satellites can be stacked without cables and be linked to the subwoofer cabinet by means of a smart click mechanism.The integrated amplifier supplies a power of up to 800 watts and is protected with a limiter. The digital 4-channel mixer can be conveniently controlled via a display and encoder. It offers a wide range of inputs to connect your microphone, instrument, keyboard and laptop.The latest Bluetooth technology with TWS support ensures fast and stable wireless connections to Bluetooth audio sources and links two ROD systems for stereo setups. The practical EQ presets are used for quick and application-specific sound contouring.
- Multiband Compressor; Multistep Limiter; Active Phase Correction; Delay Compensation; 3-band EQ
- 4-channel mixer
- 2.1 stereo mode or 1.1 mono mode with stacked modules
- Stereo Bluetooth link for wireless stereo operation with 2 systems linked together
bass
- Black metal grille with acoustic foam
- 2 recessed carrying handles
- 4 x plastic feet
integrated amplifier module
- Digital signal processor
- DSP presets: MUSIC; LIVE; SPEECH; 80 Hz low cut; FLAT
- Multicolor LCD display
- Control via Bluetooth
- Bluetooth: operating range up to 10m in buildings
- The device is cooled by low-noise cooling fan
Package contents
- 1 x bass, 2 x top, 1 x distance tube, 1 x power cord, 2 x speaker cable, 2 x tie strap, 1 x user manual, 1 x declaration of conformity
Manuals
ManualsParaméterek
| Output power | 800 W RMS system |
| Frequency range | 40 - 20000 Hz system |
| Max. SPL | 128 dB system |
| DSP | Multiband Compressor; Multistep Limiter; Active Phase Correction; Delay Compensation; 3-band EQ |
| Weight | 25.90 kg |
| Bass | |
| Frequency range | 40 - 150 Hz |
| Impedance | 1 x 4 ohms bass |
| Attachment system | M20 thread |
| Speaker | 1 x woofer 12" with ferrit magnet |
| Basket material | steel |
| Voice coil lows 2.5" | |
| Conematerial | cardboard/paper |
| Type of speaker | Subwoofer |
| Type of construction | Vented |
| Recessed carrying handle | 2 pc/pcs |
| Transport aid | 4 x plastic feet |
| Material | MDF (medium density fiberboard), painted |
| Color | Black, textured coating |
| Material thickness | 16 mm |
| Dimensions | Width:37 cm |
| Depth | 52 cm |
| Height | 48 cm |
| Weight | 22.5 kg |
| Integrated amplifier module | |
| Power supply | 230 V AC, 50 Hz |
| Power consumption | Max. 400 W |
| Output power | 1 x 500 W RMS LF |
| 2 x 150 W RMS (8 ohms) HF | |
| 1 x 300 W RMS (4 ohms) HF | |
| Power connection | Mains input via IEC connector (M) mounting version power supply cord with safety plug included |
| Device fuse | 5 x 20 mm, T 3.15 A fuse replaceable |
| DSP | Digital signal processor |
| DSP presets | MUSIC; LIVE; SPEECH; 80 Hz low cut; FLAT |
| Cooling | 1 x low-noise cooling fan |
| Filter | Low cut:80 Hz |
| Control | Bluetooth |
| Bluetooth | Version:5.3 with stereo link (TWS) |
| Bluetooth device name | ROD-1283 |
| Range | Bluetooth:range up to 10m in buildings |
| Carrier frequency | 2.4 GHz |
| Circuitry | Class D |
| Display type | Multicolor LCD display |
| Control elements | Power switch, encoder, menu, BACK button |
| Controls | Overheat; short-circuit; DC voltage; limiter |
| Status LED | Limit |
| Connections | Input:mic/line via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) |
| Input | line via 2 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) |
| Input | line via 1 x stereo RCA |
| Output | line via 1 x 3-pin XLR (M) mounting version |
| Output | top via 2 x speaker built-in socket (F) |
| Crossover frequency | 150 Hz |
| Top | |
| Power | Program:160W |
| Rated | 80W AES |
| Frequency range | 150 - 20000 Hz |
| Sensitivity | 90 dB (1W/1m) |
| Dispersion angle | 100° x 20° |
| Impedance | 8 ohms top |
| Attachment system | Flange:Ø 25mm |
| Connections | Input:top via 1 x speaker built-in socket (F) |
| Link | special connector |
| Speaker | 4 x full range loudspeaker 3" with neodymium magnet |
| Basket material | steel |
| Voice coil full range loudspeaker 0.75" | |
| Conematerial | cardboard/paper |
| Type of speaker | Column speaker |
| Type of construction | Closed Box |
| Material | Plastic hard |
| Color | Black |
| Dimensions | Width:8.5 cm |
| Depth | 10.5 cm |
| Height | 45 cm |
| Weight | 1.50 kg |
| Distance tube | |
| Height | Maximum:95 cm |
| Minimum | 59 cm |
| Adjustable in 4 steps with locking pin | |
| Type (general stands) | Speaker stand/manual |
| Material | Steel, painted |
| Power cord | |
| Cable construction | 3 x 0.75 mm² H05VV-F |
| Cable length | 1.8 m |
| Speaker cable | |
| Cable construction | 2 x 0.75 mm² speaker cable |
| Cable length | 2 m |
| 5 m | |
