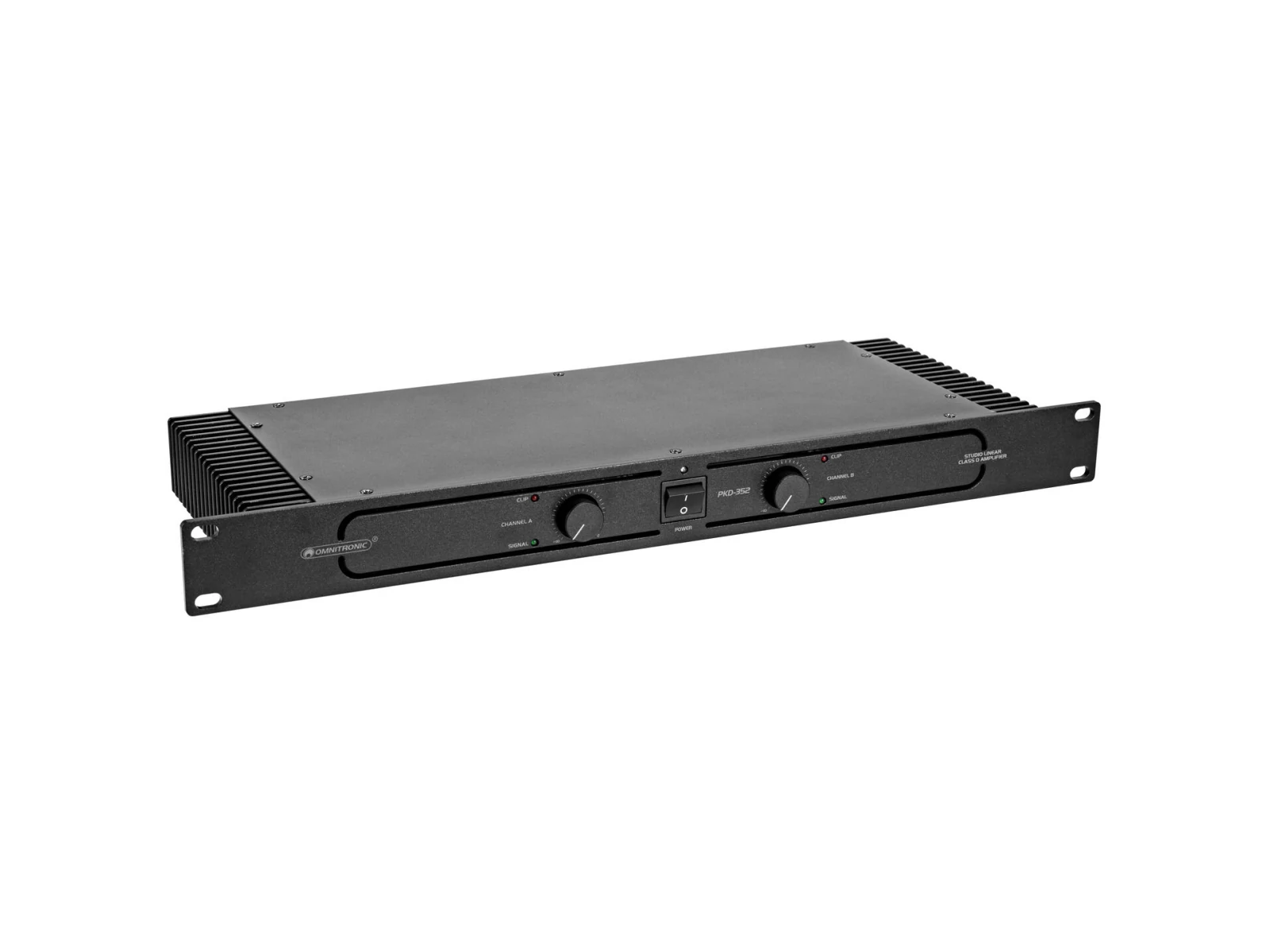

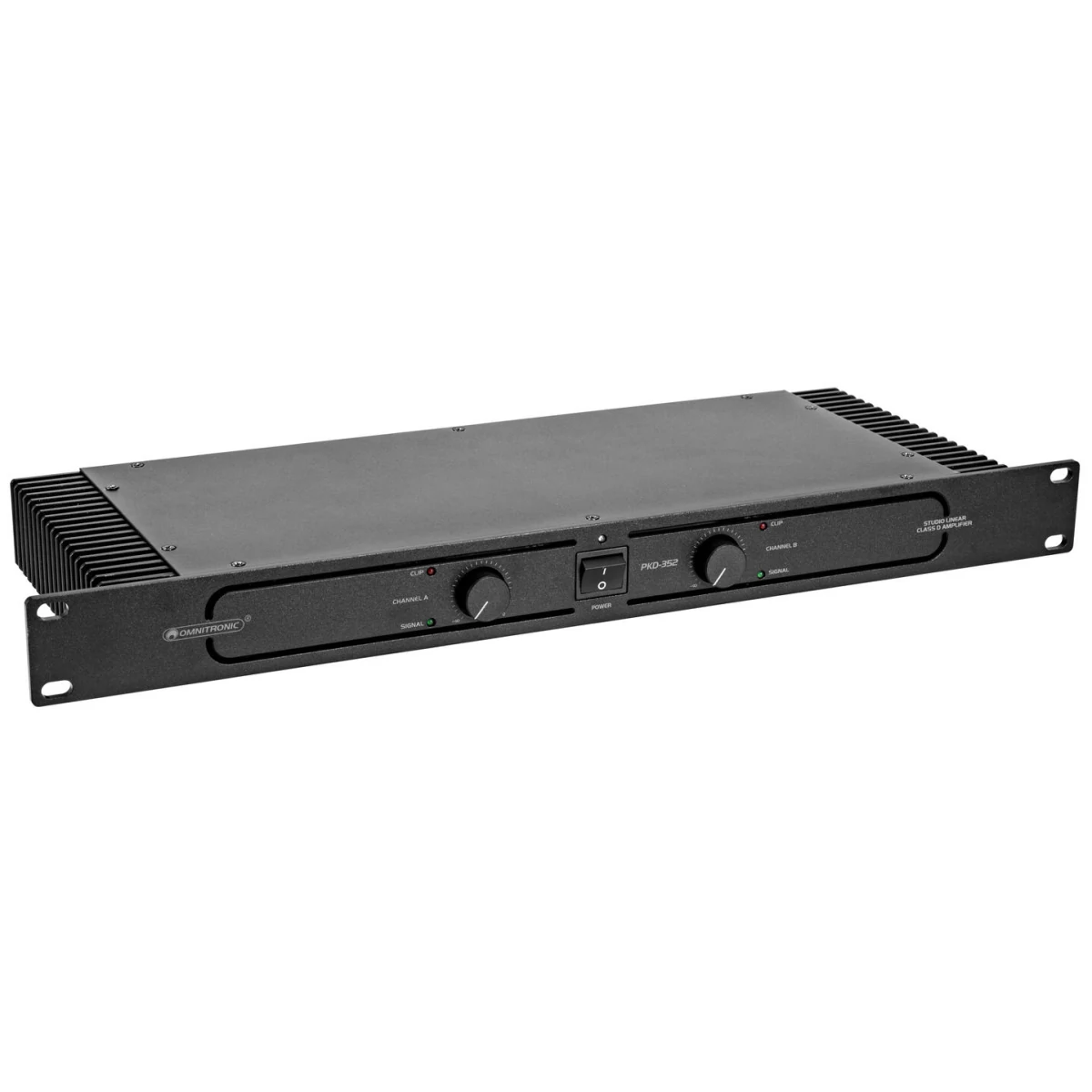

OMNITRONIC PKD-352 Class D Studio Amplifier

94.900 Ft 79.900 Ft (62.913 Ft + ÁFA)
Menny.:db
Szállítási díj: Ingyenes
Garancia: 2 év garancia
Raktárkészlet: Raktáron
Cikkszám: 10451616
Ha részletfizetéssel vásárolná meg a terméket, helyezze a kosárba, majd a fizetési módnál jelölje be Cetelem Online Áruhitelt.

Leírás

2-channel studio amplifier with SMPS, 2 x 175 W / 4 ohms, 2 x 100 W / 8 ohms

  • Low weight and height due to integrated switch mode power supply
  • 2 operating modes can be selected (stereo or bridged)
  • 2 level controls
  • Electronically balanced inputs via XLR mounting jacks, with XLR feed-through outputs
  • Speaker outputs via lockable Speaker plugs
  • The device is cooled by passive convection cooling
  • (19") 48.3 cm rack installation 1 U
  • For application areas such as: Installation; homerecording and studios; restaurants, bars and hotels; sports centres/gyms

Package contents

  • 1 x amplifier, 1 x power cord, 1 x user manual

Manuals

Manuals

Paraméterek

Power supply 230 V AC, 50 Hz
Power consumption 70 W 1/8 power
Protection class Protection class I
Output power 2 x 175 W RMS (4 ohms); 2 x 100 W RMS (8 ohms); 350 W RMS bridged (8 ohms)
Power connection Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Cable length 1 m detachable
Device fuse 4 x 10 mm, T 3,15 A Fuse fix on board
Frequency range 20 - 20000 Hz
S/N ratio >105 dB
THD <0,05 % at 1 kHz
Cooling Passive convection cooling
Impedance Input:20 kOhm , bal.
Input 10 kOhm , unbal.
Gain 38 dB
Housing color Black
Circuitry Class D
Slew rate 20 V/µs
Damping factor >300
Control elements Power switch, level control per channel, mode switch (stereo/bridged), Input sensitivity switch
Controls Softstart; DC voltage; VHF; current limiting; short-circuit; limiter; overheat
Status LED Power, signal, clip
Connections Input:line via 2 x 3-pin XLR
Input line via 2 x RCA (F) mounting version
Output speaker via 2 x speaker built-in socket (F)
Output speaker via 2 x screw terminal
Input sensitivity 0,775 V; 1,4 V , switchable
Housing design (19") 48.3 cm rack installation 1 U
Dimensions Width:48,3 cm
Depth 19 cm
Height 4,4 cm
Weight 2,81 kg
