Leírás

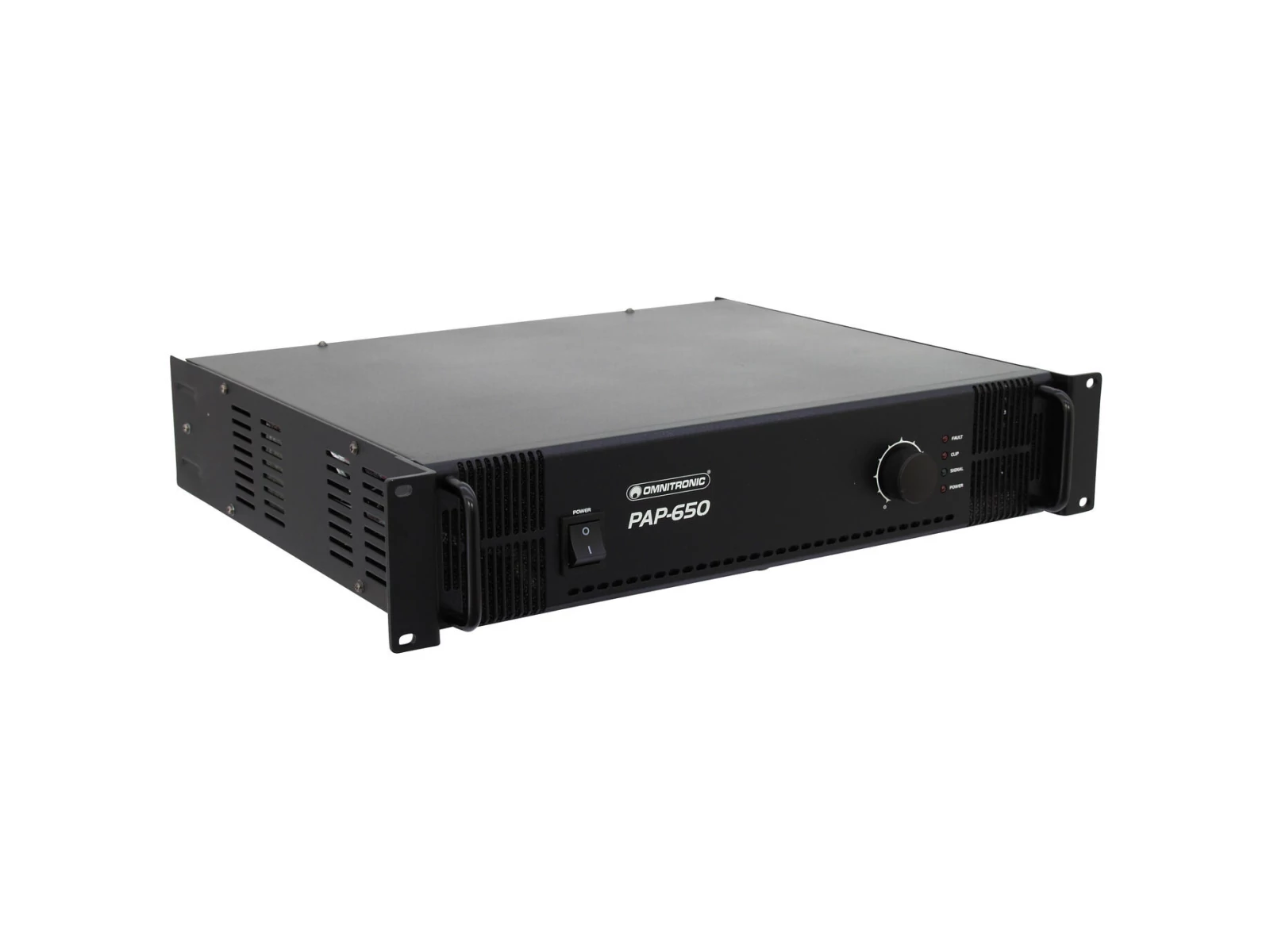

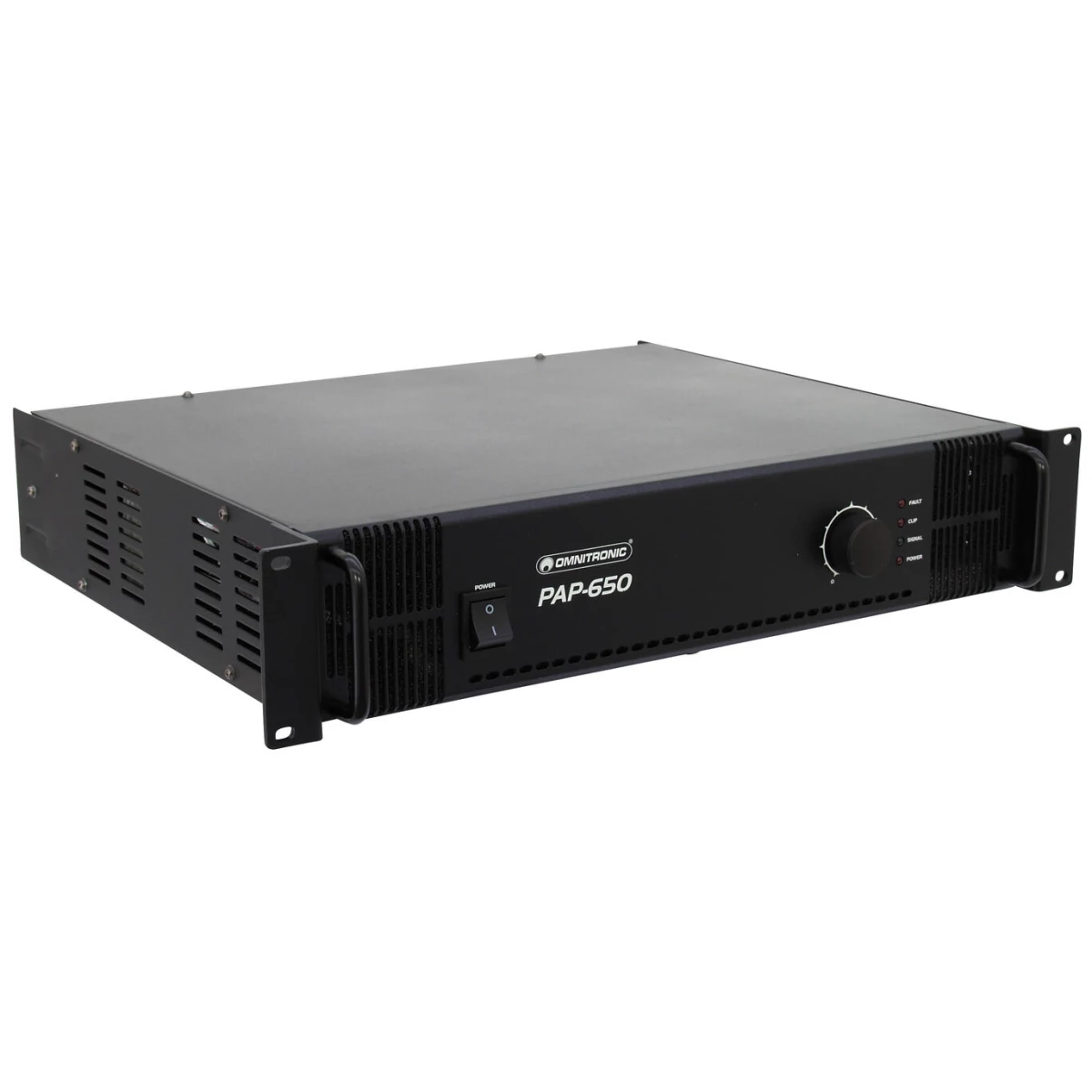

PA power amplifier, 650 W RMS
- 1 line input (optionally XLR or 6.3 mm jack)
- 1 feed-through output (optionally XLR or 6.3 mm jack)
- Master control
- LED indicators for power, level, clip and fault
- Load detection and power control
- (19") 48.3 cm rack installation 2 U
- Highly efficient air flow from front to rear
- The device is cooled by temperature-controlled fan
- For application areas such as: Installation; restaurants, bars and hotels; sports centres/gyms
Scope of delivery
- 1 x amplifier
- 1 x user manual
Manuals
ManualsParaméterek
| Power supply | 230 V AC, 50 Hz |
| Protection class | Protection class I |
| Output power | 650 W RMS |
| Power connection | Fixed power supply cord with safety plug |
| Cable length | 1.2 m |
| Device fuse | 5 x 20 mm, T 8 A fuse replaceable |
| Frequency range | 80 - 16000 Hz |
| S/N ratio | >90 dB line |
| THD | <0.5 % at 1 kHz |
| Cooling | 1 x temperature-controlled fan , air flow from front to rear |
| Impedance | 4-16 ohms; public address systems 100V; Public address systems 70V |
| Housing color | Black |
| Circuitry | Class AB |
| Control elements | Power switch, level control |
| Controls | Softstart; overheat; overload; short-circuit; DC voltage |
| Status LED | Signal, power, fault, clip |
| Connections | Input:line via 1 x 6.3 mm jack socket (mono) mounting version |
| Input | line via 1 x 3-pin XLR 0.3 V |
| Output | line via 1 x 6.3 mm jack socket (mono) mounting version |
| Output | line via 1 x 3-pin XLR |
| Output | speaker via 4 x screw terminal |
| Housing design | (19") 48.3 cm rack installation 2 U |
| Dimensions | Width:48.3 cm |
| Depth | 38.5 cm |
| Height | 8.9 cm |
| Weight | 15.00 kg |
