Leírás

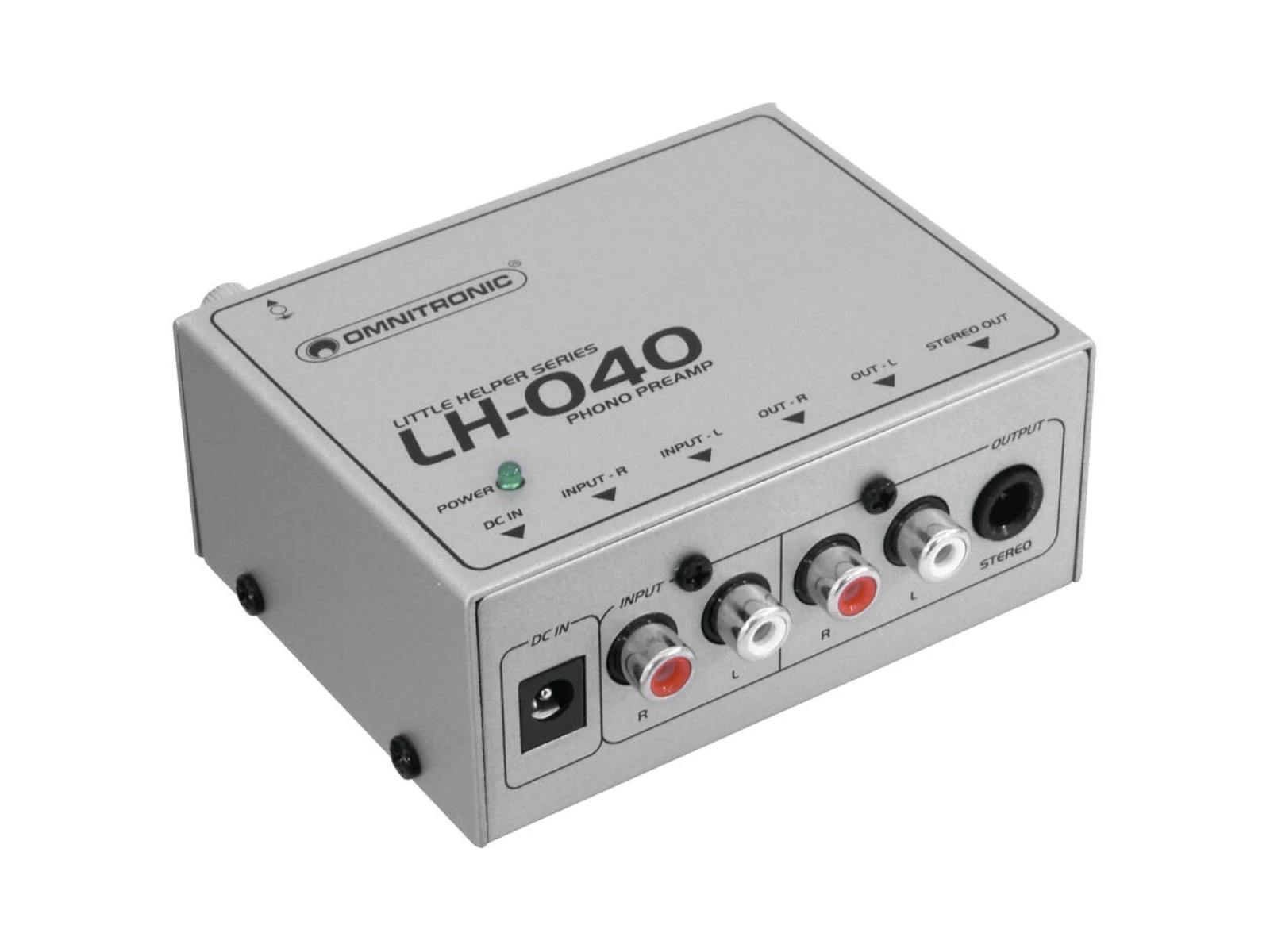

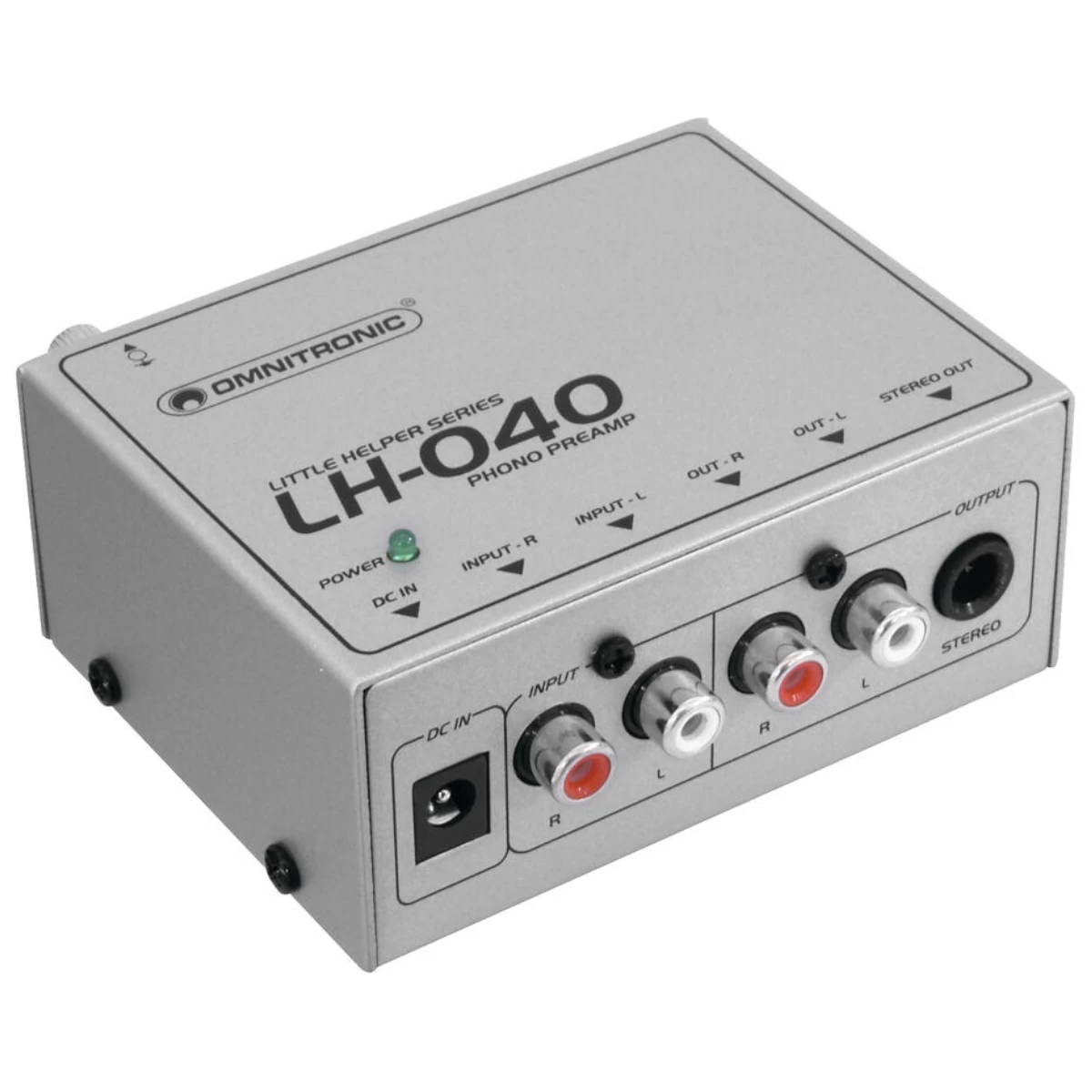

1-channel stereo phono preamplifier
- RIAA-preamplifier for connecting a turntable via stereo RCA sockets
- RCA output for connecting stereos or active speakers
- Can be connected directly with the power amplifier via jack socket
- Ground terminal for avoiding hum
- For application areas such as: Installation; mobile use; mobile djs / entertainer
Package contents
- 1 x device, 1 x external mains adapter, 4 x foot, 1 x user manual
Manuals
ManualsParaméterek
| Power supply | 100-240 V AC, 50/60 Hz |
| 12V DC 150 mA | |
| Pin configuration | Inside - / outside + |
| Power connection | Mains input via coaxial power connector (M) mounting version power supply cord with AC adapter (provided) |
| Frequency range | 20 - 20000 Hz |
| S/N ratio | >84 dB |
| THD | <0.02 % at 1 kHz |
| Impedance | Input:47 kOhm |
| Gain | 30 dB |
| Connections | Input:phono via 1 x stereo RCA |
| Output | line via 1 x stereo RCA |
| Output | line via 1 x 6.3 mm jack socket (stereo) mounting version |
| Max. level | Output:+4 V |
| Material | Metal |
| Color | Silver |
| Dimensions | Width:9.5 cm |
| Depth | 8.9 cm |
| Height | 4 cm |
| Weight | 0.46 kg |

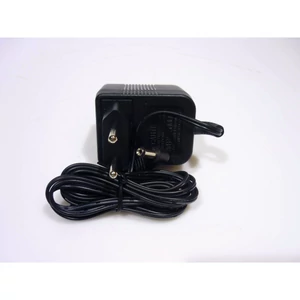

| External mains adapter | |
| Power supply | 100-240 V AC, 50/60 Hz |
