Leírás

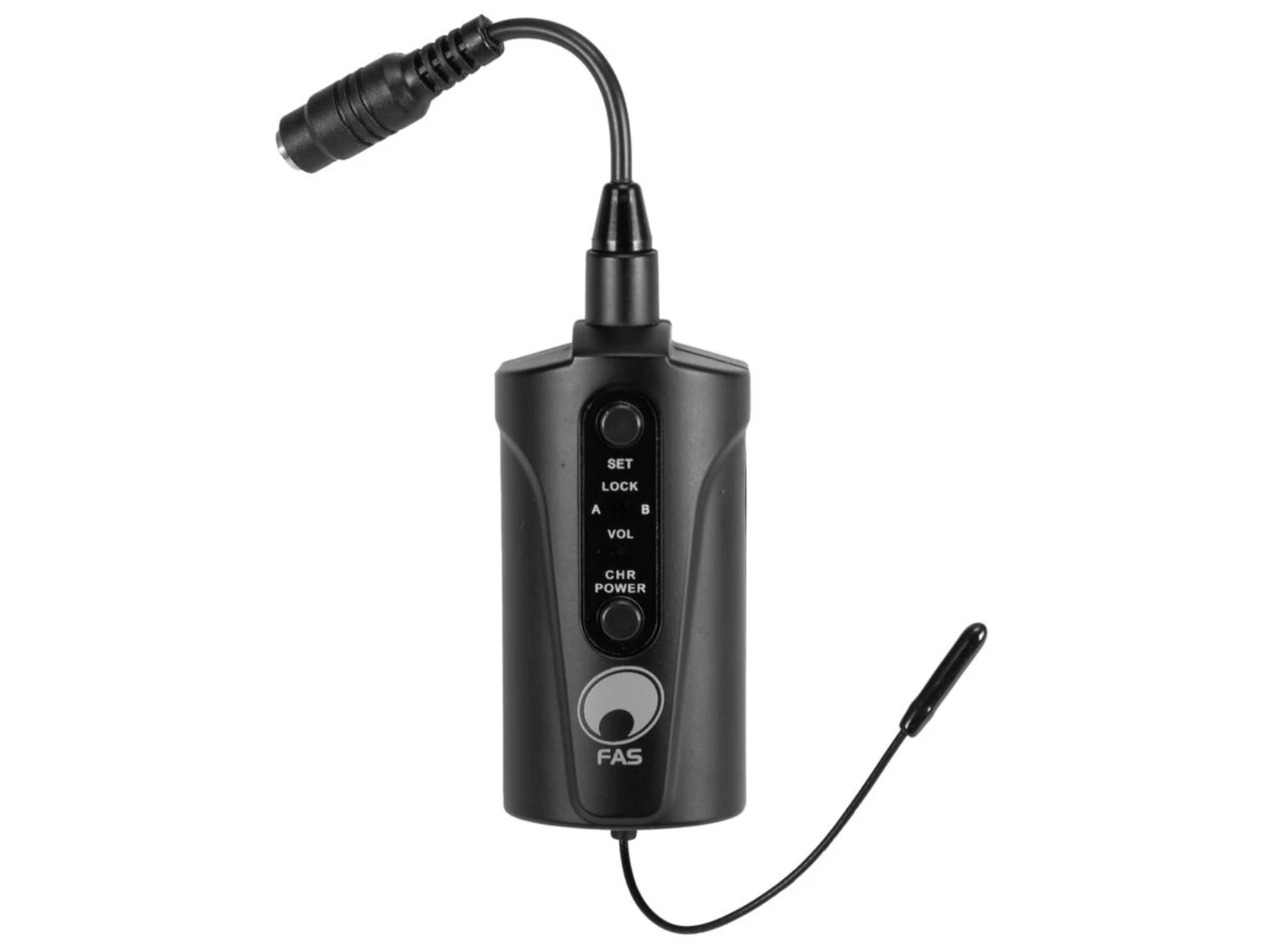

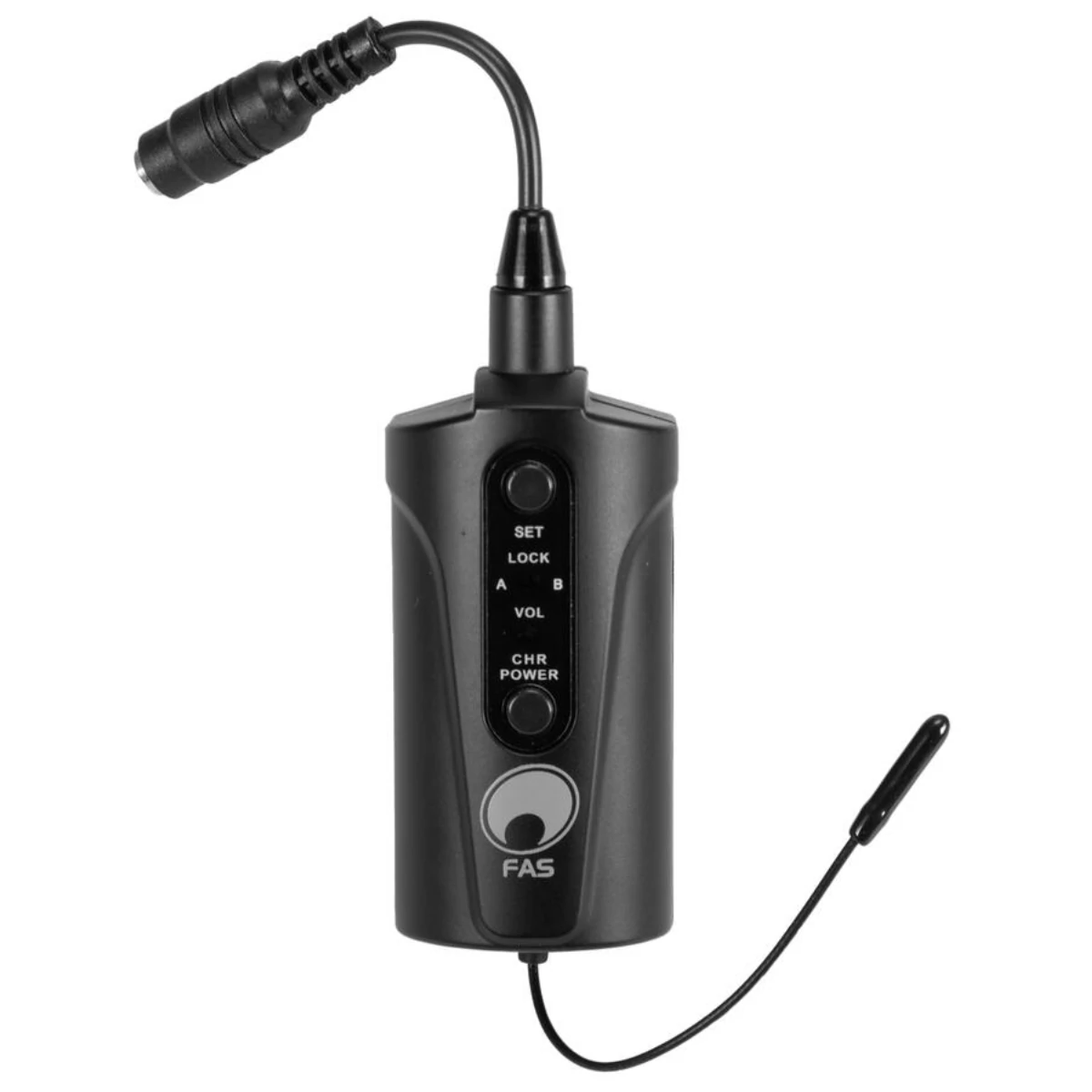

Minature bodypack transmitter for FAS-TWO receiver
- Digital transmission provides for high resistance to interference and unique sound quality
- Ultra-low latency
- Quick pairing at the touch of a button
- Receiver automatically adopts frequency setting
- 2 frequency banks with 20 adjustable frequencies each available
- Small lightweight version
- Battery operation up to 5h
- Operating range up to 30m with line-of-sight
- Wide range of microphones available for numerous applications
- Cordless, flexible and versatile
- UHF 660 - 690 MHz License-free and approved in large parts of Europe
Package contents
- 1 x transmitter, 1 x user manual, 1 x declaration of conformity
Manuals
ManualsParaméterek
| Type | Pocket transmitter |
| Power supply | 5V DC 1000 mA |
| Power connection | Mains input via USB C (W) mounting version |
| Battery/battery pack built-in | |
| Battery pack type | 1 x lithium ion 3,7 V, 600 mAh, 2,2 Wh |
| Battery pack | Battery operation up to 5h |
| Number of channels | 1 |
| Range | Range up to 30m with line-of-sight |
| Frequency band | UHF 660 - 690 MHz |
| RF power output | 10 mW |
| Modulation | Pi/4 DQPSK |
| Frequency selection | 40 |
| In 2 groups | |
| Frequencies automatically scannable | |
| Switchable frequencies | |
| Status LED | Power |
| Connections | Input:mic/line via 1 x 3.5 mm jack (stereo) mounting version |
| Max. level | Input:mono -1,5 dBu, unbal. |
| Material | Plastic |
| Color | Black |
| Dimensions | Length:21 cm |
| Width | 3,05 cm |
| Height | 2,9 cm |
| Weight | 0,034 kg |
