Leírás

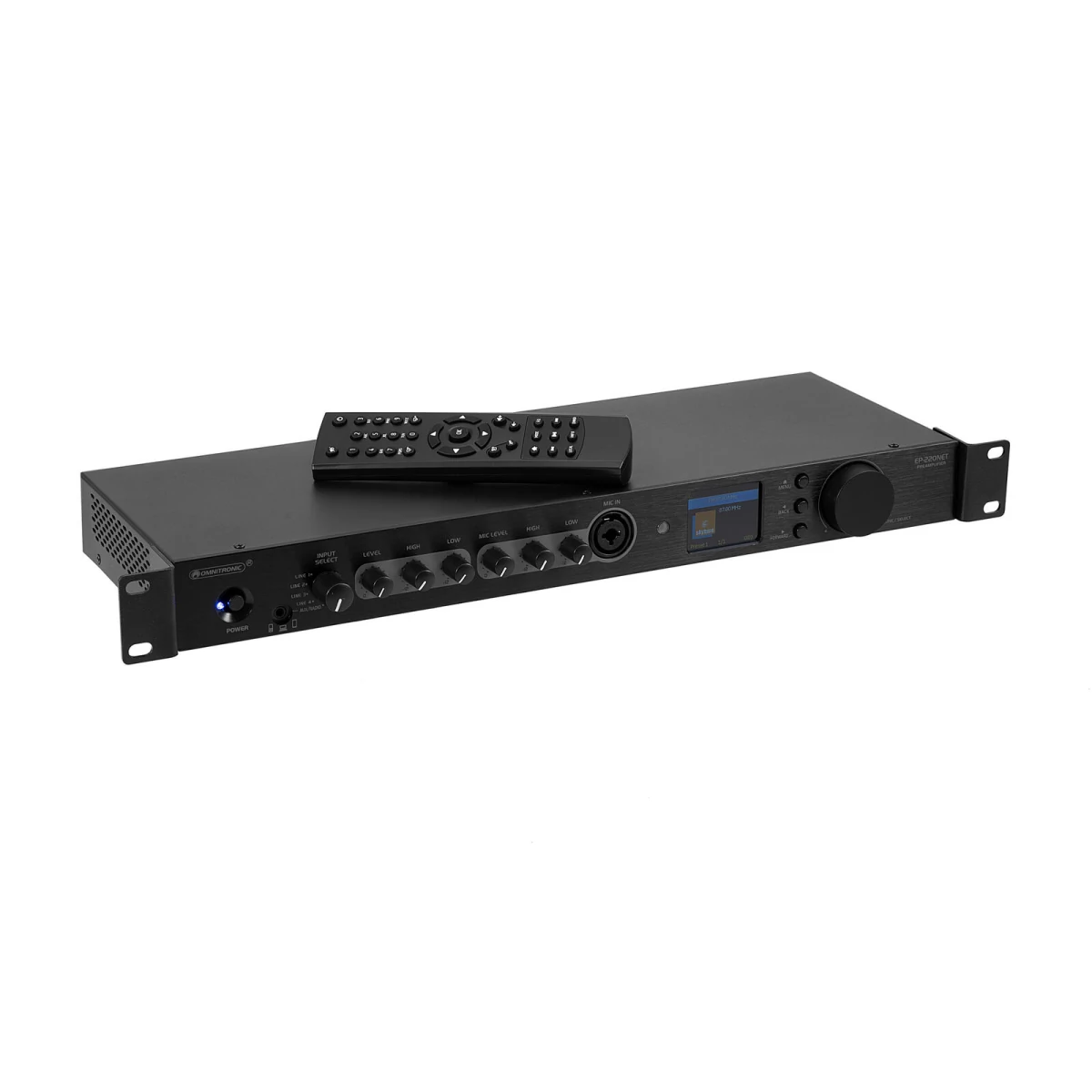

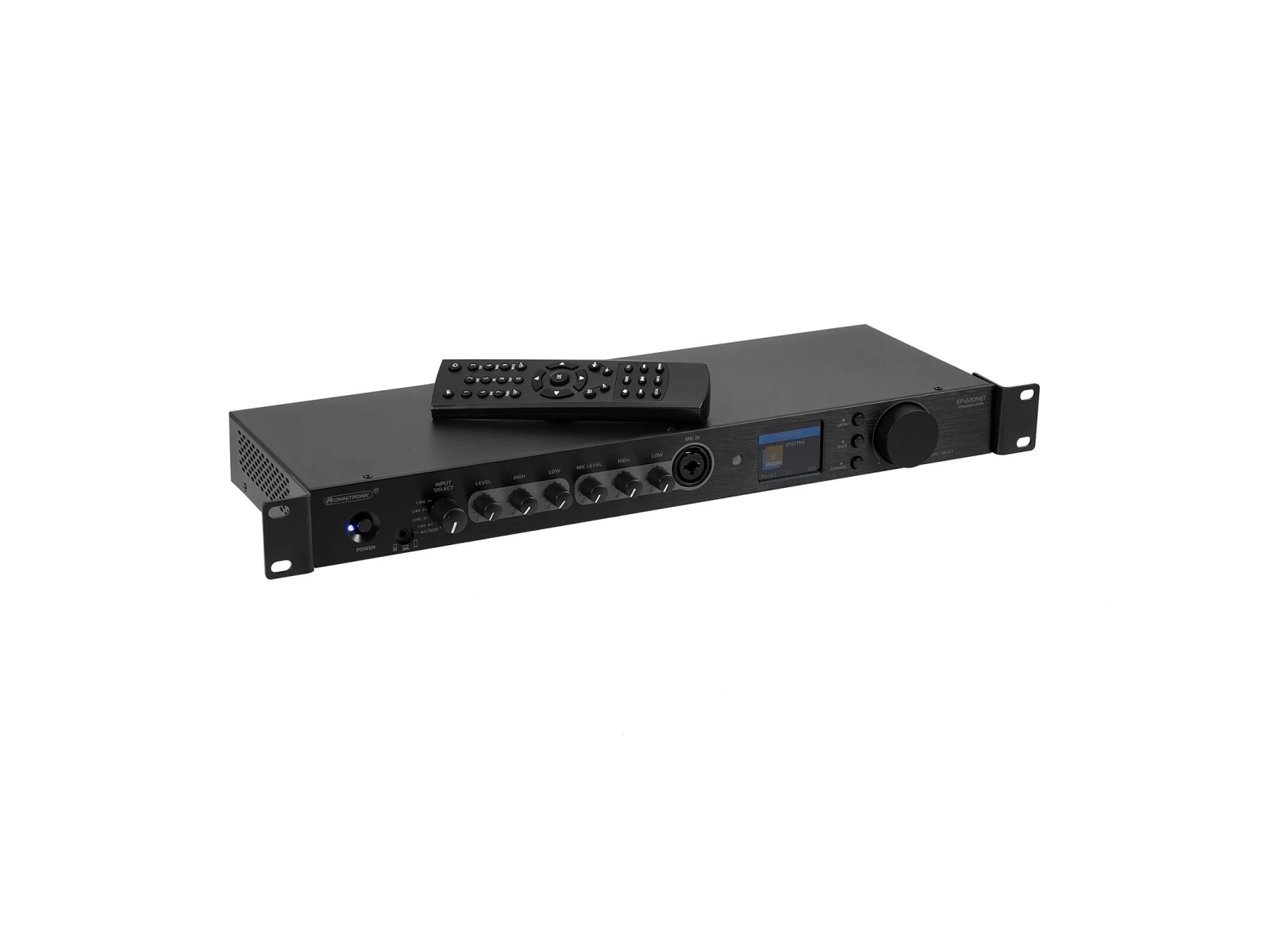

19" preamplifier mit Internetradio, DAB+, Bluetooth and IR remote control
- Internet radio with DAB+ and FM tuner, Bluetooth and UPnP/DLNA support
- Wide range of streaming options via WLAN, LAN jack and Bluetooth
- Large 2" TFT color display, easy jog dial operation, equalizer presets, sleep timer and alarm function
- Access to thousands of radio stations worldwide
- Station scan by genre, station name, location
- 4 stereo line inputs (RCA) on the back panel
- 3.5 mm AUX input on the front panel
- 1 combo microphone input with controls for volume, bass and treble on the front panel
- Audio source selector
- Controls for volume, bass and treble
- 3 stereo master outputs
- Digital and analog audio outputs (Toslink, coaxial, RCA)
- 482 mm rack installation (1 U), removable mounting brackets
- Delivery includes IR remote control, rod antenna and FM and DAB wire antenna
- Controlling by W-Lan; IR remote control (provided)
- Desktop console housing; (19") 48.3 cm rack installation (provided)
Manuals
ManualsParaméterek
Power supply | 100-240 V AC, 50/60 Hz |
Power consumption | 6 W |
Power connection | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
Frequency range | 20 - 20,000 Hz |
S/N ratio | >100 dB |
THD | <0,1 % at 1 kHz |
WiFi | Standard:IEEE 802.11 b/g/n |
Security protocol | WEP/WPA/WPA2 |
Network connection | Protocol:Ethernet TCP/IP via RJ-45 (F) mounting version, 10/100 Mbit/s |
Impedance | Input 10 kOhm , unbal. |
Input 20 kOhm , bal. | |
Control | W-Lan; IR remote control (provided) |
Bluetooth | Version:4,2 + EDR |
Audio player | FM-tuner + Internet radio + BT + DAB+ |
Housing color | Black |
Display type | Multicolor TFT display |
Tuner frequency range | FM 87-108 MHz, DAB(+) 174,928-239,200 MHz |
Control elements | Power switch, source selector, level control, EQ controls, menu; navigation keys, encoder |
Status LED | Power |
Connections | Antenna via 1 x SMA (F) mounting version |
Network connection via 1 x RJ-45 (F) mounting version | |
Input | antenna via 1 x Belling-Lee (F) mounting version |
Input | line via 4 x stereo RCA |
Input | AUX via 1 x 3.5 mm jack (stereo) mounting version |
Input | Microphone via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) |
Output | line via 2 x 3-pin XLR (M) mounting version |
Output | line via 2 x 6,3-mm-jack (bal.) |
Output | line via 1 x stereo RCA |
Output | optical via 1 x toslink |
Output | co-axial (S/PDIF) via 1 x RCA (F) mounting version |
Channels | Microphon chanal:1 x mono via 3-pin XLR/6.35mm jack (F) combination socket (mounting version), channel control via Rotary dial, 2-band tone control EQ |
Master output | stereo, channel control via Rotary dial, 2-band tone control EQ, source selector, |
Format | MP3, AAC/AAC+; FLAC |
Frequency band | 2.4 GHz |
Material | Metal |
Housing design | Desktop console housing |
(19") 48.3 cm rack installation (provided) | |
Dimensions | Width:48,3 cm |
Depth | 19 cm |
Height | 4,4 cm |
Weight | 2,00 kg |
Remote control | |
Power supply | 3 V DC |
Battery | 2 x Micro (AAA) included |
