Leírás

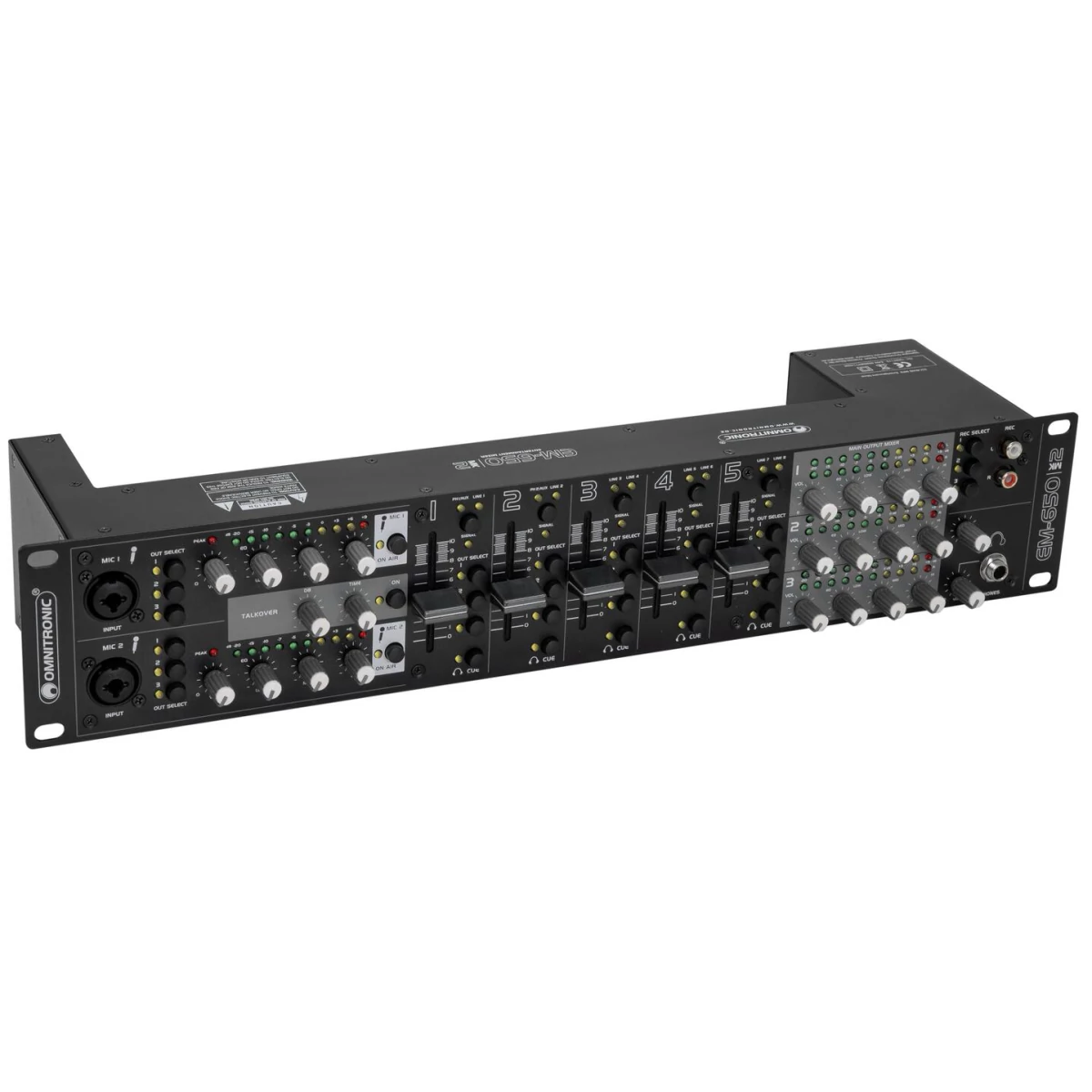

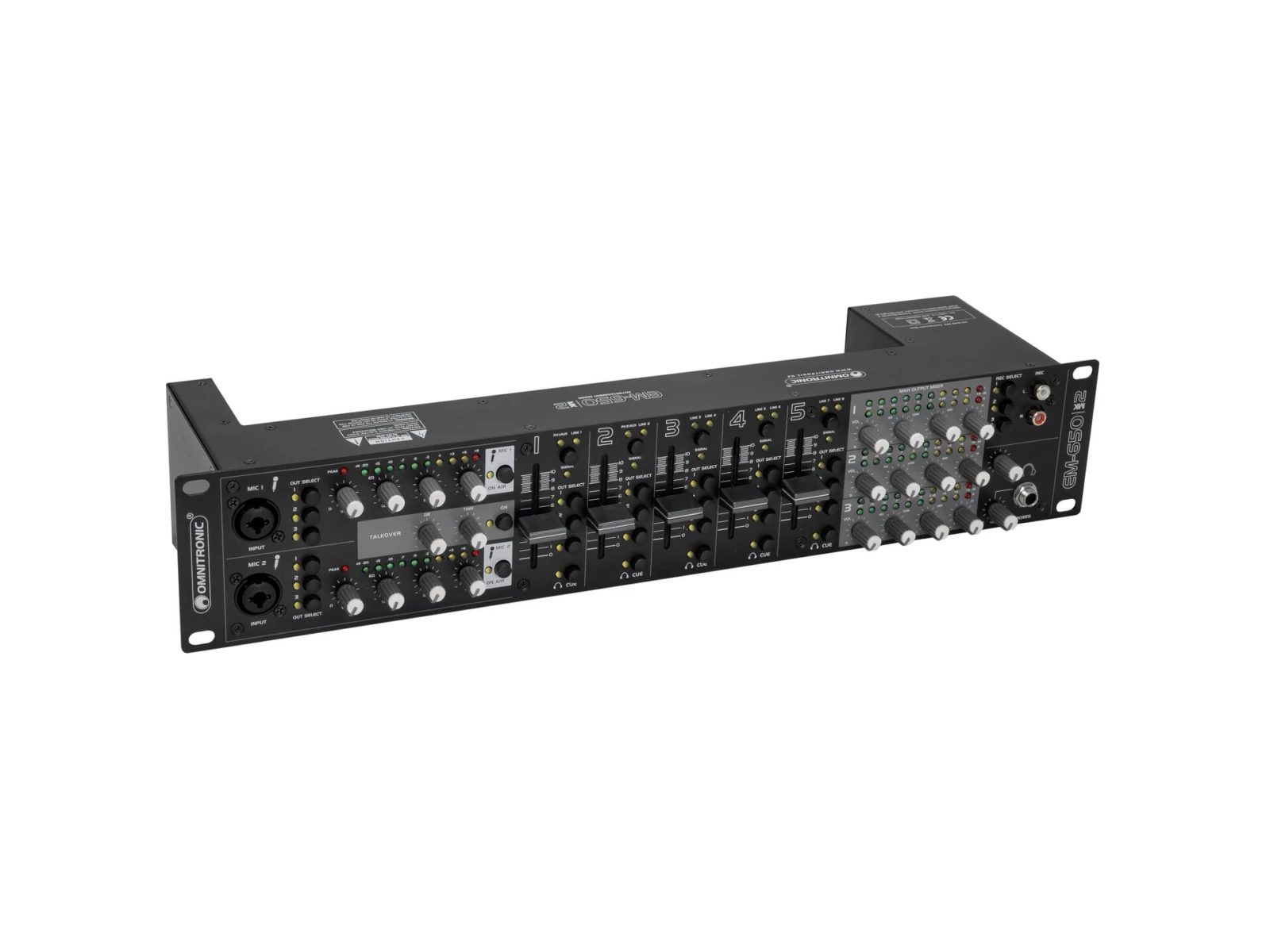

Multifunctional 5+2-channel mixer with 3 zones, black
- 5 input channels with recessed gain controls on the rear panel, signal LED and smooth channel faders
- 3 adjustable master outputs with 3-way equalizer and 10-digit stereo LED level meter
- (19") 48.3 cm rack installation 2 U
- For application areas such as: Installation; restaurants, bars and hotels; clubs/dancing school
Package contents
- 1 x mixer, 1 x user manual, 1 x power cord, 1 x RCA cable
Manuals
ManualsParaméterek
| Power supply | 230 V AC, 50 Hz |
| Protection class | Protection class II |
| Power connection | Power supply cord with Euro plug (provided) |
| Frequency range | 20 - 20000 Hz |
| S/N ratio | >60 dB line |
| >70 dB phono | |
| THD | Line/phono <0,02 % at 1 kHz |
| Gain | Microphone 52 dB |
| Line 17 dB | |
| Phono 53 dB | |
| Housing color | Black |
| Zone output | 3 adjustable zones |
| Control elements | Power switch, regular talkover, source selector |
| Status LED | Signal, chanal level meter, master level meter, peak, chanal source; CUE, talkover, ON AIR, routing |
| Connections | Input:microphone via 2 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) |
| Input | line/phono via 2 x stereo RCA |
| Input | line via 8 x stereo RCA |
| Output | master via 3 x 3-pin XLR |
| Output | master via 3 x stereo RCA |
| Output | rec. via 2 x stereo RCA |
| Output | headphones via 1 x 6.3-mm-jack (bal.) |
| Channels | Input chanel:2 x stereo with line-line/phono switch via RCA, channel control via fader, 3-band tone control EQ, routing master bus switch, gain control, source selector, CUE switch |
| Input chanel | 3 x stereo with line-line switch via RCA, channel control via fader, routing master bus switch, gain control, source selector, CUE switch |
| Microphon chanal | 2 x mono via Combination socket (XLR/jack), channel control via rotary dial, ON AIR switch, routing master bus switch, talkover switch |
| Master output | 3 x stereo via XLR or RCA, channel control via rotary dial, 3-band tone control EQ |
| Rec. output | 1 x stereo via RCA, routing master bus switch |
| Headphones output | 1 x stereo via jack, channel control via rotary dial, cue mix function |
| Housing design | (19") 48.3 cm rack installation 2 U |
| Dimensions | Width:48,3 cm |
| Depth | 14,8 cm |
| Height | 8,9 cm |
| Weight | 3,10 kg |
