Leírás

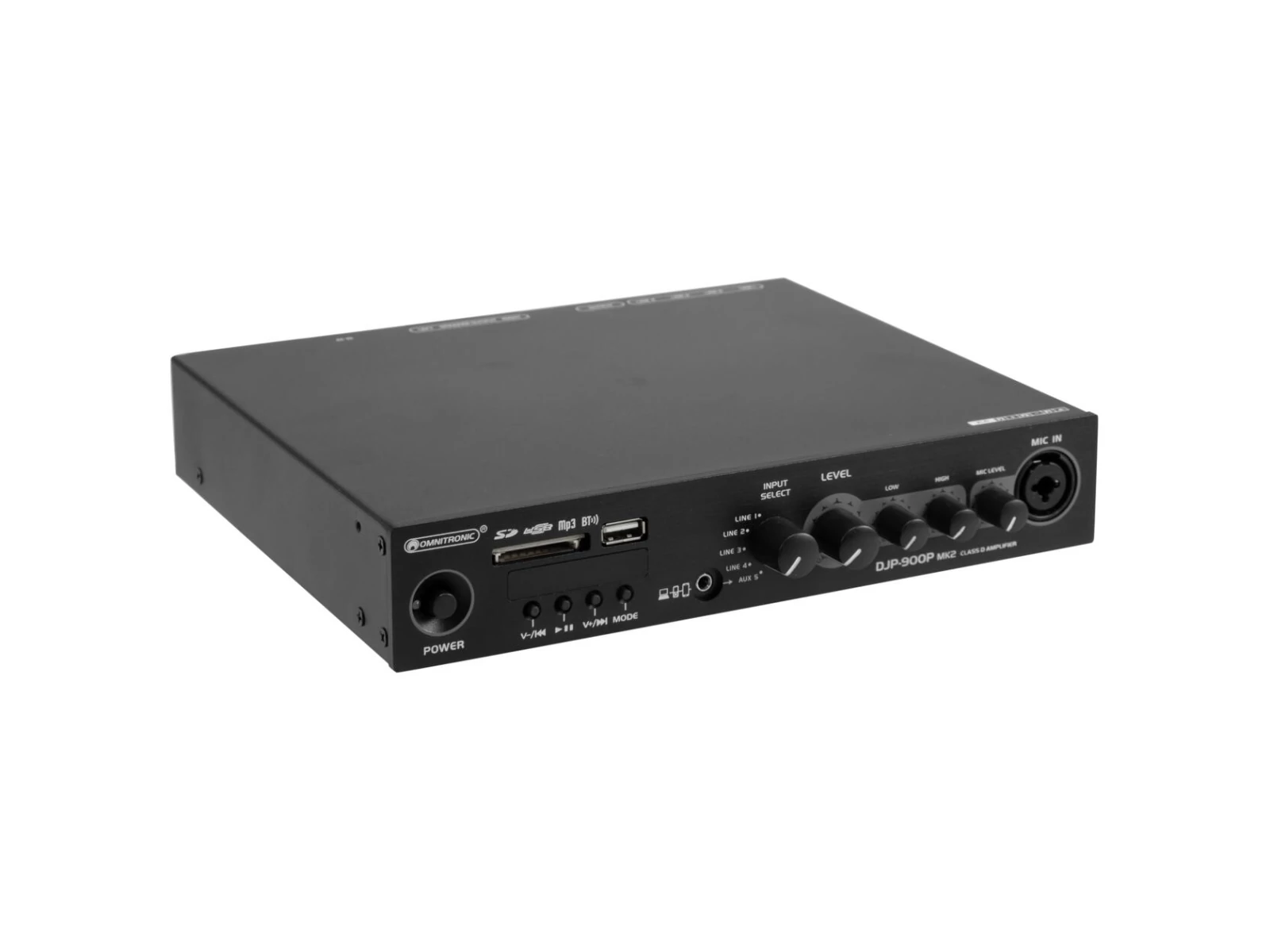

Compact stereo mixing amplifier with player + Bluetooth, 2 x 460 W / 4 ohms
The compact stereo mixing amplifier DJP-900P with efficient class D output circuitry is particularly suitable for permanent installations in restaurants, gyms and retail locations which require quick-access music playback control. It provides 2 x 460 watts at 4 ohms and makes mixing of a stereo line source and a microphone easy. For double output power it is possible to switch to bridge mode. Then 900 watts are provided.Low-impedance speakers and PA speakers with 100 V audio transformers can be connected. Stream your music wirelessly from your smartphone, tablet or computer via Bluetooth to the built-in audio player, which also offers slots for USB storage devices and SD(HC) memory cards. Extensive protective circuits provide protection e.g. against short circuit, overload and overheating.
- Built-in audio player with Bluetooth receiver
- Extremely low weight and height due to integrated switch mode power supply
- 2 operating modes can be selected (stereo or bridge/100V)
- Speaker switch-on delay and auto limiters
- 1 mono microphone input with volume control on the front panel
- Audio source selector
- Extensive protective circuits
- Rugged steel chassis with aluminum front panel
- The device is cooled by cooling fan
- Desktop console housing
- (19") 48.3 cm rack installation possible 1 U
- For application areas such as: Trade fair and shop fitting; sports centres/gyms; restaurants, bars and hotels
Audio player
- Controlling by Bluetooth
- 2.4 GHz license-free worldwide
- Bluetooth: Operating range up to 10m
Package contents
- 1 x device, 1 x power cord, 1 x user manual, 1 x declaration of conformity, 2 x mounting bracket
Manuals
ManualsParaméterek
| Power supply | 230 V AC, 50 Hz |
| Power consumption | 140 W 1/8 power |
| Output power | 2 x 460 W RMS (4 ohms) |
| 2 x 240 W RMS (8 ohms) | |
| Max. 260 W bridged (100 V) | |
| Max. 900 W bridged (8 ohms) | |
| Power connection | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Frequency range | 20 - 20,000 Hz |
| S/N ratio | >100 dB |
| THD | <0,05 % at 1 kHz |
| Cooling | Cooling fan |
| Impedance | 4 ohms; 8 ohms; 16 ohms; Public address systems 100V |
| Impedance | Input:20 kOhm , bal. |
| Input | 10 kOhm , bal. |
| Housing color | Black |
| Circuitry | Class D |
| Slew rate | >14 V/µs |
| Damping factor | >300 |
| Control elements | Power switch, source selector, tone control, level control, mode switch (stereo / bridged/100V) |
| Controls | Softstart; short-circuit; overheat; overload; DC voltage; VHF |
| Equalizer | Master:1 x 2-band tone control stereo |
| Status LED | Power |
| Connections | Input:Microphone via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) |
| Input | line via 4 x stereo RCA |
| Input | line via 1 x 3.5 mm jack (stereo) mounting version |
| Output | speaker via 1 x screw terminal |
| Output | rec. via 1 x stereo RCA |
| Input sensitivity | 1 V |
| Material | Metal |
| Housing design | Desktop console housing |
| (19") 48.3 cm rack installation possible 1 U | |
| Dimensions | Width:24,1 cm |
| Depth | 25,6 cm |
| Height | 4,45 cm |
| Weight | 2,50 kg |
| Audio player | |
| Control | Bluetooth |
| Audio player | USB + SD + Bluetooth |
| Music format | MP3, WMA; WAV |
| Frequency band | 2.4 GHz |
| Available storage media | USB devices/SD cards max. 32GB (FAT 16/32) |
| Range | Bluetooth:range up to 10m |
