Leírás

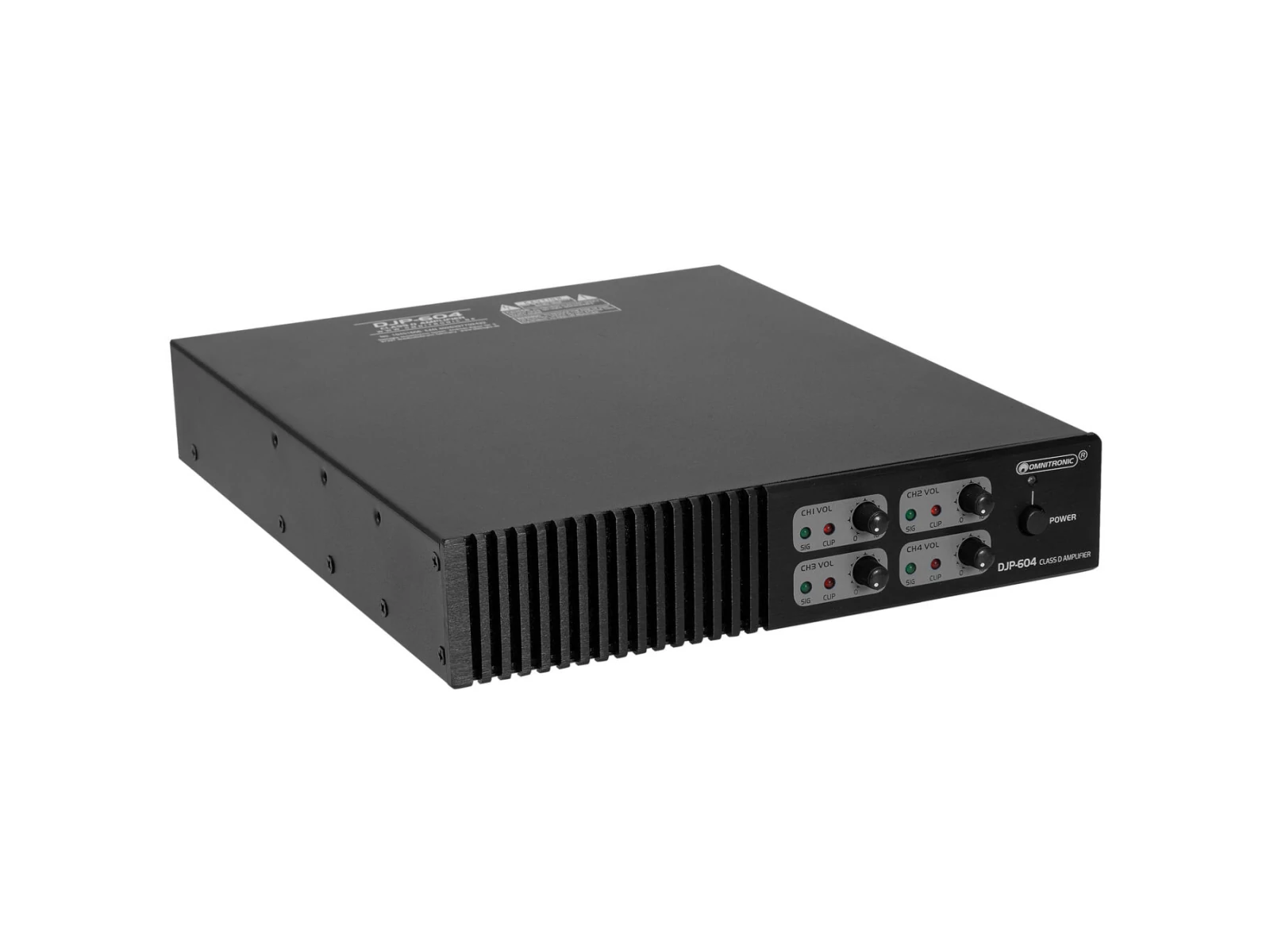

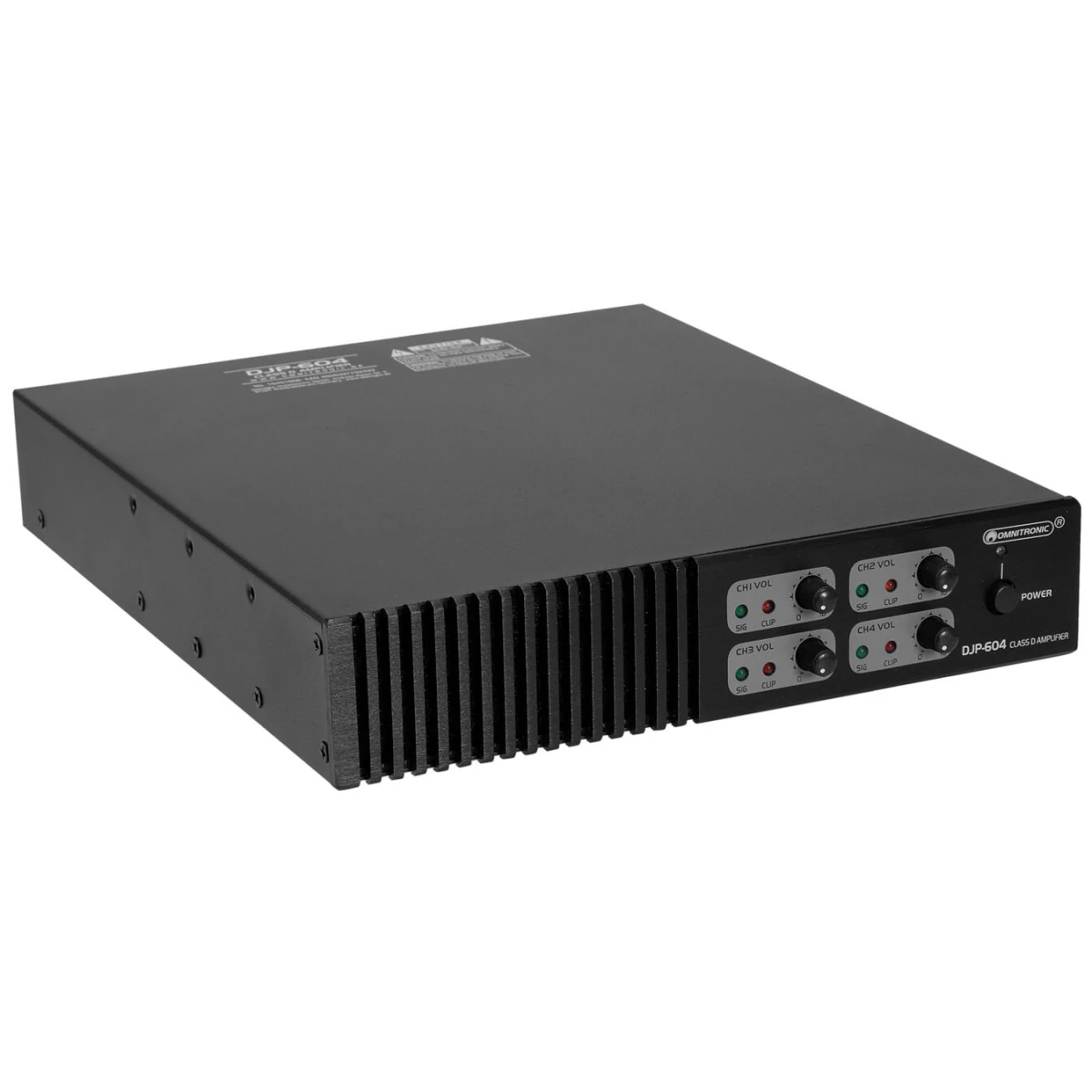

4-channel class D amplifier in 9.5" housing, 4 x 150 W / 4 ohms, 4 x 80 W / 8 ohms
- Extremely low weight and height due to integrated switch mode power supply
- 4 level controls
- Inputs linkable for flexible configuration
- LEDs for clip and signal per channel
- Speaker switch-on delay
- Complete protection set
- Rugged steel chassis with aluminum front panel
- Desktop console housing
- (19") 48.3 cm rack installation possible
Package contents
- 1 x user manual, 1 x amplifier, 4 x foot, 6 x angle, 8 x screw, 1 x power cord
Manuals
ManualsParaméterek
Power supply | 230 V AC, 50 Hz |
Power consumption | 185 W 1/8 power |
Output power | 4 x 150 W RMS (4 ohms) |
4 x 80 W RMS (8 ohms) | |
Power connection | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
Frequency range | 20 - 20,000 Hz |
S/N ratio | >105 dB |
Impedance | Input:20 kOhm , bal. |
Input | 10 kOhm , unbal. |
Housing color | Black |
Circuitry | Class D |
Slew rate | 20 V/µs |
Damping factor | >300 |
Control elements | Power switch, level control per channel |
Controls | Softstart; short-circuit; overheat; overload; VHF; DC voltage |
Status LED | Power, signal, clip |
Connections | Input:line via 4 x screw plug-in terminal |
Output | speaker via 4 x screw plug-in terminal |
Material | Metal |
Housing design | Desktop console housing |
(19") 48.3 cm rack installation possible | |
Dimensions | Width:26,5 cm |
Depth | 21,4 cm |
Height | 4,4 cm |
Weight | 2,46 kg |
