Leírás

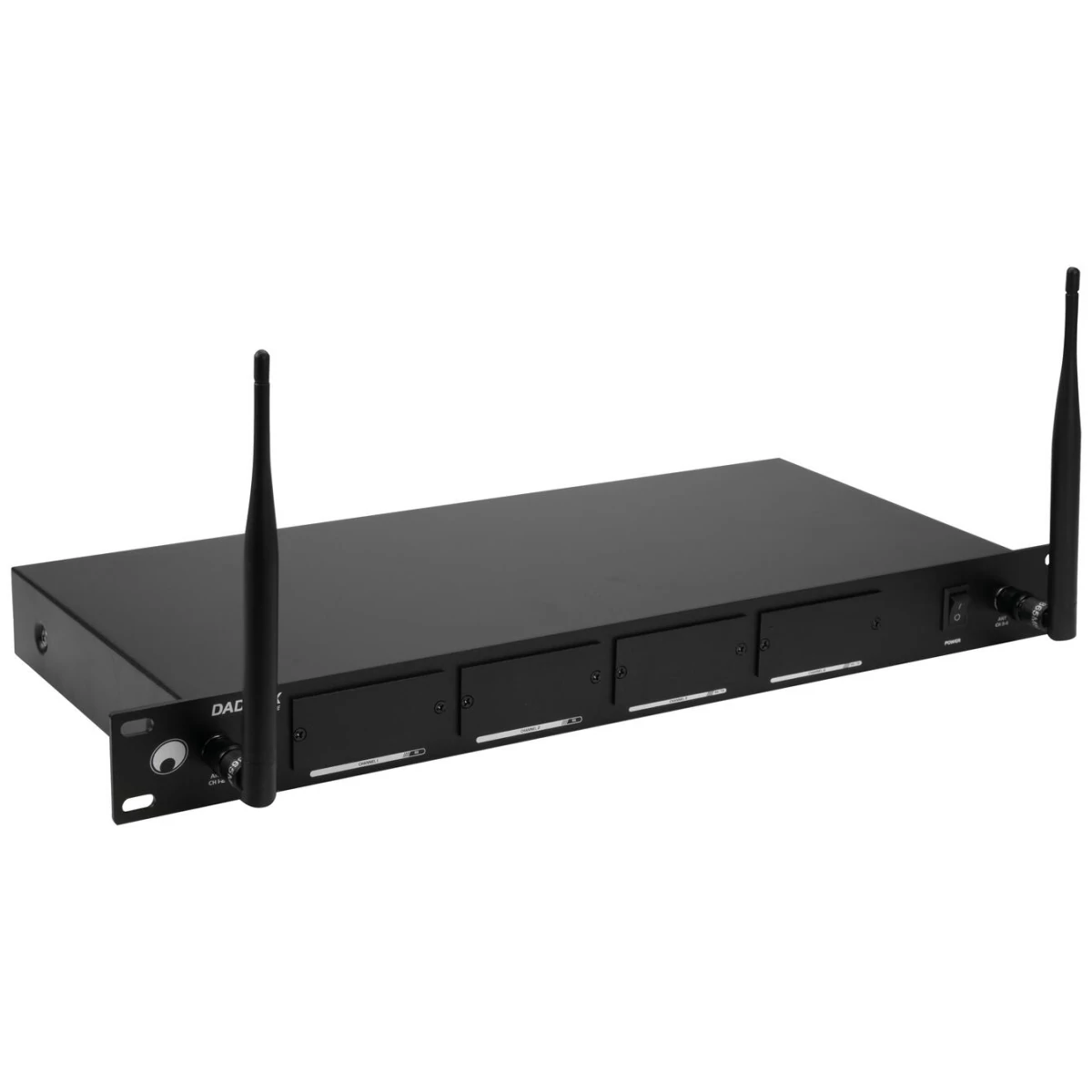

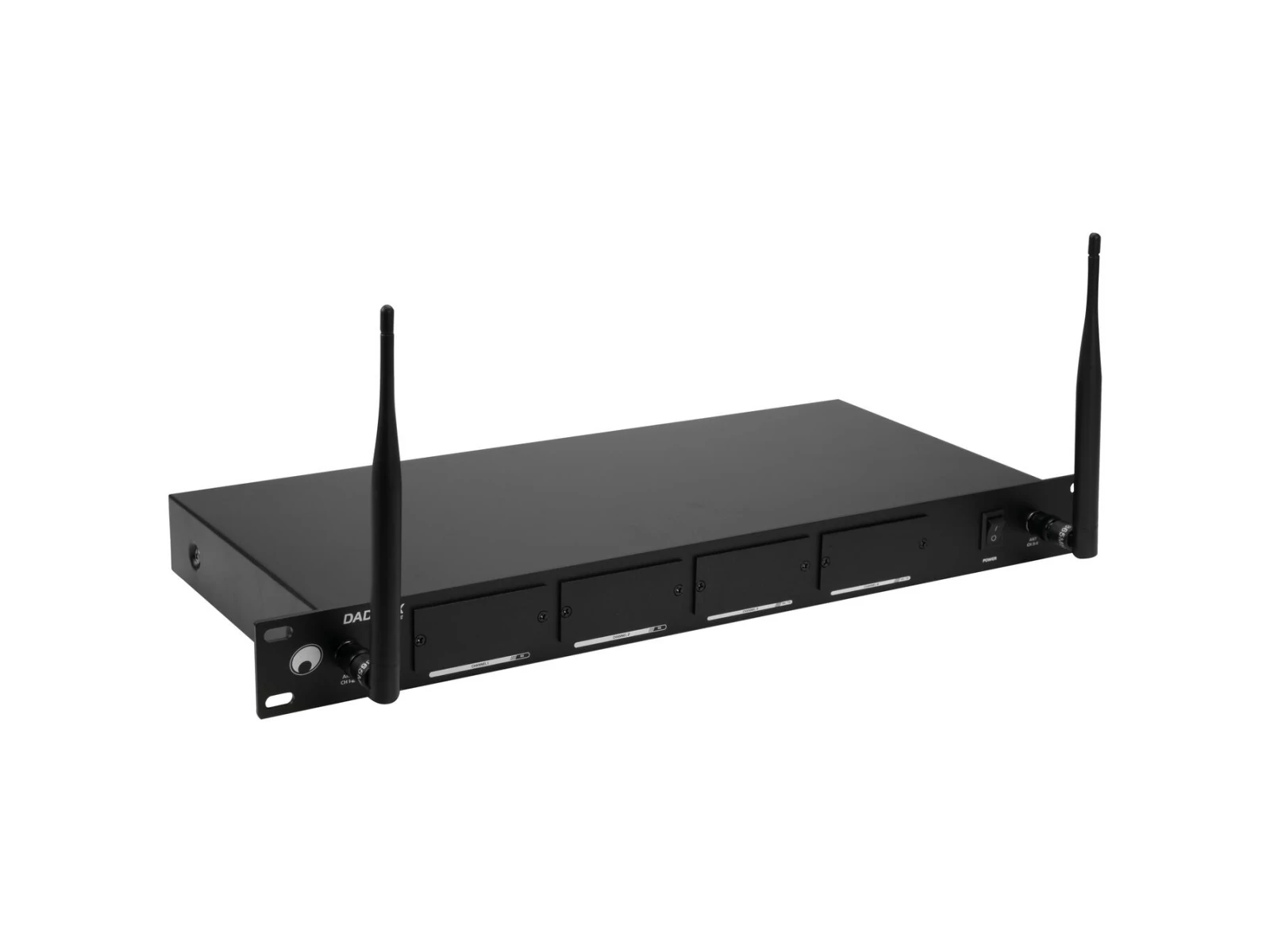

4-channel housing for wireless modules of the MOM and DAD series
- 4 insert slots for receiver and transmitter modules of the MOM and DAD series
- Supports the WMT/R-2M wireless system
- Balanced XLR output per channel
- 2 AUX inputs (3.5 mm jack) for channel 3 and 4
- Rugged metal housing
- (19") 48.3 cm rack installation 1 U
- UHF 823 - 832 MHz License-free and approved in large parts of Europe
- UHF 863 - 865 MHz License-free and approved in Europe
Scope of delivery
- 1 x device
- 2 x antenna
- 1 x external mains adapter
- 8 x screw
- 1 x jack cable
- 1 x user manual
- 1 x declaration of conformity
Manuals
ManualsParaméterek
| Type | Audio transmission |
| Power supply | 100-240 V AC, 50/60 Hz |
| 12V DC 1000 mA | |
| Power consumption | Max. 6 W |
| Power connection | Mains input via coaxial power connector (M) mounting version power supply cord with AC adapter (provided) |
| Number of channels | 4 |
| Frequency band | UHF 823 - 832 MHz; UHF 863 - 865 MHz |
| Connections | Input:line via 2 x 3.5 mm jack (stereo) mounting version |
| Output | microphone via 4 x 3-pin XLR (M) mounting version |
| Output | master via 1 x 6.3 mm plug (unbal.) |
| Antenna via 2 x BNC (F) | |
| Switch | On/off switch |
| Material | Metal |
| Color | Black |
| Housing design | (19") 48.3 cm rack installation 1 U |
| Dimensions | Width:48.1 cm |
| Depth | 24.5 cm |
| Height | 4.5 cm |
| Weight | 2.50 kg |
