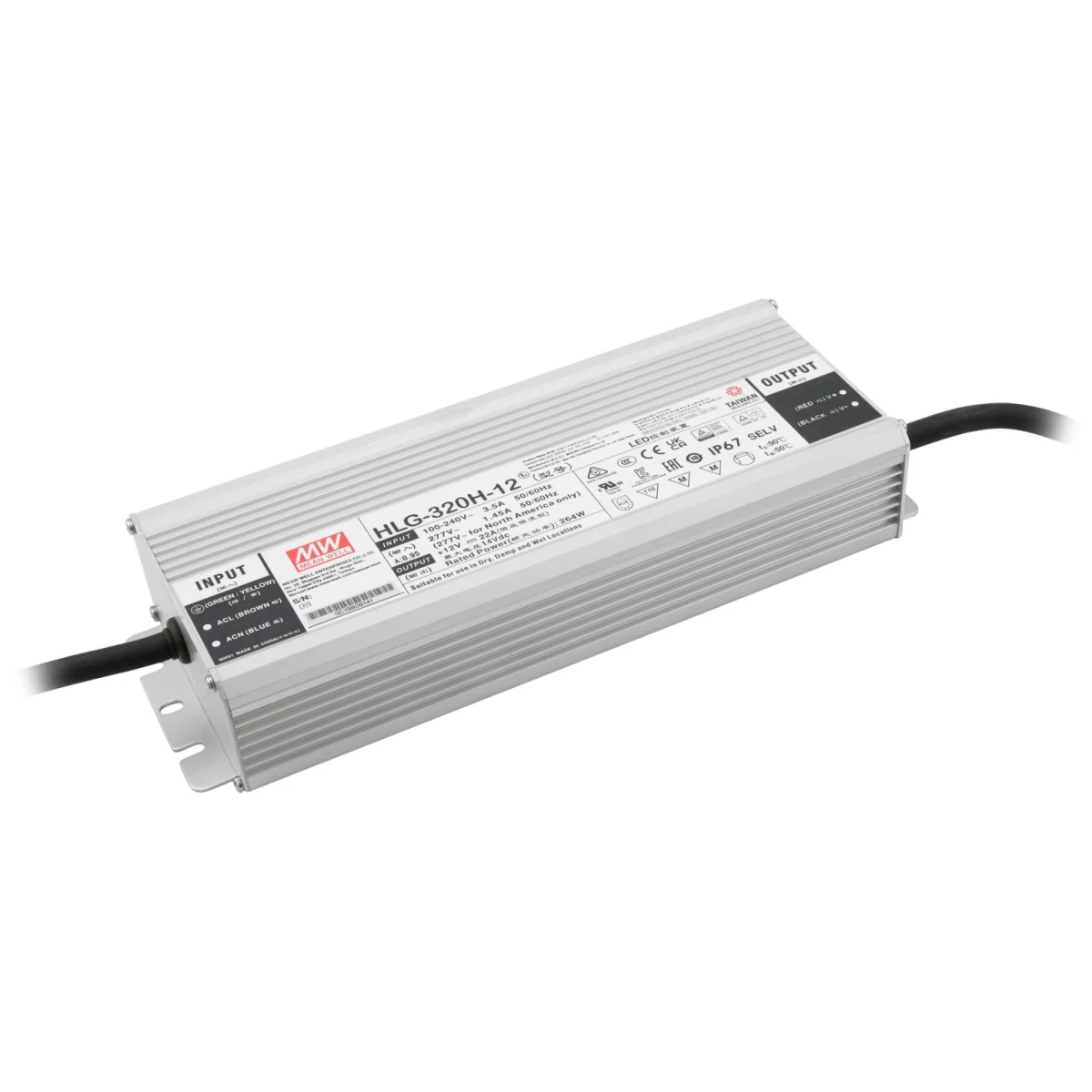

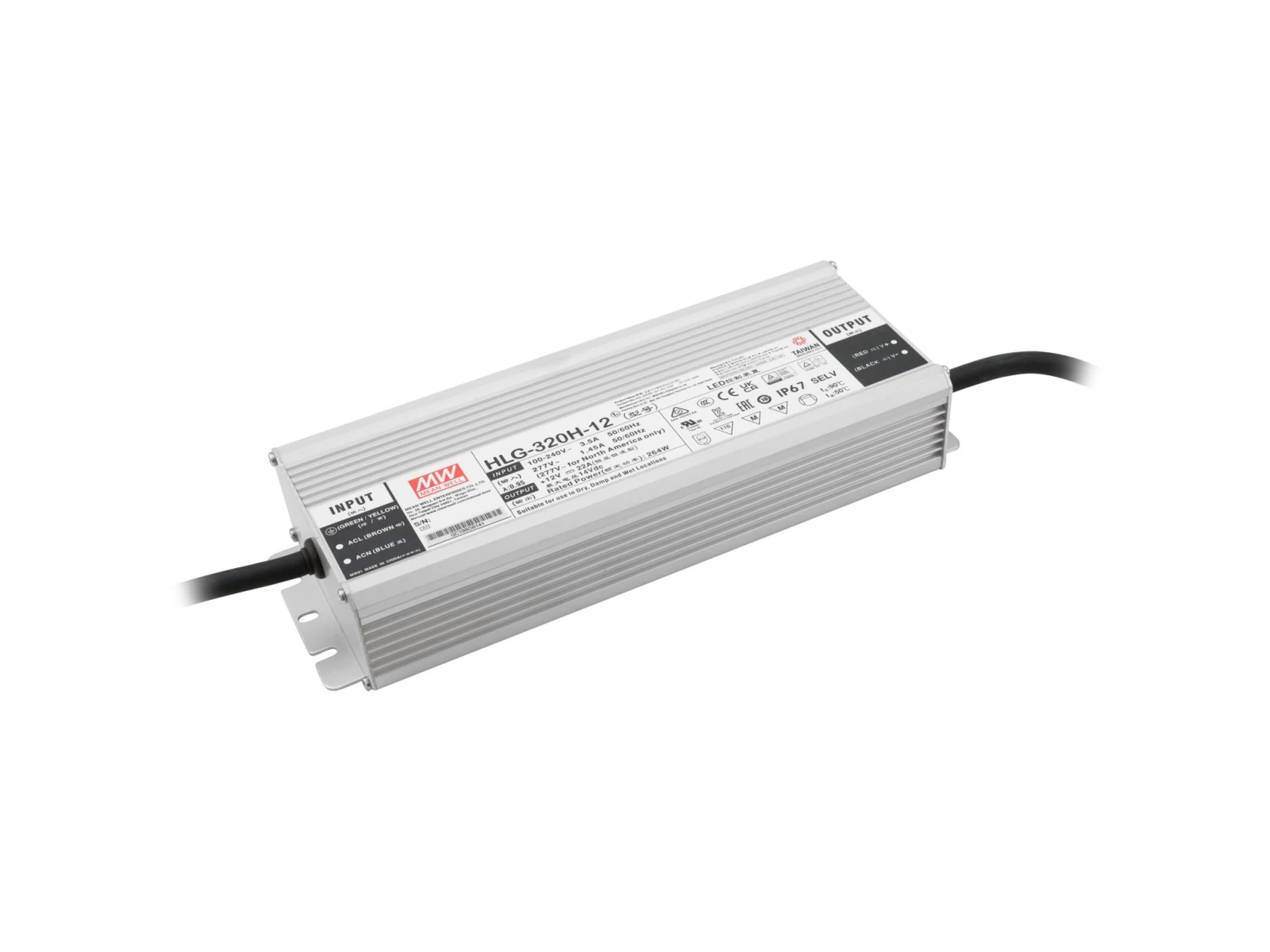

HLG-320H-12 LED switching power supply IP67, 264 W / 12 V / 22 A
- Constant voltage, constant current
- Especially for LED lighting installations with high power requirements
- Full-range AC input
- Low-noise according to EMC standard EN 61000-3-2 class C
- Built-in active PFC filter
- Overload protection by shutdown, auto recovery
- Protected against short circuit, overload, overvoltage and overtemperature
- Rugged metal housing
- Suitable for outdoor use
- For further information about this product, please refer to the Data Sheet under "Downloads"
Package contents
- 1 x external mains adapter
Paraméterek
| Power supply | 100-240 V AC, 50/60 Hz |
| IP classification | IP67 |
| Protection class | Protection class I |
| Power connection | Fixed Supply cord with open wires |
| Cable length | 0,25 m |
| Power output | No connector/cable only |
| Housing color | Silver |
| Output | 12 V DC; 22 A; 264 W |
| Dimensions | Length:25,2 cm |
| Width | 9 cm |
| Height | 4,38 cm |
| Weight | 1,80 kg |
