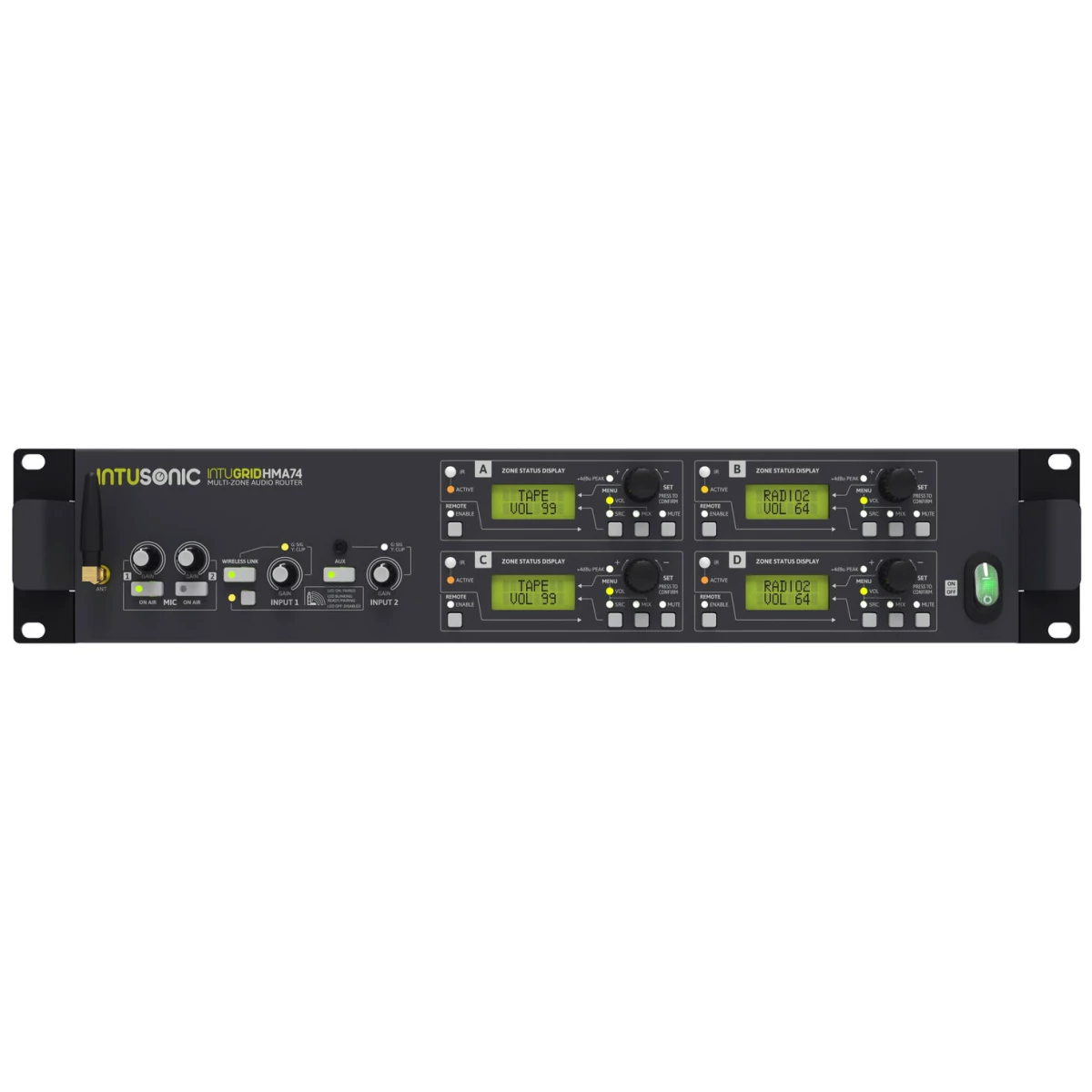

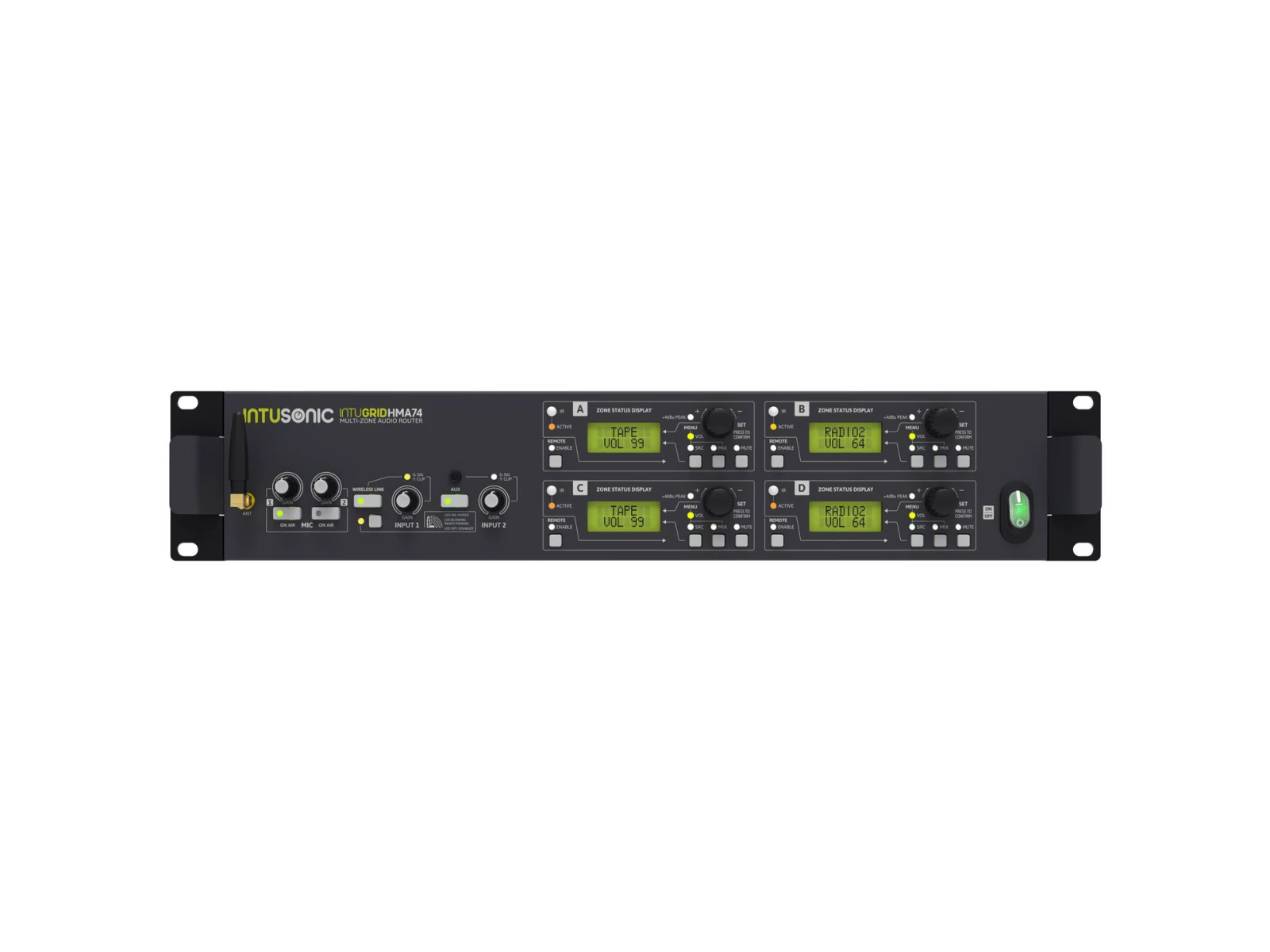

19" audio router, 5 stereo & 2 mic inputs, IR remote an RS485 control option
The INTUGRID HMA74 is a core unit for Intusonic's digitally controlled audio zoning, which is complemented by the HZE11 zone remote wall panel. Together they deliver a scalable audio routing system for background music. The HMA74 offers two microphone inputs, 5 line inputs, a front-panel 3.5mm TRS input and a LINKOUSTIC 4.2 wireless audio link, which can be flexibly routed to its 4 output zones, with each of these zones controllable either by the on-board user interface, the included IR remote or a wall remote control panel. Every zone can be configured extensively to meet the application's demands, while keeping user interaction extremely simple. The HZE11 zone remote wall panel allows to remotely control all zone settings plus accepts a local audio feed.
- (19") 48.3 cm rack installation 2 U
- Control via IR remote control; RS 485; LINKOUSTIC 4.2 Wireless Audio Link
- LCD display
- For further information about this product, please refer to the Data Sheet under "Downloads"
Scope of delivery
- 1 x device
- 1 x power cord
- 12 x screw plug-in terminal
- 1 x plug (male)
- 4 x foot
- 1 x antenna
- 1 x remote control
- 1 x battery
- 1 x user manual
Manuals
ManualsParaméterek
| Power supply | 115/230 V AC, 50/60 Hz |
| Power consumption | Max. 14 W |
| IP classification | IP20 |
| Protection class | Protection class I |
| Power connection | Mains input via IEC (M) power supply cord with safety plug (provided) |
| Device fuse | 5 x 20 mm, T 0.5 A fuse replaceable |
| Frequency range | 20 - 20000 Hz |
| S/N ratio | >104 dB |
| THD | <0.01 % at 1 kHz |
| Control | IR remote control; RS 485; LINKOUSTIC 4.2 Wireless Audio Link |
| Crosstalk | >70 dB |
| Display type | 4 x LCD display |
| Control elements | Power switch, encoder, level control per channel, phantom power switch, mute control; source selector, low cut switch |
| Connections | Input:stereo via 4 x stereo RCA |
| Input | stereo via 2 x 6.3-mm-jack (bal.) |
| Input | microphone via 2 x screw plug-in terminal |
| Output | zones via 4 x screw plug-in terminal |
| Antenna via 1 x SMA (F) mounting version | |
| RS 485 via 5 x RJ-45 (F) mounting version | |
| Mute function via screw plug-in terminal | |
| Emergency via screw plug-in terminal | |
| Equalizer | Master:2 x 2-band tone control |
| Color | Black |
| Housing design | (19") 48.3 cm rack installation 2 U |
| Dimensions | Width:48.3 cm |
| Depth | 25 cm |
| Height | 8.8 cm |
| Weight | 4.35 kg |
