PRO spot/beam/wash moving head with 380 W COB LED, large zoom, frost, CMY color mixing and animation wheel

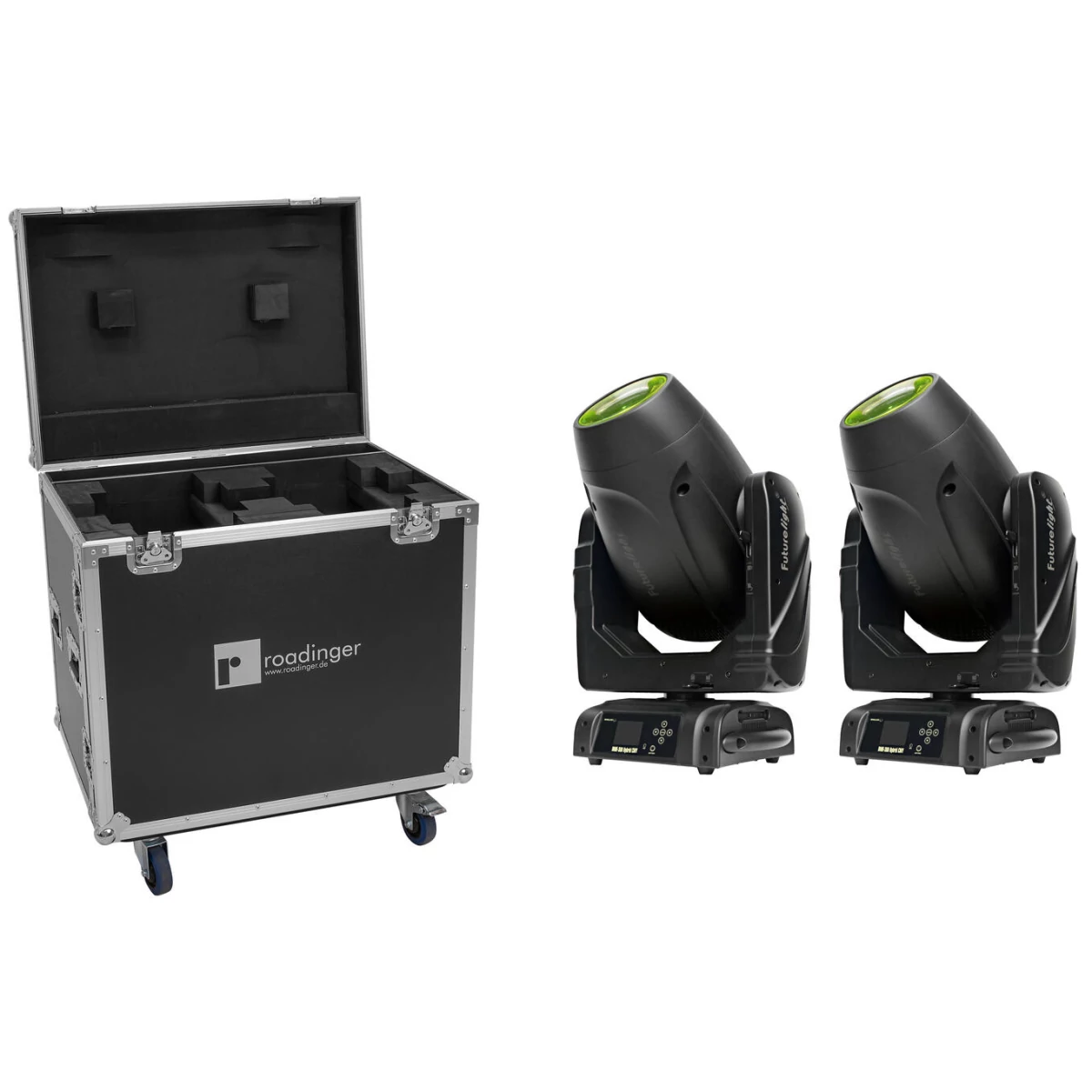

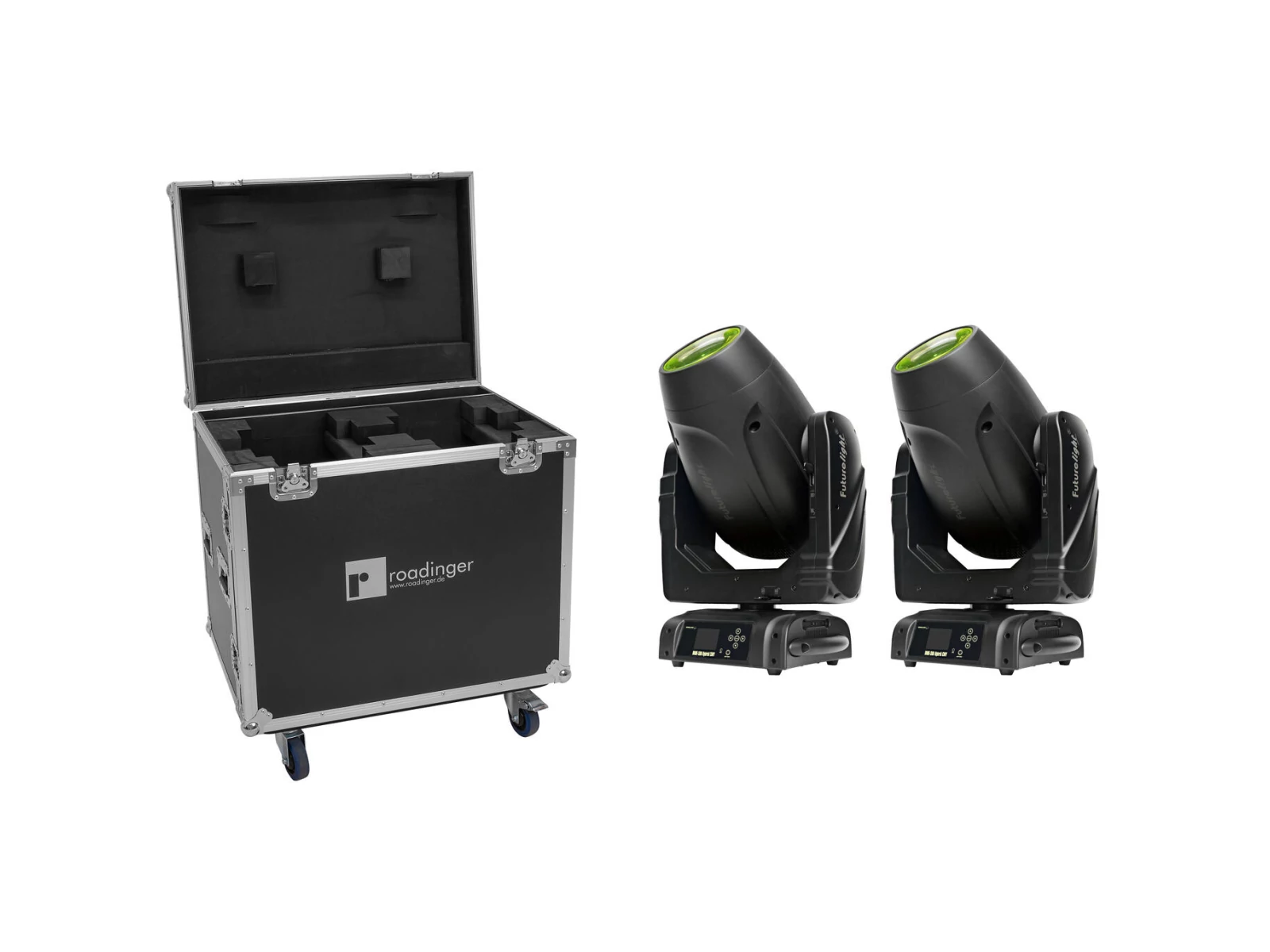

FUTURELIGHT DMH-380 Hybrid CMY Moving Head Spot/Beam
- Bidirectional rotating 6-fold linear prism and 8-facet prism with variable speed, combinable for multi-facet effects
- 1 powerful LED 380 W COB (chip-on-board) cold white (CW)
- Positioning within 540° PAN, 260° TILT
- Auto position correction (feedback)
- Exact positioning (16 bit resolution)
- Exact 16 bit resolution at Dimmer, zoom, focus, gobo rotation
- Prism 8-fold rotating; prism 6-fold linear rotating; gobo wheel with rotating gobos; gobo wheel with static gobos; focus motor-driven; frost filter linear; animation wheel rotating
- Pulse-width modulation variable
- CMY color mixing for indefinite color variations
- Color wheel with 6 dichroic filters plus open and CTO correction filter
- Gobo wheel with rotating gobos, 8 gobos and open
shake effect - Gobo indexable
- Slot-in gobo system for easy gobo replacement
- Gobo wheel with static gobos, 11 gobos and open
shake effect - The device is cooled by temperature-controlled fan at the Head; temperature-controlled fan at the base
- Control via stand-alone; master/slave function; DMX; RDM; sound to light via microphone; CRMX by LumenRadio upgradeable; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional)
- Preprogrammed in Light Captain
- Flicker-free
- With a beam angle of 1° - 50°
- Good color rendering index (CRI)
- With omega bracket
- Multicolor LCD display,
with battery buffering for easy controlling upgradeable - Mains input and output for power linking up to 4 units
- For application areas such as: Wedding/gala/events; stage; theater; rental
- Very quiet working noise
- Application possibility: Standing; suspended
Package contents
- 1 x moving light, 1 x user manual, 1 x power cord, 2 x omega bracket, 1 x XLR cable
ROADINGER Flightcase 2x DMH-380
Trunk case with castors
- With 1 accessory compartment
- With 2 device compartments
- Interior with foam padding
cover with foam padding - Aluminum profile frames 30mm with rounded edges
- 4 hinged, chromium plated case handles
- 3 chrome tip-over locks
- 6 high-quality butterfly locks
- 4 x castors with 2 locking brakes
- 4 x built-in stacking trays in the cover
- For further information about this product, please refer to the Data Sheet under "Downloads"
Paraméterek
| Weight | 93,60 kg |
| FUTURELIGHT DMH-380 Hybrid CMY Moving Head Spot/Beam | |
| Power supply | 100-240 V AC, 50/60 Hz |
| Power consumption | 450 W |
| IP classification | IP20 |
| Protection class | Protection class I |
| Power connection | Mains input via IP T-Con (M) mounting version power supply cord with safety plug |
| Power output | IP T-Con (F) mounting version |
| Device fuse | 5 x 20 mm, T 3,15 A fuse replaceable |
| Lamp type | LED lamp |
| LED type | 1 x 380 W COB (chip-on-board) cold white (CW) |
| Max. TILT movement | 260° exact positioning (16 bit resolution) auto position correction (feedback) |
| Max. PAN movement | 540° exact positioning (16 bit resolution) auto position correction (feedback) |
| Flash rate | 1 - 16 Hz |
| Equipment | Prism 8-fold rotating; prism 6-fold linear rotating; gobo wheel with rotating gobos; gobo wheel with static gobos; focus motor-driven; frost filter linear; animation wheel rotating |
| Color generation | CMY color mixing for indefinite color variations |
| Color generation | Color wheel with 6 dichroic filters plus open and CTO correction filter |
| Gobos | Gobo wheel with rotating gobos, 8 gobos and open |
| Outside diameter 20mm | |
| Image diameter 16mm | |
| Shake effect | |
| Gobo indexable | |
| Slot-in gobo system for easy gobo replacement | |
| Gobo wheel with static gobos, 11 gobos and open | |
| Shake effect | |
| DMX channels | 26; 30 |
| DMX input | 5-pin XLR (M) mounting version IP |
| 3-pin XLR (M) mounting version IP | |
| DMX output | 5-pin XLR (F) mounting version IP |
| 3-pin XLR (F) mounting version IP | |
| Cooling | 4 x temperature-controlled fan at the Head |
| 1 x temperature-controlled fan at the base | |
| Control | Stand-alone; master/slave function; DMX; RDM; sound to light via microphone; CRMX by LumenRadio upgradeable; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional) |
| Preprogrammed in | Light Captain |
| Projection | Flicker-free |
| Beam angle | 1° - 50° |
| Beam angle (1/2 peak) | 1 - 50° |
| Beam angle (1/10 peak) | 1 - 50° |
| Color rendering index (CRI) | 85 Ra via filter |
| Illuminance in Lux (lx) | Narrow cold white (CW) 6m:61479 lx |
| Wide cold white (CW) 1m | 25101 lx, 3m:2877 lx, 6m:797 lx |
| Housing color | Black |
| Attachment system | 2x omega bracket |
| Display type | Multicolor LCD display battery buffering upgradeable |
| Dimensions | Width:41,5 cm |
| Depth | 25,4 cm |
| Height | 63,2 cm |
| Weight | 22,00 kg |
| Noise classification | Class 1 (very slight noise, suitable for noise-sensitive environments) |
| Legal specifications | |
| Special product | Not designed for household room illumination |
| Intended use | Show effect lighting |
| ROADINGER Flightcase 2x DMH-380 | |
| Maximum load | 100 kg |
| Aluminum profile frames | 30 mm |
| Case handle | 4 pc/pcs |
| Stop hinge | 3 pc/pcs |
| Lock | Butterfly lock:6 pc/pcs |
| Transport aid | 4 x castors with 2 locking brakes |
| 4 x built-in stacking trays in the cover | |
| Color | Black, laminated |
| Accessory compartment | 75 cm x 8,5 cm x 25 cm |
| Device compartment | 26,5 cm x 42,5 cm x 60 cm |
| Inside dimensions | 75 cm x 53 cm x 60 cm |
| Material thickness | 10 mm |
| Dimensions | Width:81 cm |
| Depth | 59 cm |
| Height | 88 cm |
| Weight | 44,10 kg |
