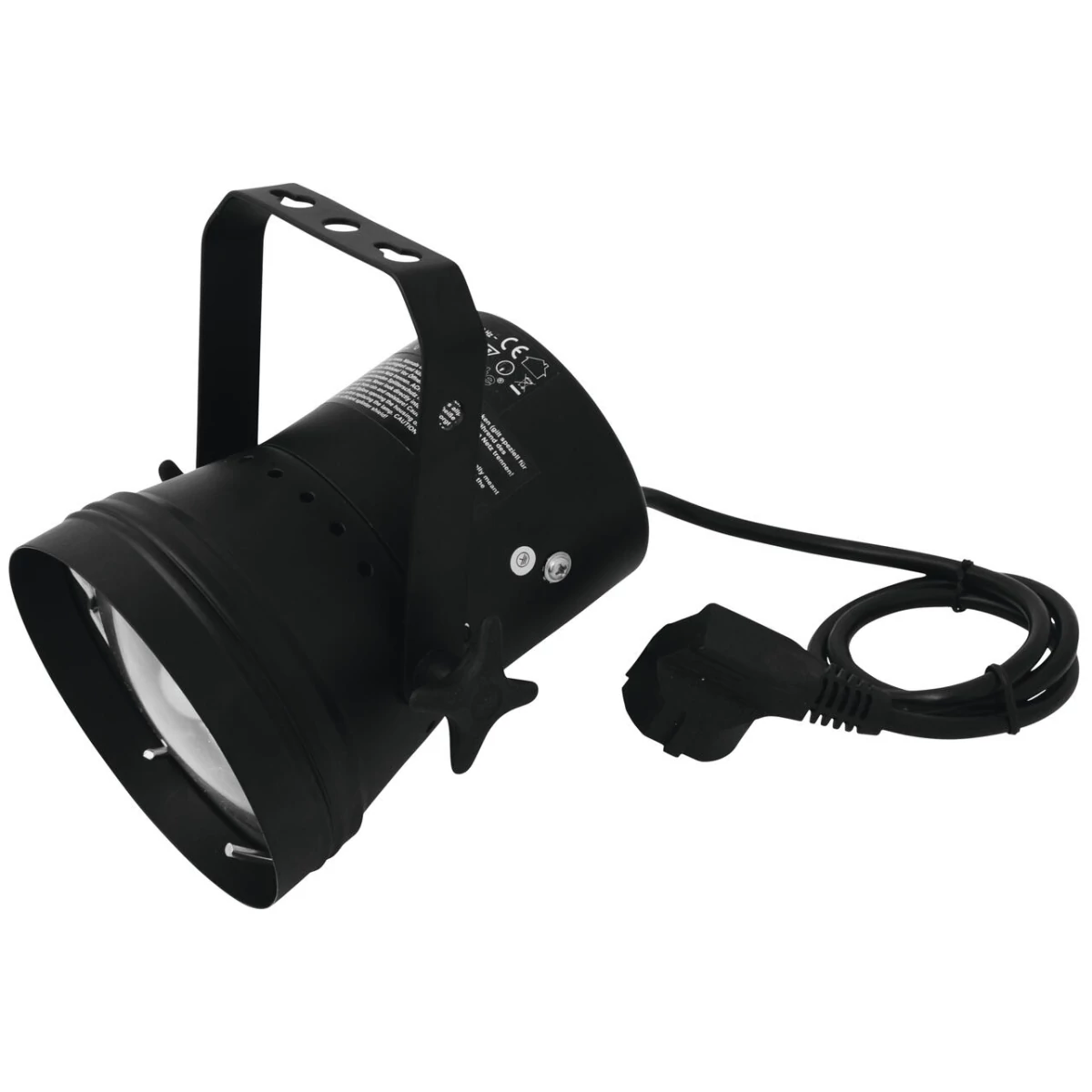

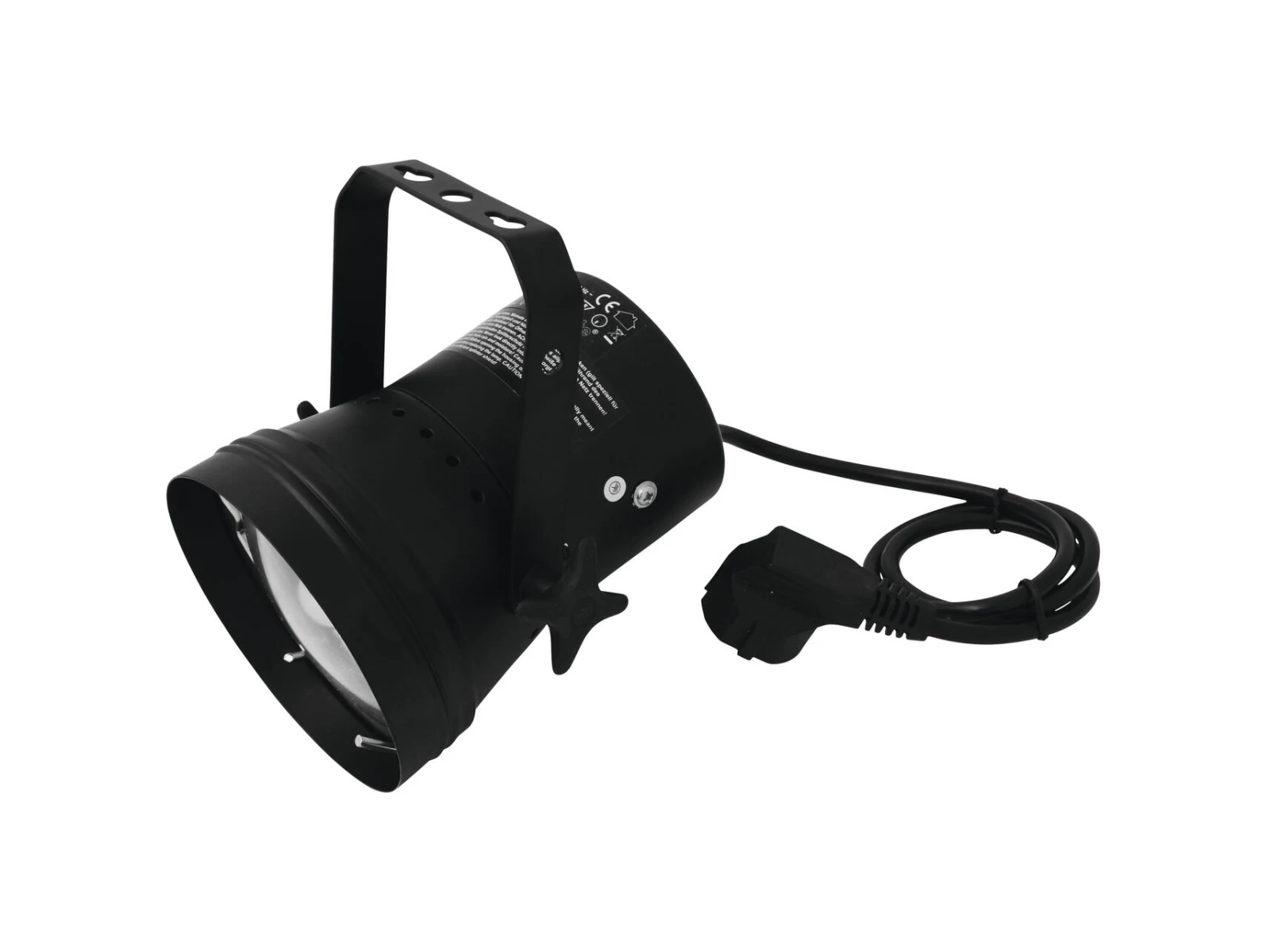

Pinspot with PAR-36 6V/30W lamp
Suitable Pinspot for PAR-36 6V/30 W lampThe Pinspot T-36 is very well suited for illuminating mirror balls, for entrance or counter areas or simply as basic lighting.Its narrow beam angle makes the projection show a 30-centimetre light circle from a distance of four metres. The use of alternative light sources makes several beam angles possible. Color caps or color foils can easily be placed in front of the T-36.The body of the pinspot is available in black and optionally in silver and can be easily locked in place using the retaining clip.
- Narrow beam angle, at a distance of 4 m there is a projected circle of light with a diameter of 30 cm
- Color caps or color foils can be attached in front of the lens
- For illuminating e.g. mirror balls, entrance or counter areas or as basic illumination
- Low power consumption
- Diverse beam angles are possible when using alternative illuminants
- Control via plug and play
- With mounting bracket
- Available in various colors
- For application areas such as: Clubs/dancing school; decoration; party room; restaurants, bars and hotels
- Silent operation
illuminant
- Dimmable
- Very high color rendering index (CRI)
Scope of delivery
- 1 x spotlight
- 1 x illuminant
- 1 x lamp clamping ring
- 1 x user manual
Manuals
ManualsParaméterek
| Power supply | 230 V AC, 50 Hz |
| Power consumption | 30 W |
| IP classification | IP20 |
| Protection class | Protection class I |
| Suitable lamp | PAR-36 G-53 STC |
| Power connection | Fixed power supply cord with safety plug |
| Cable construction | 3 x 0.75 mm² H05VV-F |
| Cable length | Approx. 0.9 m |
| Base | Wires |
| Control | Plug and play |
| Housing color | Black matte |
| Attachment system | Mounting bracket |
| Material | Metal |
| Dimensions | Length:16 cm |
| Width | 15.5 cm |
| Height | 17 cm |
| Weight | 1.23 kg |
| Noise classification | Class 0 (no noise at all) |
| Illuminant | |
| Voltage (lamps) | 6.4 V |
| Nominal wattage | 30 W |
| Base | G-53 STC |
| Lamp type | Halogen lamp; clear lamp |
| Lamp specification | Dimmable |
| Beam angle | 6° |
| Color temperature | 3000K |
| Color rendering index (CRI) | 99 Ra |
| Construction | PAR-36 |
| Mounting bracket | |
| Diameter mounting holes | 3 x Ø10mm; 1 x Ø8mm |
| Material | Metal, 2 mm |
| Lamp clamping ring | |
| Material | Metal |
| Color | Silver |
