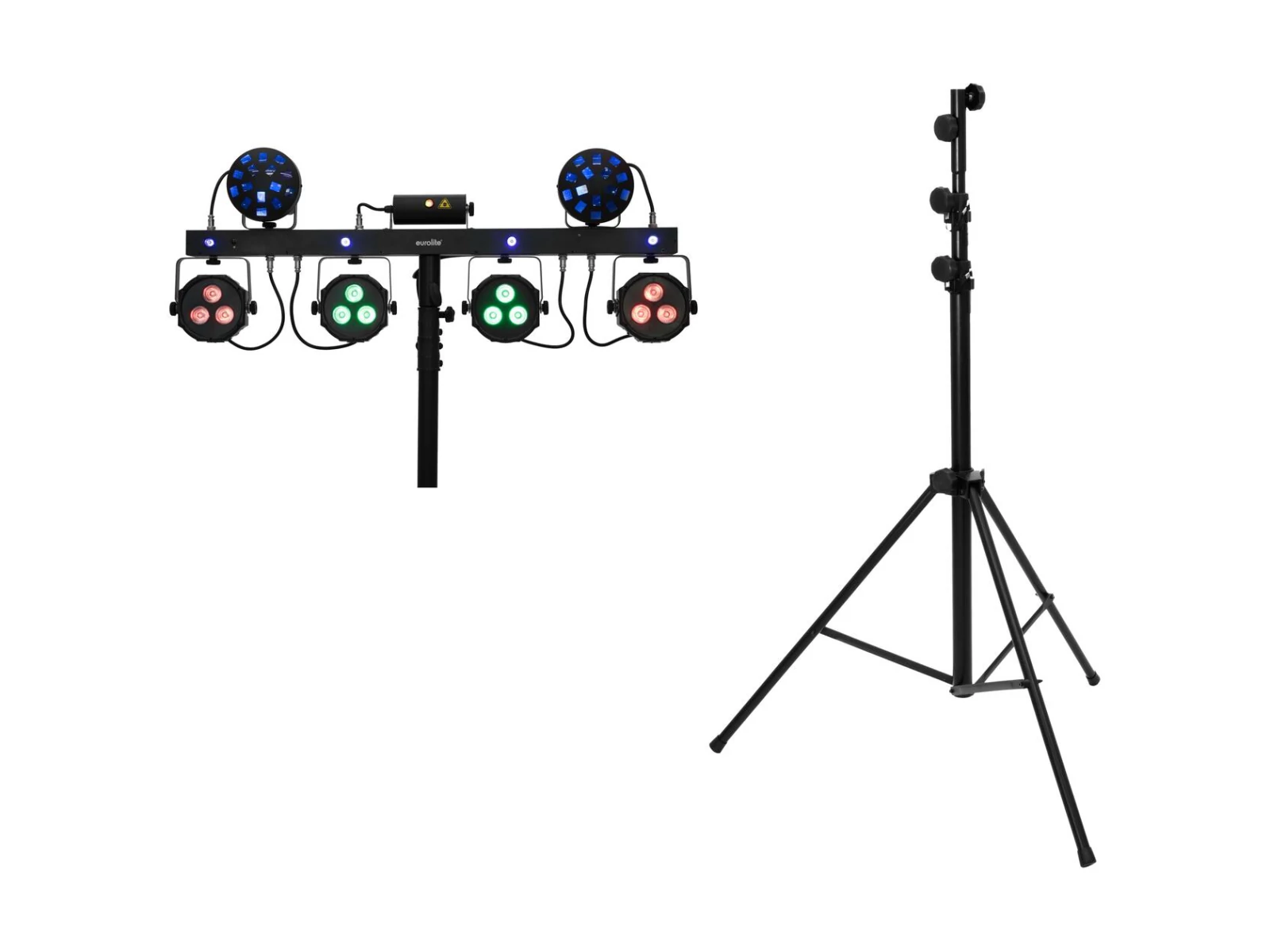

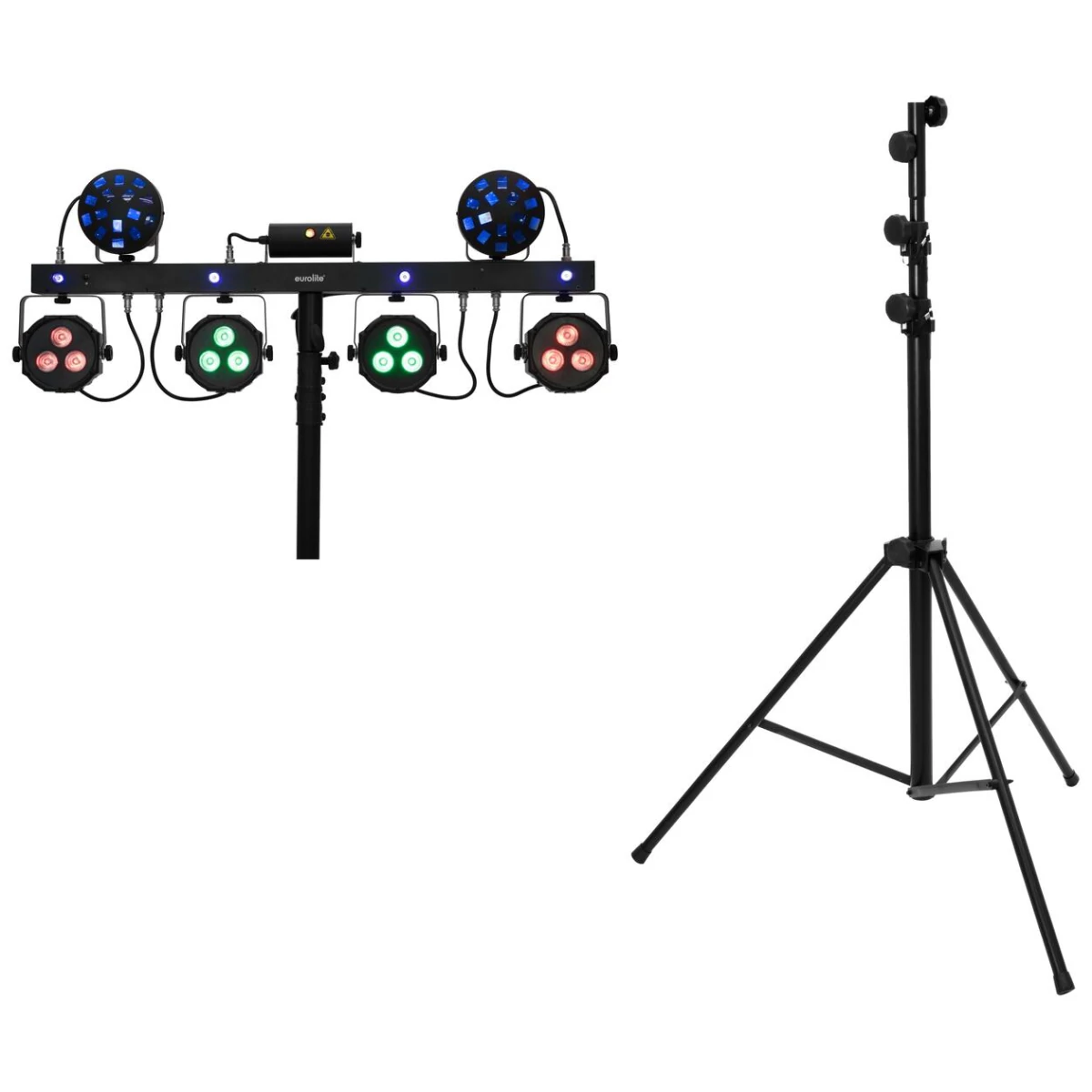

EUROLITE Set LED KLS Laser Bar Next FX Light Set + STV-60-WOT EU Steel Stand black

Ha részletfizetéssel vásárolná meg a terméket, helyezze a kosárba, majd a fizetési módnál jelölje be a Cofidis expressz online áruhitelt.

Leírás

Bar with powerful spots, UV strobe LEDs, laser (RG, 2M), QuickDMX port and carrying bag

EUROLITE LED KLS Laser Bar Next FX Light Set

2 laser diodes project hundreds of red and green laser beams
2 rotating derbies for mirror ball effects
Compact lightweight
Crossbar with integrated DMX control unit and TV spigot for tripod installation
When fog is used, this effect becomes especially attractive
Dimmer electronic; color blend stepless; program selection
26 integrated show programs
The device is cooled by cooling fan
Control via DMX; stand-alone; sound to light via microphone; IR remote control; QuickDMX via USB (optional); wireless footswitch (optional)
Fixtures available for Light Captain; EASY SHOW 2; EASY SHOW 3; Colorchief
TV spigot
With mounting bracket
3 digit 7-segment LED display
Mains input and output for power linking up to 8 units
For application areas such as: Clubs/dancing school; wedding/gala/events; mobile djs / entertainer; party room; restaurants, bars and hotels
Application possibility: On stand

laser

Laser
Laser class 2M
does not require additional protective measures or appointment of a laser safety officer

spotlight

3 LEDs 4 W SMD 9080 4in1 QCL RGB/WW (homogenous color mix)
4 spots controlled separately
With a beam angle of 7°

light effect

4 LEDs 3 W SMD 8072 R/G/B/WW
lighting effects controlled separately
Multi beam effect; fan effect; flower effect

bar

4 LEDs 1.5 W SMD 8072 ultra violet (UV)
LEDs controlled separately
UV effect; strobe effect

EUROLITE STV-60-WOT EU Steel Stand black

Lighting stand, made in EU, maximum load 30 kg, height 150-315 cm

Stable lighting stand for mobile use
Adjustable height
TV spigot
Available in various colors
Made in Europe

Scope of delivery

1 x EUROLITE LED KLS Laser Bar Next FX Light Set

1 x device
1 x user manual
1 x power cord
1 x bag
1 x declaration of conformity
1 x remote control
2 x mounting bracket
2 x knurled screw
2 x washer
1 x terminating plug (power)

1 x EUROLITE STV-60-WOT EU Steel Stand black

1 x stand
1 x user manual

Paraméterek

Weight	16.15 kg
EUROLITE LED KLS Laser Bar Next FX Light Set
Power supply	100-240 V AC, 50/60 Hz
Power consumption	90 W
IP classification	IP20
Protection class	Protection class I
Power connection	Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Cable length	3 m
Power output	1 x P-Con (gray), mounting version
Fuse	T 1 A fuse replaceable
Lamp type	LED lamp
DMX channels	6; 8; 11; 21; 25; 29
DMX input	1 x 3-pin XLR (M) mounting version
DMX output	1 x 3-pin XLR (F) mounting version
Cooling	Cooling fan
Control	DMX; stand-alone; sound to light via microphone; IR remote control; QuickDMX via USB (optional); wireless footswitch (optional)
Fixtures available for	Light Captain; EASY SHOW 2; EASY SHOW 3; Colorchief
Housing color	Black

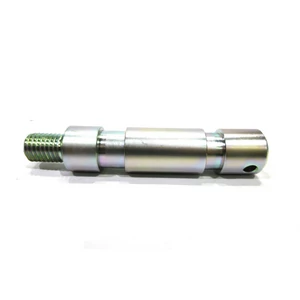

Attachment system	TV spigot Ø 28mm

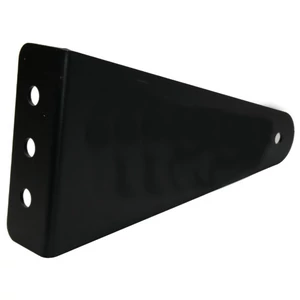

2x mounting bracket
Display type	3 digit 7-segment LED display
Dimensions	Width:111 cm
Depth	15 cm
Height	41 cm
Weight	10.50 kg
Noise classification	Class 2 (slight noise)
Remote control
Battery	Button cell 3.0 V CR2025 lithium manganese built-in
Laser
Laser class	2M
Laser color	R/G
Laser module	Red (R) 100 mW 650nm
Green (G) 30 mW 532nm
Light effect
LED type	4 x 3 W SMD 8072 R/G/B/WW
Spotlight
LED type	3 x 4 W SMD 9080 4in1 QCL RGB/WW (homogenous color mix)
Beam angle (1/2 peak)	Spot 7°
Beam angle (1/10 peak)	Spot 20°
Bar
LED type	4 x 1.5 W SMD 8072 ultra violet (UV)
Flash rate	0 - 30 Hz
EUROLITE STV-60-WOT EU Steel Stand black
Maximum carrying capacity	30 kg
Height	Maximum:320 cm
Minimum	150 cm
Attachment system	TV spigot Ø 28mm
Type (general stands)	Light stand/manual
Material	Steel/magnesium
Color	Black
Transport dimensions	126 cm x 12 cm x 15 cm
Weight	5.65 kg
