Leírás

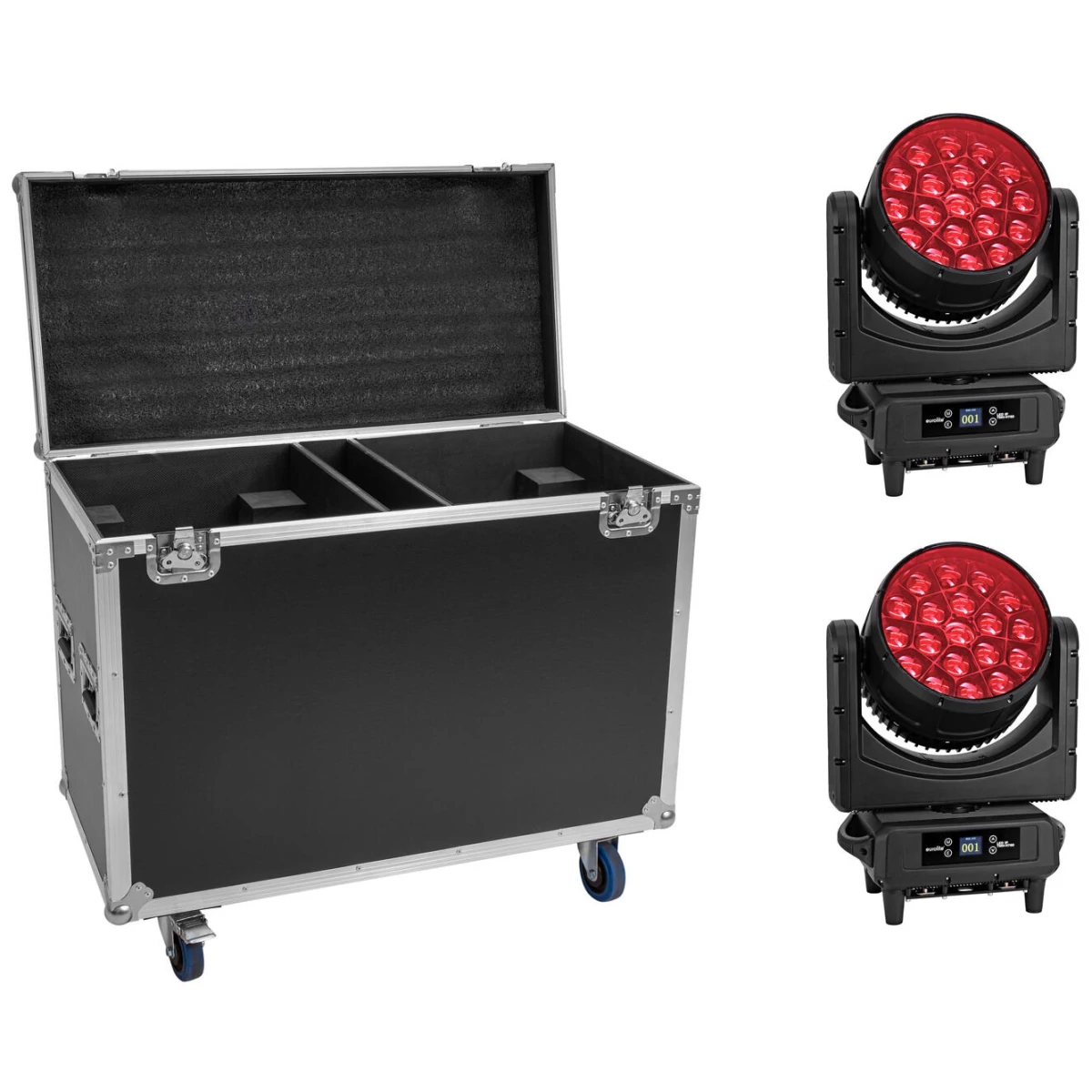

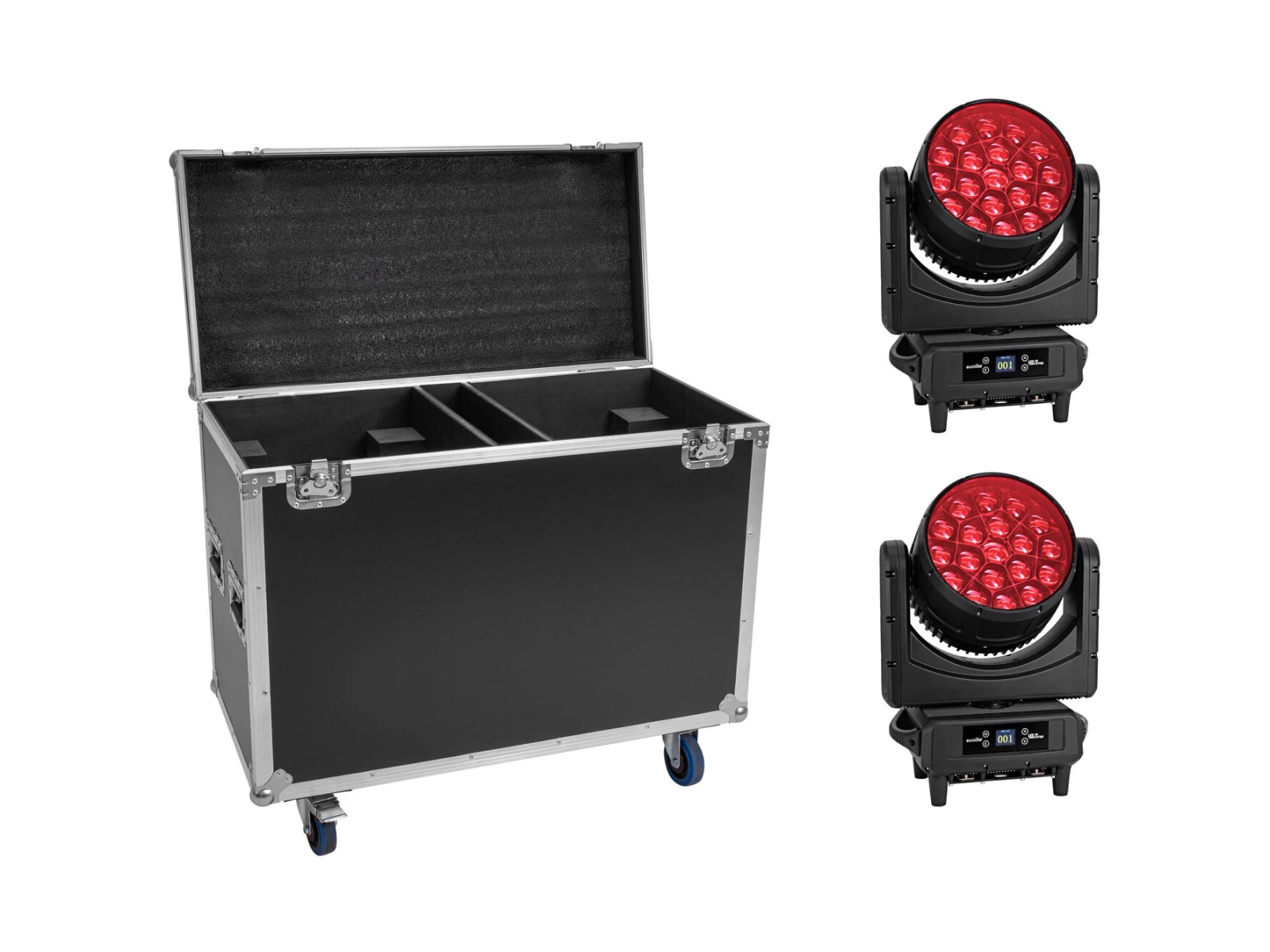

Powerful weather-proof moving washlight with 19x 40W RGBW LEDs, rotating flower effect and pixel control
EUROLITE LED IP TMH-H760 Beam/Wash/Flower Effect
- 19 powerful LEDs 40 W SMD 4in1 QCL RGBW (homogenous color mix)
LEDs controlled separately - Positioning within 540° PAN, 210° TILT
- Auto position correction (feedback)
- Exact positioning (16 bit resolution)
- Zoom motor-driven rotating; lens rotation
- Flower effect; Strobe effect; Wash effect
- With a beam angle of 2° - 30°
- With bracket with hinged hooks
- Multicolor LCD display
- The device is cooled by temperature-controlled fan at the Head; cooling fan at the Base
- For application areas such as: Stage; Rental
- Application possibility: Standing; suspended
- Color blend stepless; colors preset; pulse-width modulation
- Control via stand-alone; DMX; Master/slave function
- Flicker-free
- DMX fail mode (hold; null)
- 2 Rugged carrying handles
- 4 rubber feet
- Mains input and output for power linking up to 3 units
- Built with SEETRONIC connector
- Suitable for outdoor use IP65
- With pressure compensation membrane
- Very quiet working noise
Package contents
- 1 x moving light, 1 x user manual, 1 x power cord, 1 x xLR cable
ROADINGER Flightcase 2x IP TMH-H760 with wheels
Trunk case with castors
- Interior with foam padding
cover with foam padding - Aluminum profile frames 30mm with rounded edges
- 4 hinged, chromium plated case handles
- 2 chrome tip-over locks
- 2 high-quality butterfly locks
- 4 castors with 2 locking brakes
- 4 built-in stacking trays in the cover
- With 2 Device compartments
- With 1 accessory compartment
- For further information about this product, please refer to the Data Sheet under "Downloads"
Paraméterek
| Weight | 77,50 kg |
| EUROLITE LED IP TMH-H760 Beam/Wash/Flower Effect | |
| Power supply | 100-240 V AC, 50/60 Hz |
| Power consumption | 780 W |
| IP classification | IP65 |
| Protection class | Protection class I |
| Power connection | Mains input via IP T-Con (M) power supply cord with safety plug |
| Cable construction | 3 x 1,5 mm² H07RN-F |
| Power output | IP T-Con (F) mounting version |
| Fuse | 5 x 20 mm, T 8 A Fuse replaceable |
| Lamp type | LED lamp |
| LED type | 19 x 40 W SMD 4in1 QCL RGBW (homogenous color mix) |
| Max. TILT movement | 210° Exact positioning (16 bit resolution) Auto position correction (feedback) |
| Max. PAN movement | 540° Exact positioning (16 bit resolution) Auto position correction (feedback) |
| Flash rate | 1 - 20 Hz |
| Equipment | Zoom motor-driven rotating; lens rotation |
| DMX channels | 18; 30; 94 |
| DMX input | 3-pin XLR (M) mounting version IP |
| 5-pin XLR (M) mounting version IP | |
| DMX output | 3-pin XLR (F) mounting version IP |
| 5-pin XLR (F) mounting version IP | |
| Cooling | 2 x temperature-controlled fan at the Head |
| 2 x cooling fan at the Base | |
| Control | Stand-alone; DMX; Master/slave function |
| Projection | Flicker-free |
| DMX fail mode | Hold; null |
| Beam angle | 2° - 30° |
| Beam angle (1/2 peak) | 2 - 16° |
| Beam angle (1/10 peak) | 7 - 30° |
| Illuminance in Lux (lx) | Narrow red (R) 1m:13602 lx, 3m:11354 lx, 6m:4333 lx |
| Narrow green (G) 1m | 31916 lx, 3m:29390 lx, 6m:9454 lx |
| Narrow blue (B) 1m | 3891 lx, 3m:3565 lx, 6m:1777 lx |
| Narrow cold white (CW) 1m | 52981 lx, 3m:45405 lx, 6m:14131 lx |
| Narrow all 3m | 78579 lx, 6m:27552 lx |
| Wide red (R) 1m | 9199 lx, 3m:1243 lx, 6m:336 lx |
| Wide green (G) 1m | 19373 lx, 3m:2700 lx, 6m:736 lx |
| Wide blue (B) 1m | 2768 lx, 3m:575 lx, 6m:163 lx |
| Wide cold white (CW) 1m | 29680 lx, 3m:4088 lx, 6m:1109 lx |
| Wide all 1m | 56588 lx, 3m:8061 lx, 6m:2192 lx |
| Lamp life | 10000 h |
| Housing color | Black |
| Attachment system | Ø 50 mm |
| 2x bracket with hinged hooks | |
| Display type | Multicolor LCD display |
| Carrying handle | 2 pc/pcs |
| Transport aid | 4 x rubber feet |
| Use of brands | Built with SEETRONIC connector |
| Material | Aluminum casting |
| Dimensions | Width:41,0 cm |
| Depth | 24 cm |
| Height | 55,5 cm |
| Weight | 24,60 kg |
| Noise classification | Class 1 (very slight noise, suitable for noise-sensitive environments) depending on mode used; class 3 (clearly perceptible sounds) |
| Legal specifications | |
| Special product | Not designed for household room illumination |
| Intended use | Show effect lighting |
| ROADINGER Flightcase 2x IP TMH-H760 with wheels | |
| Maximum load | 100 kg |
| Aluminum profile frames | 30 mm |
| Case handle | 4 pc/pcs |
| Stop hinge | 2 pc/pcs |
| Lock | Butterfly lock:2 pc/pcs |
| Transport aid | 4 x castors with 2 locking brakes |
| 4 x built-in stacking trays in the cover | |
| Material | Plywood multi-layer glued |
| Color | Black, laminated |
| Device compartment | 39 cm x 42 cm x 61 cm |
| Accessory compartment | 8 cm x 42 cm x 24 cm |
| Inside dimensions | 90 cm x 42 cm x 61 cm |
| Dimensions | Width:95 cm |
| Depth | 47 cm |
| Height | 80 cm |
| Weight | 28,30 kg |
