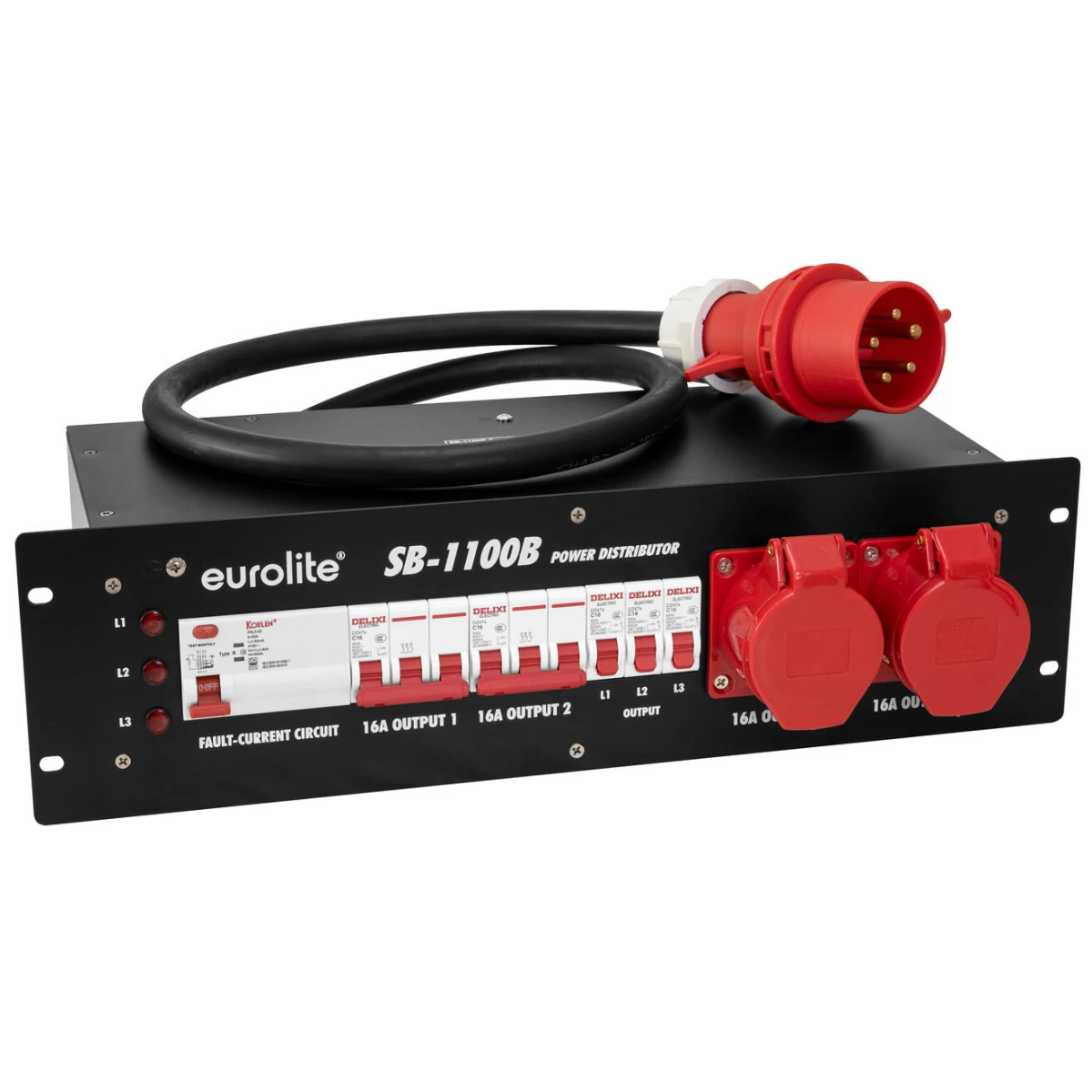

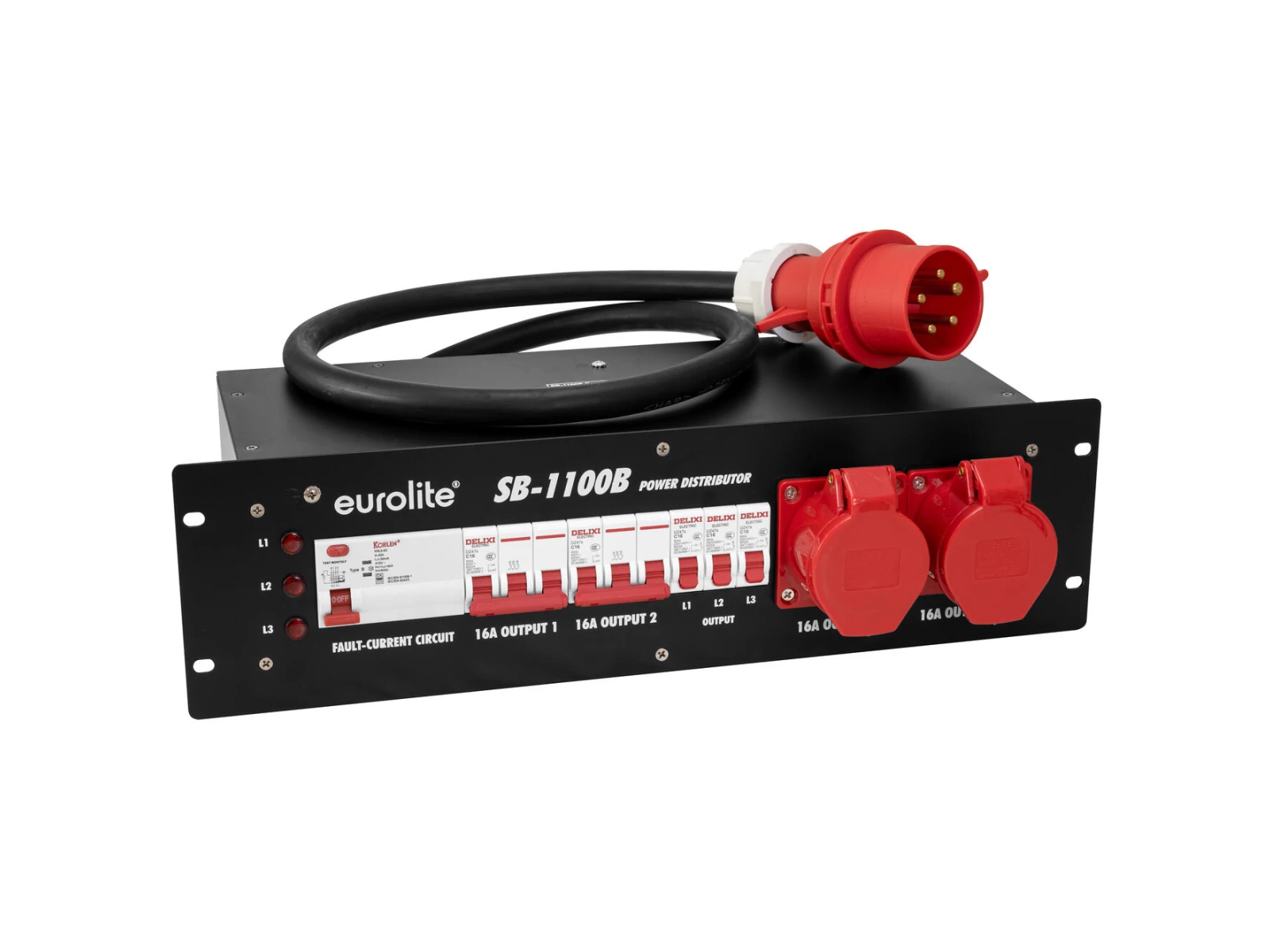

Practical 32 A distributor in 483 mm housing (19")
- Specially designed for larger distribution needs
- With M6 earthing screw in order to ground a rigg if necessary
- (19") 48.3 cm rack installation 3 U
Package contents
- 1 x device, 1 x user manual
Manuals
ManualsParaméterek
| Power supply | 380-400V AC, 50Hz |
| IP classification | IP20 |
| Power connection | Fixed power supply cord with CEE 32A 5-pin |
| Power output | 1 x CEE 32A 5-pol (F) recessed mounting Bypass |
| 6 x Safety contact (F), hinged lid mounting version fused | |
| 2 x CEE 16A 5-pol (F) recessed mounting fused | |

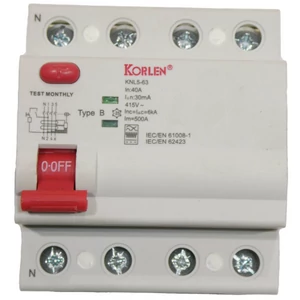

| Protection | 1 x fault-current circuit breaker (FI) Typ B 40A/0,03A 4-pol |
| 2 x circuit breaker C 16A 3-pol | |
| 3 x circuit breaker C 16A 1-pol | |
| Phase status display | 3 |
| Housing design | (19") 48.3 cm rack installation 3 U |
| Dimensions | Width:48,3 cm |
| Depth | 29,5 cm |
| Height | 13,35 cm |
| Weight | 6,45 kg |
