Extremely bright R/G/B/WW LED beam effect, incl. IR remote-control

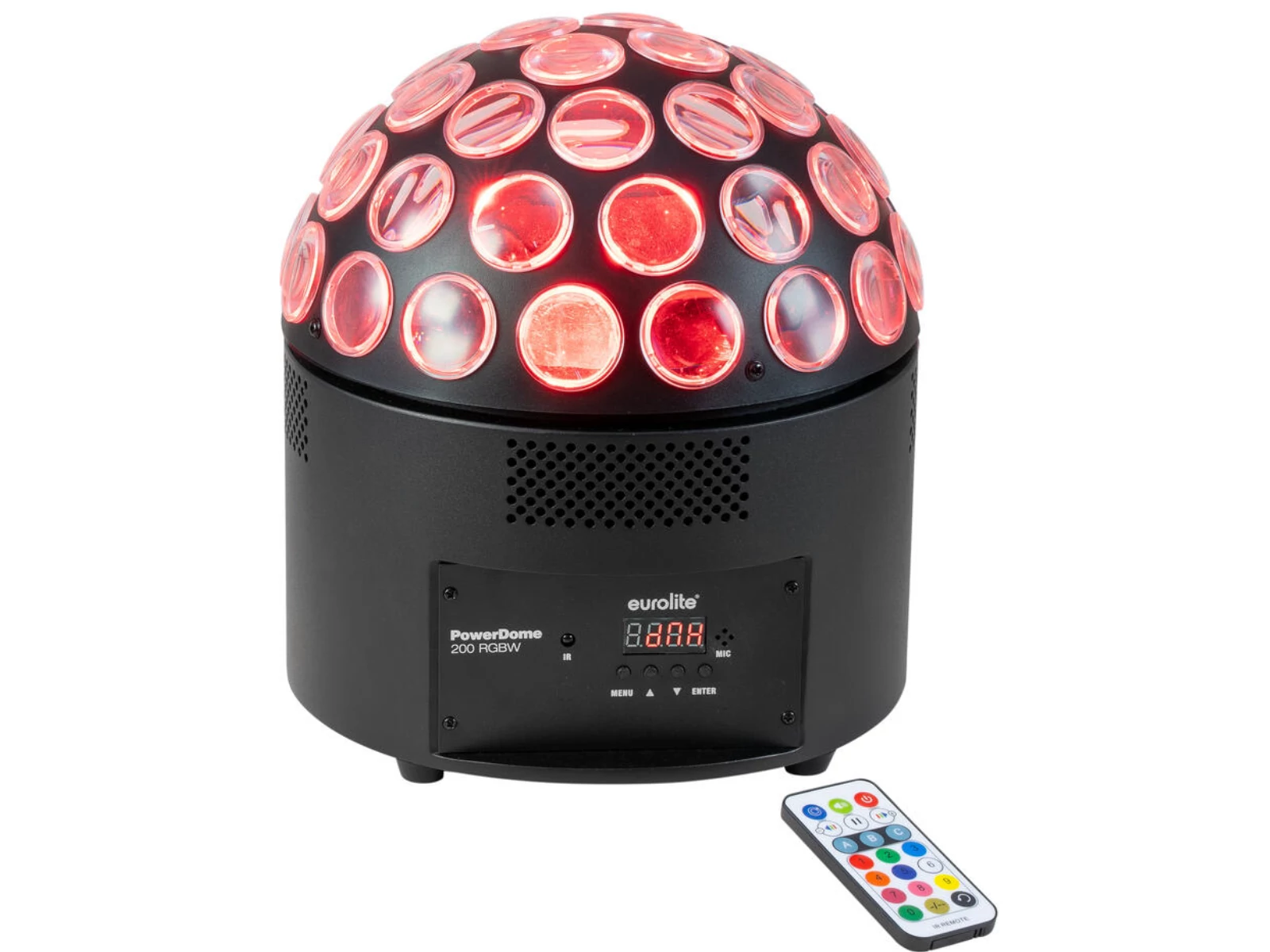

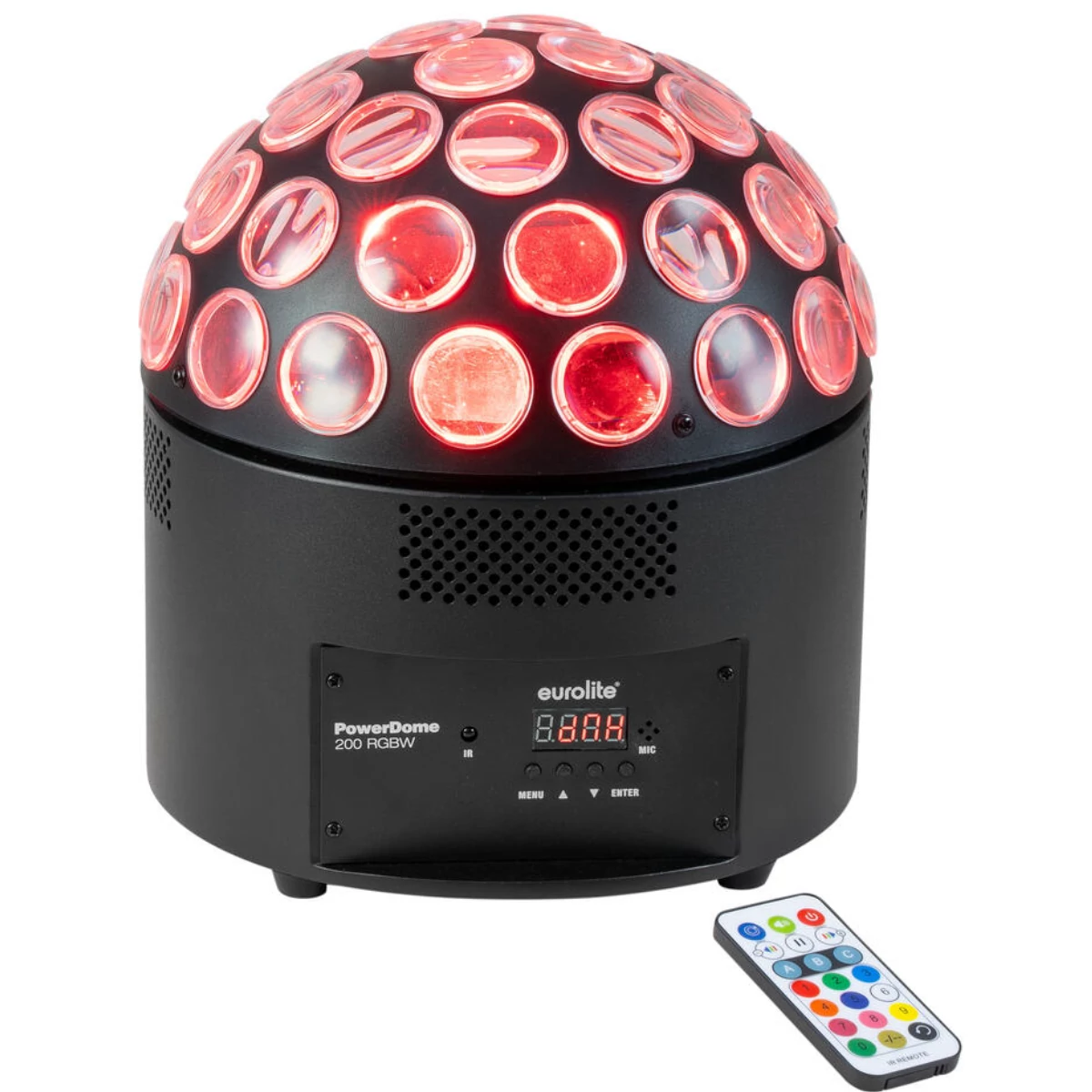

The classic mirror ball effect is a must-have for any party, but traditional mirror balls are often not very practical for mobile use. This fixture recreates that iconic effect while offering much more.Equipped with twenty powerful 10 W LEDs, it projects numerous light points into the room through 42 lenses. The rotating lens dome can be adjusted in both speed and direction, accurately simulating the mirror ball effect: from slow, elegant rotations to fast, dynamic movements.The color mixing is based on red, green, blue, and warm white. The specially tuned warm white closely resembles the classic look of a mirror ball illuminated by a halogen spotlight, while the additional colors allow for a wide range of vibrant effects and combinations.
- 20 LEDs 10 W high-power R/G/B/WW
- Dimmer electronic; color change adjustable speed; color fade adjustable speed; color selection manual; effect speed adjustable; program selection manual; pulse effect adjustable; Rotation speed adjustable speed; Rotation direction changing
- Multi beam effect; strobe effect
- 5 integrated show programs
- Direct color selection for 15 preset colors
- The device is cooled by cooling fan at the base
- Control via IR remote control; DMX; QuickDMX (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); stand-alone; master/slave function; sound to light via microphone
- Fixtures available for Light´J; Light Captain
- Flicker-free
- DMX fail mode (blackout; hold; auto; full on)
- With omega bracket
- Monochrome 4 digit 7-segment LED display
- For application areas such as: Clubs/dancing school; wedding/gala/events; party room; mobile djs / entertainer; restaurants, bars and hotels
- Application possibility: Standing; suspended; wall mounting
Scope of delivery
- 1 x light effect
- 1 x power cord
- 1 x omega bracket
- 1 x remote control
- 1 x battery
- 1 x user manual
- 1 x plug (male)
Manuals
ManualsParaméterek
| Power supply | 100-240 V AC, 50/60 Hz |
| AC | |
| Power consumption | Approx. 190 W |
| IP classification | IP20 |
| Protection class | Protection class I |
| Power connection | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Fuse | 5 x 20 mm, T 2.5 A fuse replaceable |
| Lamp type | LED lamp |
| LED type | 20 x 10 W high-power R/G/B/WW |
| Flash rate | 0.5 - 25 Hz |
| DMX channels | 2; 3; 4; 5; 10 |
| DMX input | 1 x 3-pin XLR (M) mounting version |
| DMX output | 1 x 3-pin XLR (F) mounting version Bypass |
| Cooling | 1 x cooling fan at the base |
| Control | IR remote control; DMX; QuickDMX (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); stand-alone; master/slave function; sound to light via microphone |
| Fixtures available for | Light´J; Light Captain |
| Projection | Flicker-free |
| DMX fail mode | Blackout; hold; auto; full on |
| Housing color | Black matte |
| Attachment system | Omega bracket |
| Display type | Monochrome 4 digit 7-segment LED display |
| USB port | 1 x type A |
| Material | Metal, 1.2 mm, painted |
| Dimensions | Height:26.6 cm |
| Diameter | Ø 24.25 cm |
| Weight | 5.30 kg |
| Noise classification | Class 2 (slight noise) |
| Power cord | |
| Cable construction | 3 x 1.0 mm² H05VV-F |
| Cable length | Approx. 1.4 m |
| Omega bracket | |
| Diameter mounting holes | 1 x Ø13mm |
| Material thickness | 3 mm |
| Dimensions | Length:14 cm |
| Width | 3.5 cm |
| Height | 3.5 cm |
| Battery | |
| Battery | 1 x button cell 3.0 V CR2025 lithium manganese built-in |
| Legal specifications | |
| Special product | Not designed for household room illumination |
| Intended use | Show effect lighting |
