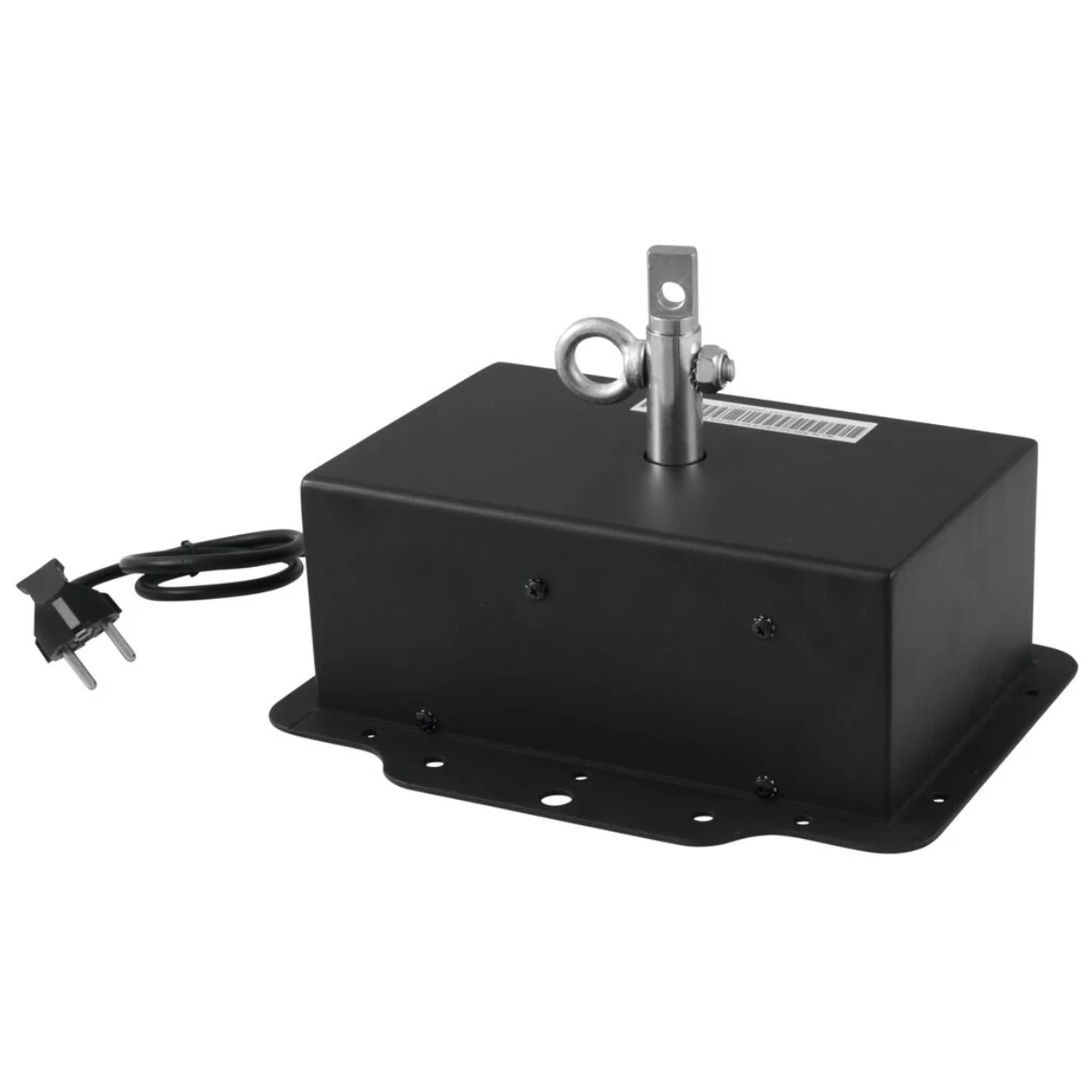

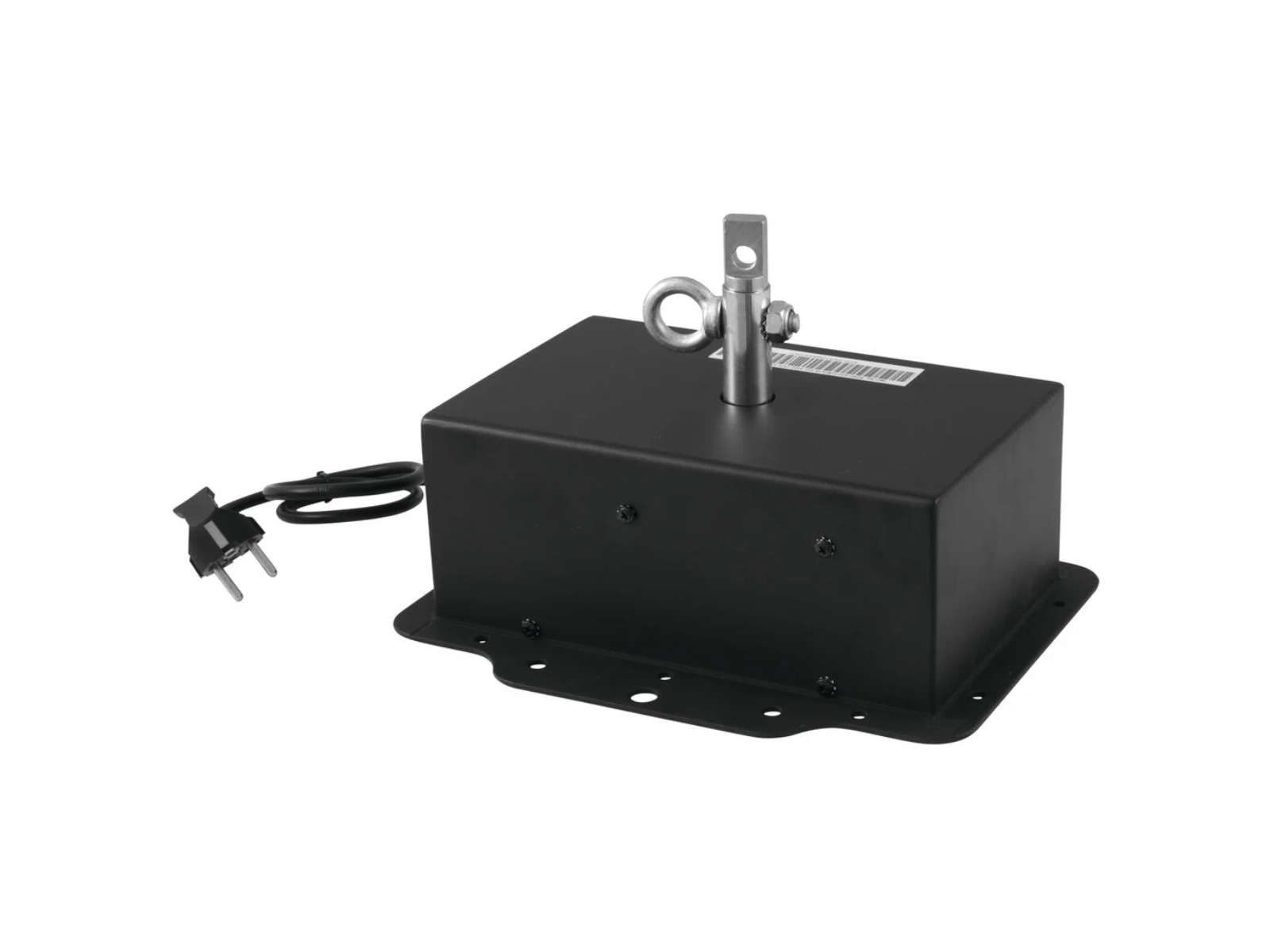

EUROLITE MD-3030 DMX Safety Rotary Motor

65.900 Ft (51.890 Ft + ÁFA)
Menny.:db
Szállítási díj: Ingyenes
Garancia: 1 év
Raktárkészlet: Raktáron
Cikkszám: 50301530
Jelölje be azokat a kiegészítő termékeket, amiket még a kosárba szeretne tenni!

Leírás

DMX controlled motor for mirror balls up to 100 cm, up to 5 RPM
This solid mirror ball motor can carry a load of up to 40 kg. This equals a mirror ball of approximately 100 cm, 12-fold safety margin included. The motor has an adjustable speed. This creates either peaceful or more rapid effects.To make the most of these effects, you can add a pin spot to illuminate the mirror ball. The rotating direction and speed can be controlled via the DIP switches or any commercial DMX controller. For bigger light installations, a master-slave operation with multiple devices working in sync is also possible; no external control required.The motor is equipped with a patented mechanical drop protection against unintentional loosening of the axis as well as the required second eyelet for the attachment of the safety chain.All Eurolite safety motors comply with the safety norm DIN EN ISO 12100 and relevant accident prevention regulations. Each production charge is subject to strict quality control which makes the motor suitable for discotheques and other public events. The MD-3030 is delivered ready to use with safety plug and power cord.

  • Suitable for driving mirror balls up to a maximum weight of 40 kg
  • This weight corresponds with a diameter of 100 cm for the EUROLITE mirror balls
  • The maximum load always means the mirror ball weight including the mirror ball chain, the safety chain and the fixation material
  • Stand-alone, master/slave and DMX mode
  • Rotation direction and rotation speed adjustable
  • DMX addressing and settings via DIP switches
  • 2 chains and 4 quick links must be ordered separately
  • For professional use, e.g. in discotheques and in public places, the EN DIN 15560 norms have to be considered
  • The motor always has to be installed with a secondary safety attachment
  • Before taking into operation for the first time, the installation has to be approved by an expert
  • Suitable for a mirror ball with a diameter of up to 100 cm

Motor

  • Controlling by stand-alone
  • Preprogrammed in LED PC-Control 512

Manuals

Manuals

Paraméterek

Power supply 230 V AC, 50 Hz
Power consumption 16 W
IP classification IP20
Protection class Class I
Power connection Fixed power supply cord with safety plug
Cable construction 3 x 0,75 mm² H05VV-F
Speed To 5 RPM; forward/backward
Maximum load 40 kg
Max. mirror ball diameter 100 cm (EUROLITE)
Dimensions Width:28,5 cm
Depth 23,5 cm
Height 19 cm
Weight 6,40 kg
Motor
Control Stand-alone; LED PC-Control 512
