Leírás

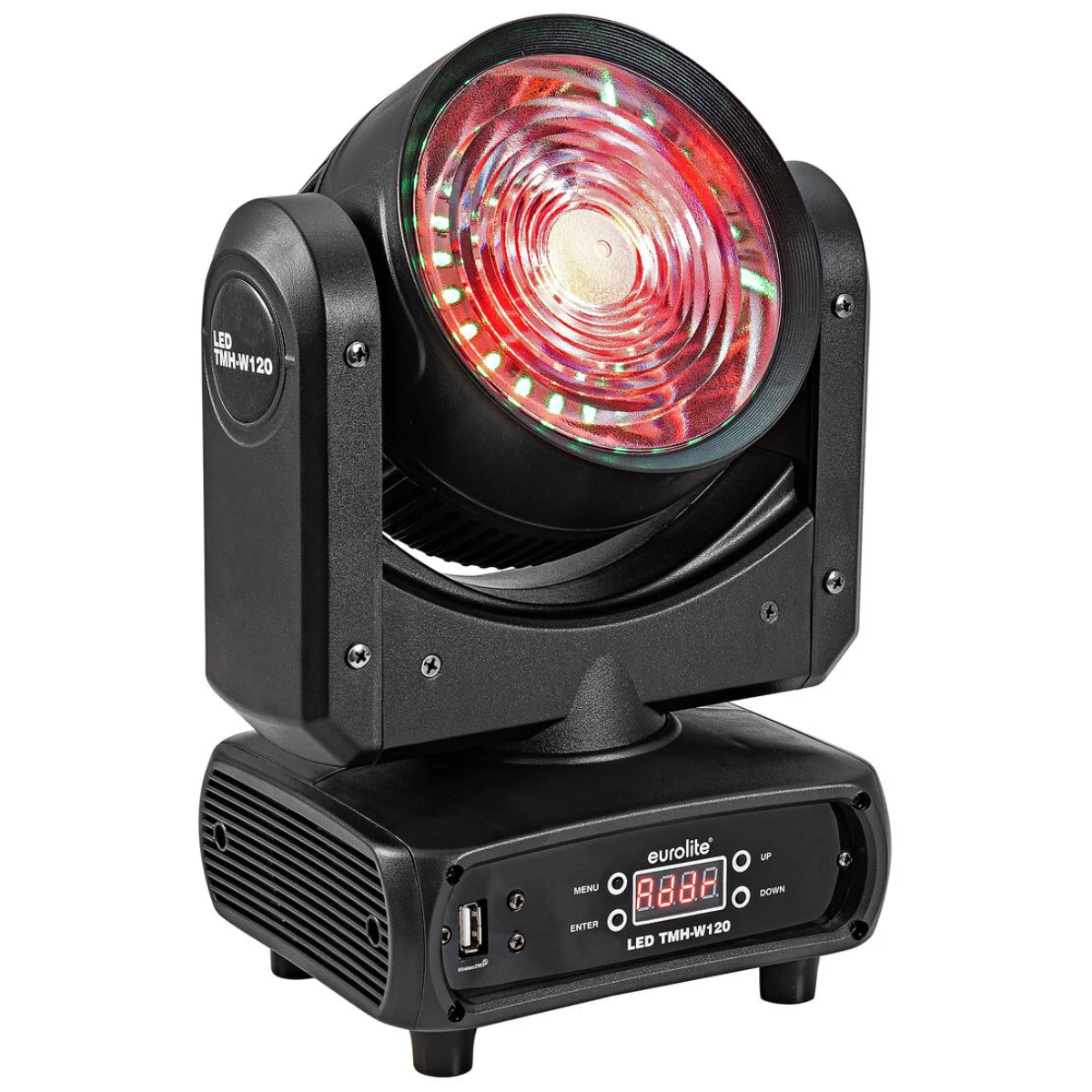

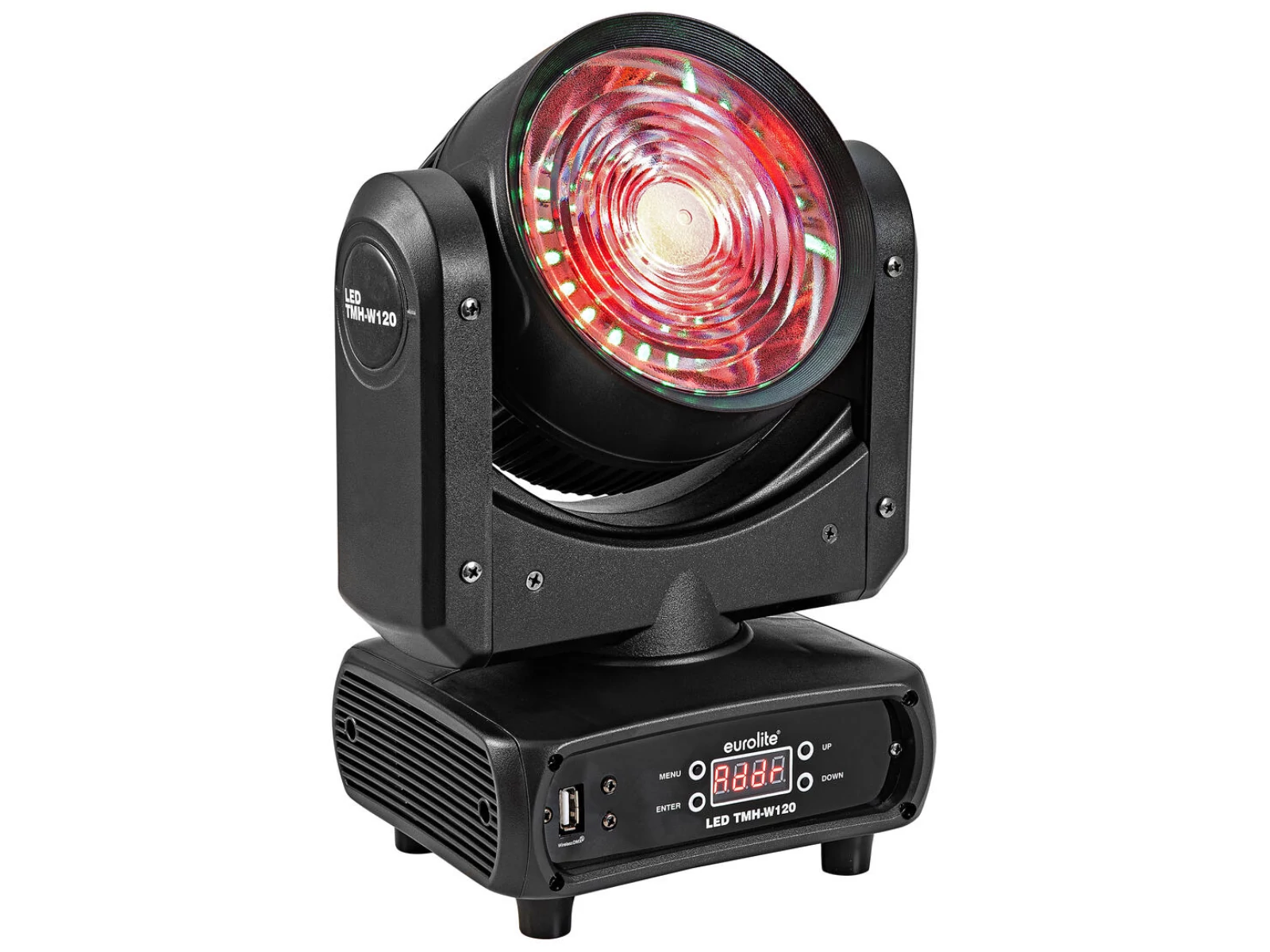

Compact LED moving head wash with 120 W RGB/WW LED and backlighting via RGB hypno LEDs
- 1 powerful LED 120 W COB (chip-on-board) 4in1 QCL RGB/WW (homogenous color mix)
- 26 powerful LEDs 0,2 W SMD 5050 3in1 TCL RGB (homogenous color mix)
- Positioning within 540° PAN, 200° TILT
- Exact positioning (16 bit resolution)
- Dimmer; dimmer curves adjustable
- Wash effect
- The device is cooled by temperature-controlled fan at the Head; low-noise cooling fan at the base
- Control via stand-alone; sound to light via microphone; DMX; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional); master/slave function
- Flicker-free
- DMX fail mode (hold; zero values)
- With a beam angle of 11°
- With omega bracket
- 4 digit 7-segment LED display
- 4 x rubber feet
- Mains input and output for power linking up to 8 units
Package contents
- 1 x moving light, 1 x user manual, 1 x power cord, 1 x omega bracket
Manuals
Manuals
Paraméterek
| Power supply | 100-240 V AC, 50/60 Hz |
| Power consumption | 130 W |
| IP classification | IP20 |
| Protection class | Protection class I |
| Power connection | Mains input via P-Con (blue), mounting version power supply cord with safety plug |
| Power output | P-Con (gray), mounting version |
| Fuse | 5 x 20 mm, T 2 A fuse replaceable |
| Lamp type | LED lamp |
| LED type | 1 x 120 W COB (chip-on-board) 4in1 QCL RGB/WW (homogenous color mix) |
| 26 x 0,2 W SMD 5050 3in1 TCL RGB (homogenous color mix) | |
| Max. TILT movement | 200° exact positioning (16 bit resolution) |
| Max. PAN movement | 540° exact positioning (16 bit resolution) |
| Flash rate | 1 - 20 Hz |
| DMX channels | 23 |
| DMX input | 3-pin XLR (M) mounting version |
| DMX output | 3-pin XLR (F) mounting version |
| Cooling | 1 x temperature-controlled fan at the Head |
| 1 x low-noise cooling fan at the base | |
| Control | Stand-alone; sound to light via microphone; DMX; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional); master/slave function |
| Projection | Flicker-free |
| PWM frequency | 20000 Hz |
| DMX fail mode | Hold; zero values |
| Beam angle | 11° |
| Beam angle (1/2 peak) | 11° |
| Beam angle (1/10 peak) | 20° |
| Illuminance in Lux (lx) | Red (R) 1m:11680 lx, 3m:1064 lx, 6m:257 lx |
| Green (G) 1m | 21059 lx, 3m:1883 lx, 6m:429 lx |
| Blue (B) 1m | 4476 lx, 3m:434 lx, 6m:102 lx |
| Warm white (WW) 1m | 19730 lx, 3m:1711 lx, 6m:408 lx |
| All 1m | 52623 lx, 3m:4746 lx, 6m:1108 lx |
| Housing color | Black |
| Attachment system | Omega bracket |
| Display type | 4 digit 7-segment LED display |
| USB port | Type A |
| Transport aid | 4 x rubber feet |
| Diameter mounting holes | 1 x Ø10mm |
| Material | Plastic |
| Dimensions | Width:20 cm |
| Depth | 14 cm |
| Height | 29 cm |
| Weight | 3,60 kg |
| Legal specifications | |
| Special product | Not designed for household room illumination |
| Intended use | Show effect lighting |
