Leírás

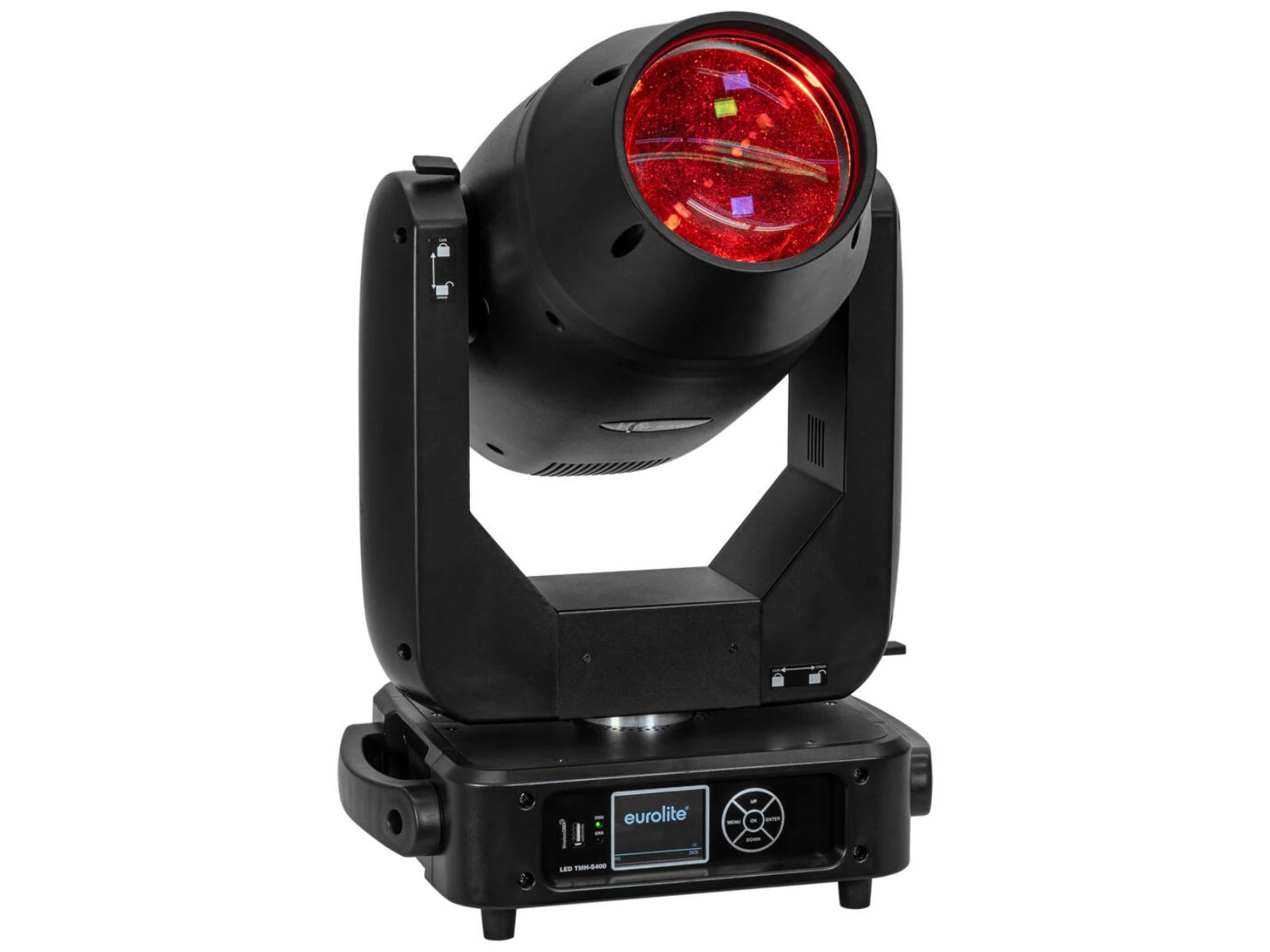

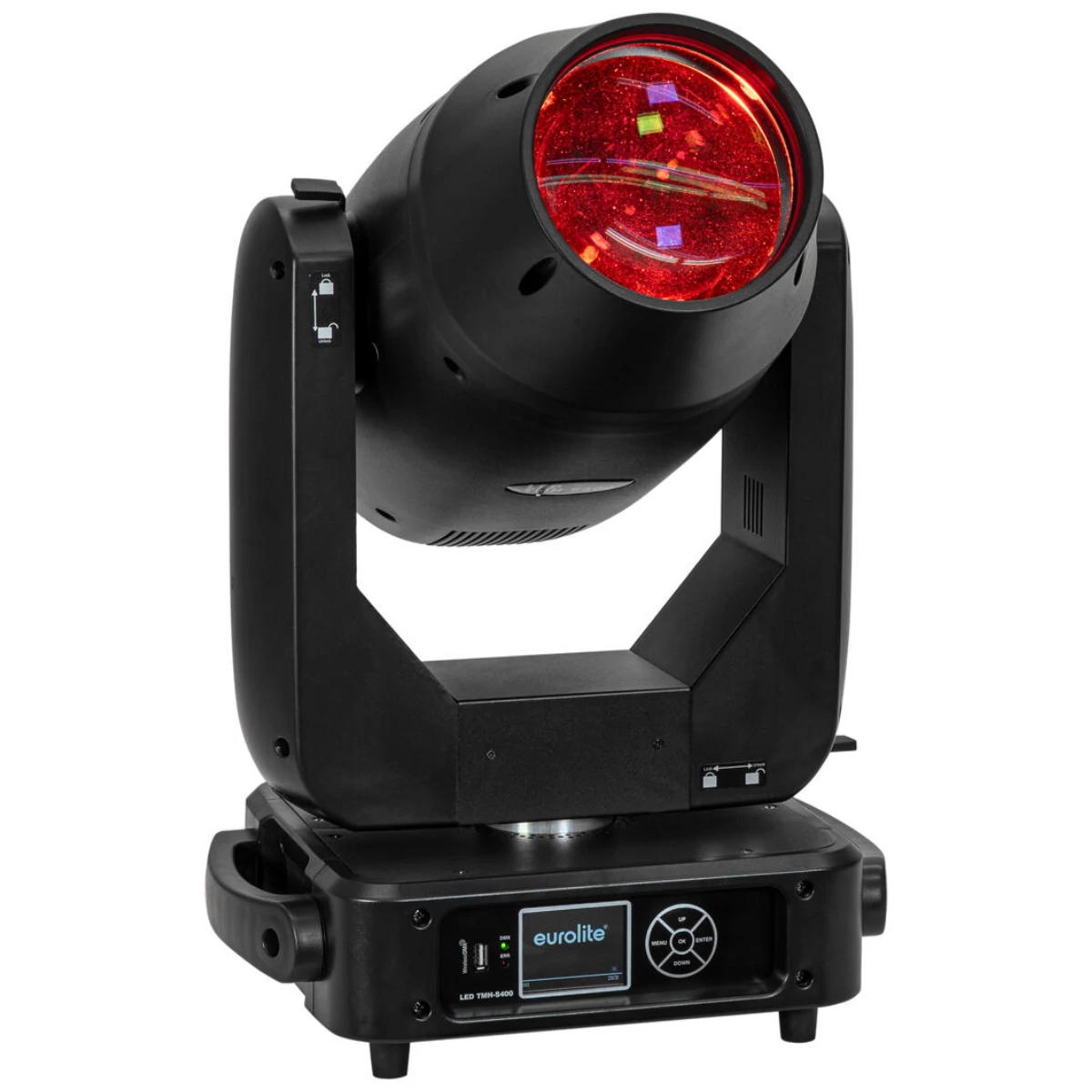

LED moving head hybrid with 400 W COB LED, color wheel, CMY color mixing, static and rotating gobo wheel, prisms, focus, zoom and frost
- 1 LED 400 W COB (chip-on-board) cold white (CW)
- Positioning within 540° PAN, 220° TILT
- Auto position correction (feedback)
- Exact positioning (16 bit resolution)
- Color wheel; gobo wheel with static gobos; gobo wheel with rotating gobos; frost filter; zoom motor driven; focus motor-driven; prism 6-fold rotating linear; prism 8-fold rotating
- Dimmer curves adjustable; frost filter
- Spot effect
- CMY color mixing for indefinite color variations
- Color wheel with 12 dichroic filters plus open
- Gobo wheel with rotating gobos, 7 gobos and open
slot-in gobo system for easy gobo replacement - Shake effect
- Gobo indexable
- Gobo wheel with static gobos, 12 gobos and open
shake effect - The device is cooled by cooling fan at the base; temperature-controlled fan at the head
- Control via DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); stand-alone; RDM; master/slave function
- Fixtures available for Light Captain; GDTF (GrandMA3)
- Flicker-free
- DMX fail mode (hold; zero values)
- RDM For bidirectional communication over the DMX line
- With a beam angle of 6° - 32°
- With omega bracket
- Multicolor touchscreen display
- 2 Rugged carrying handles
- 4 x rubber feet
- Mains input and output for power linking up to 4 units
- For application areas such as: Stage; clubs/dancing school; wedding/gala/events; rental
- Application possibility: Standing; suspended
Scope of delivery
- 1 x moving light
- 1 x user manual
- 1 x power cord
- 2 x omega bracket
Manuals
ManualsParaméterek
| Power supply | 100-240 V AC, 50/60 Hz |
| Power consumption | 460 W |
| IP classification | IP20 |
| Protection class | Protection class I |
| Power connection | Mains input via P-Con (blue), mounting version power supply cord with safety plug |
| Cable construction | 3 x 1.0 mm² H05VV-F |
| Power output | P-Con (gray), mounting version |
| Fuse | 5 x 20 mm, T 5 A fuse replaceable |
| Lamp type | LED lamp |
| LED type | 1 x 400 W COB (chip-on-board) cold white (CW) |
| Max. TILT movement | 220° exact positioning (16 bit resolution) auto position correction (feedback) |
| Max. PAN movement | 540° exact positioning (16 bit resolution) auto position correction (feedback) |
| Flash rate | 0.3 - 19 Hz |
| Equipment | Color wheel; gobo wheel with static gobos; gobo wheel with rotating gobos; frost filter; zoom motor driven; focus motor-driven; prism 6-fold rotating linear; prism 8-fold rotating |
| Color generation | CMY color mixing for indefinite color variations |
| Color generation | Color wheel with 12 dichroic filters plus open |
| Gobos | Gobo wheel with rotating gobos, 7 gobos and open |
| Outside diameter 22mm | |
| Image diameter 15mm | |
| Slot-in gobo system for easy gobo replacement | |
| Shake effect | |
| Gobo indexable | |
| Gobo wheel with static gobos, 12 gobos and open | |
| Shake effect | |
| DMX channels | 22; 25 |
| DMX input | 3-pin XLR (M) mounting version |
| DMX output | 3-pin XLR (F) mounting version |
| Cooling | 1 x cooling fan at the base |
| 2 x temperature-controlled fan at the head | |
| Control | DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); stand-alone; RDM; master/slave function |
| Fixtures available for | Light Captain; GDTF (GrandMA3) |
| Projection | Flicker-free |
| PWM frequency | 16000 Hz |
| DMX fail mode | Hold; zero values |
| DMX features | RDM For bidirectional communication over the DMX line |
| Beam angle | 6° - 32° |
| Beam angle (1/2 peak) | 6 - 32° |
| Beam angle (1/10 peak) | 6 - 32° |
| Illuminance in Lux (lx) | Wide cold white (CW) 1m:71405 lx, 3m:10342 lx, 6m:2770 lx |
| Housing color | Black |
| Attachment system | 2x omega bracket |
| Display type | Multicolor touchscreen display |
| Control elements | Power switch |
| Status LED | DMX, fault |
| USB port | Type A |
| Carrying handle | 2 pc/pcs |
| Transport aid | 4 x rubber feet |
| Material | Metal |
| Dimensions | Width:38 cm |
| Depth | 27 cm |
| Height | 64.5 cm |
| Weight | 23.25 kg |
| Noise classification | Class 2 (slight noise) |
| Legal specifications | |
| Special product | Not designed for household room illumination |
| Intended use | Show effect lighting |
