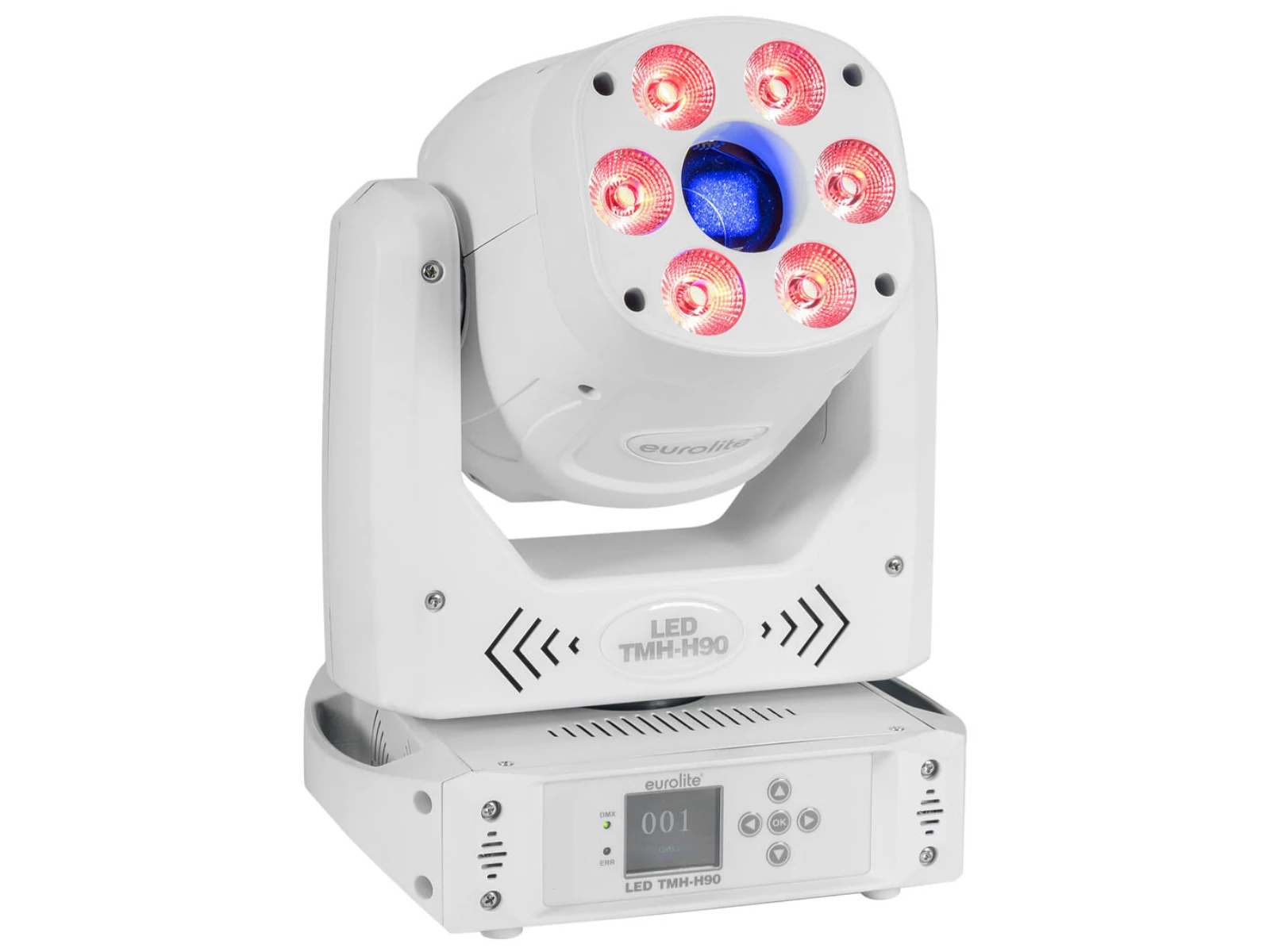

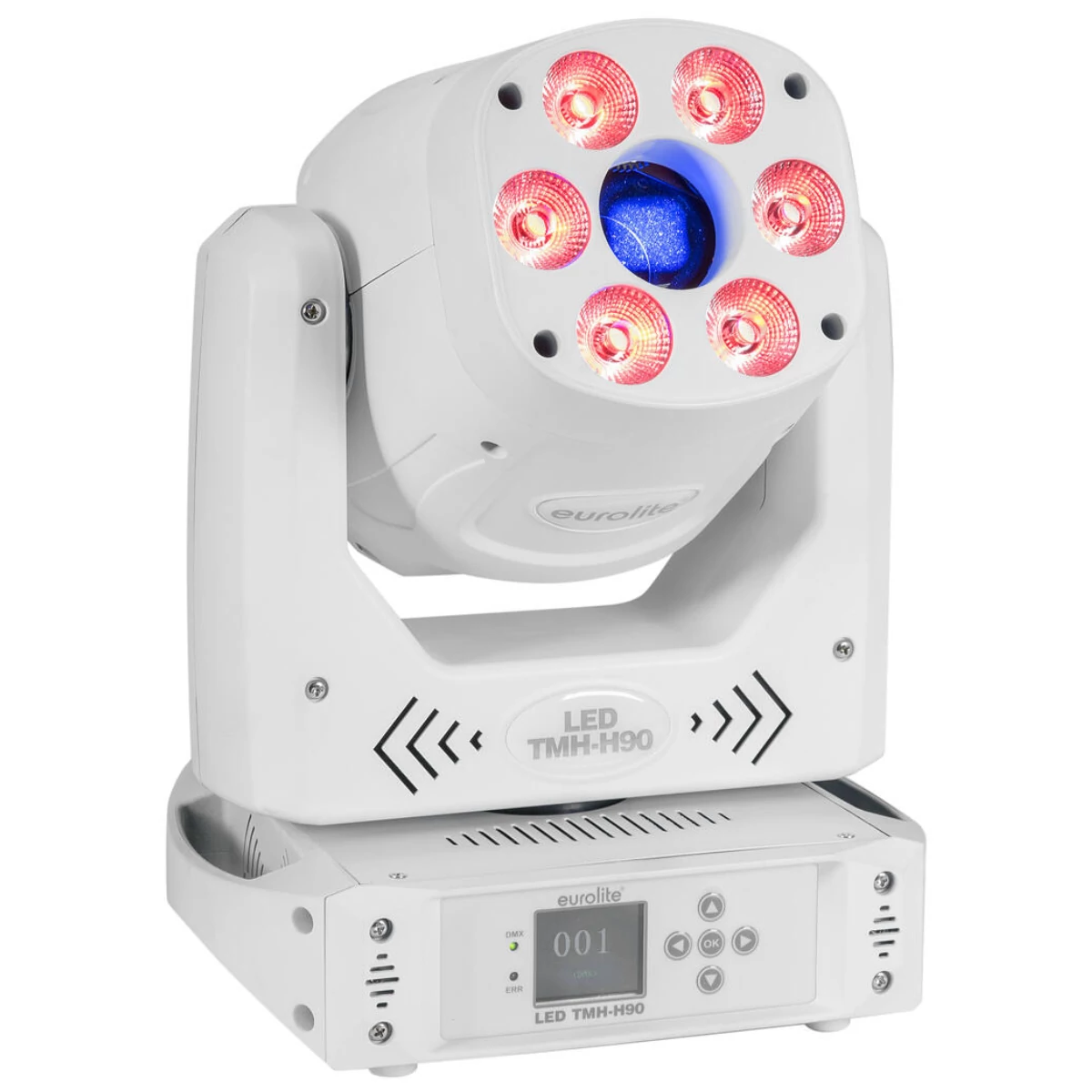

EUROLITE LED TMH-H90 Hybrid Moving-Head Spot/Wash COB wh

Ha részletfizetéssel vásárolná meg a terméket, helyezze a kosárba, majd a fizetési módnál jelölje be Cetelem Online Áruhitelt.

Leírás

LED Moving Head hybrid spot/wash with color wheel, static and rotating gobo wheel, prism and focus

Bright spotlight and full-fledged washlight in one device
1 powerful LED 90 W COB (chip-on-board) cold white (CW)
6 powerful LEDs 10 W high-power 6in1 HCL RGBWA/UV (homogenous color mix)
Positioning within 540° PAN and 200° TILT
Auto position correction (feedback)
Exact positioning (16 bit resolution)
Prism 3-fold rotating; gobo wheel with rotating gobos; gobo wheel with static gobos; Focus motor-driven; color wheel
Gobo effect
Color wheel with 7 dichroic filters plus open
half colors selectable, Rainbow effect with adjustable speed in both directions
Gobo wheel with static gobos, 7 gobos and open
shake effect
Gobo wheel with rotating gobos, 6 gobos and open
shake effect
Gobos changeable
Slot-in gobo system for easy gobo replacement
Integrated show programs
The device is cooled by cooling fan
Control via stand-alone; DMX; Sound to light via Microphone; Master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Flicker-free
With a beam angle of 13°
Multicolor LCD display
Dimmer electronic
Preprogrammed in Light Captain; EASY SHOW 3
For application areas such as: Clubs/dancing school; Wedding/gala/events; Stage; mobile djs / entertainer; restaurants, bars and hotels
Application possibility: Standing; suspended

Package contents

1 x moving light, 1 x user manual, 1 x power cord, 1 x omega bracket, 1 x safety eyelet

Manuals

Paraméterek

Power supply	100-240 V AC, 50/60 Hz
Power consumption	135 W
IP classification	IP20
Protection class	Protection class I
Power connection	Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Fuse	5 x 20 mm, T 2 A Fuse replaceable
Lamp type	LED lamp
LED	1 x 90 W COB (chip-on-board) cold white (CW)
6 x 10 W high-power 6in1 HCL RGBWA/UV (homogenous color mix)
Max. TILT movement	200° Exact positioning (16 bit resolution) Auto position correction (feedback)
Max. PAN movement	540° Exact positioning (16 bit resolution) Auto position correction (feedback)
Flash rate	2 - 30 Hz
Equipment	Prism 3-fold rotating; gobo wheel with rotating gobos; gobo wheel with static gobos; Focus motor-driven; color wheel
Color generation	Color wheel with 7 dichroic filters plus open
Half colors selectable, Rainbow effect with adjustable speed in both directions
Gobos	Gobo wheel with static gobos, 7 gobos and open
Shake effect
Gobo wheel with rotating gobos, 6 gobos and open
Outside diameter 21,8mm
Image diameter 16mm
Shake effect
Gobos changeable
Slot-in gobo system for easy gobo replacement
DMX channels	25
DMX input	3-pin XLR (M) mounting version
DMX output	3-pin XLR (F) mounting version
Cooling	Cooling fan
Control	Stand-alone; DMX; Sound to light via Microphone; Master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Preprogrammed in	Light Captain; EASY SHOW 3
Projection	Flicker-free
Beam angle	13°
Beam angle (1/2 peak)	Spot 13°
Wash effect 20°
Beam angle (1/10 peak)	Wash effect 38°
Illuminance in Lux (lx)	Spot cold white (CW) 1m:49373 lx, 3m:6186 lx, 6m:1606 lx
Wash effect red (R) 1m	974 lx, 3m:101 lx, 6m:26 lx
Wash effect green (G) 1m	2008 lx, 3m:244 lx, 6m:66 lx
Wash effect blue (B) 1m	518 lx, 3m:49 lx, 6m:13 lx
Wash effect cold white (CW) 1m	2527 lx, 3m:257 lx, 6m:69 lx
Wash effect amber (A) 1m	733 lx, 3m:83 lx, 6m:21 lx
Wash effect ultra violet (UV) 1m	16 lx, 3m:2 lx, 6m:1 lx
Wash effect all 1m	5885 lx, 3m:703 lx, 6m:184 lx
Housing color	White
Display type	Multicolor LCD display
Dimensions	Width:25,0 cm
Depth	22,0 cm
Height	36,0 cm
Weight	6,50 kg; 6,50 kg
Noise classification	Class 3 (clearly perceptible sounds)
Legal specifications
Special product	Not designed for household room illumination
Intended use	Show effect lighting
