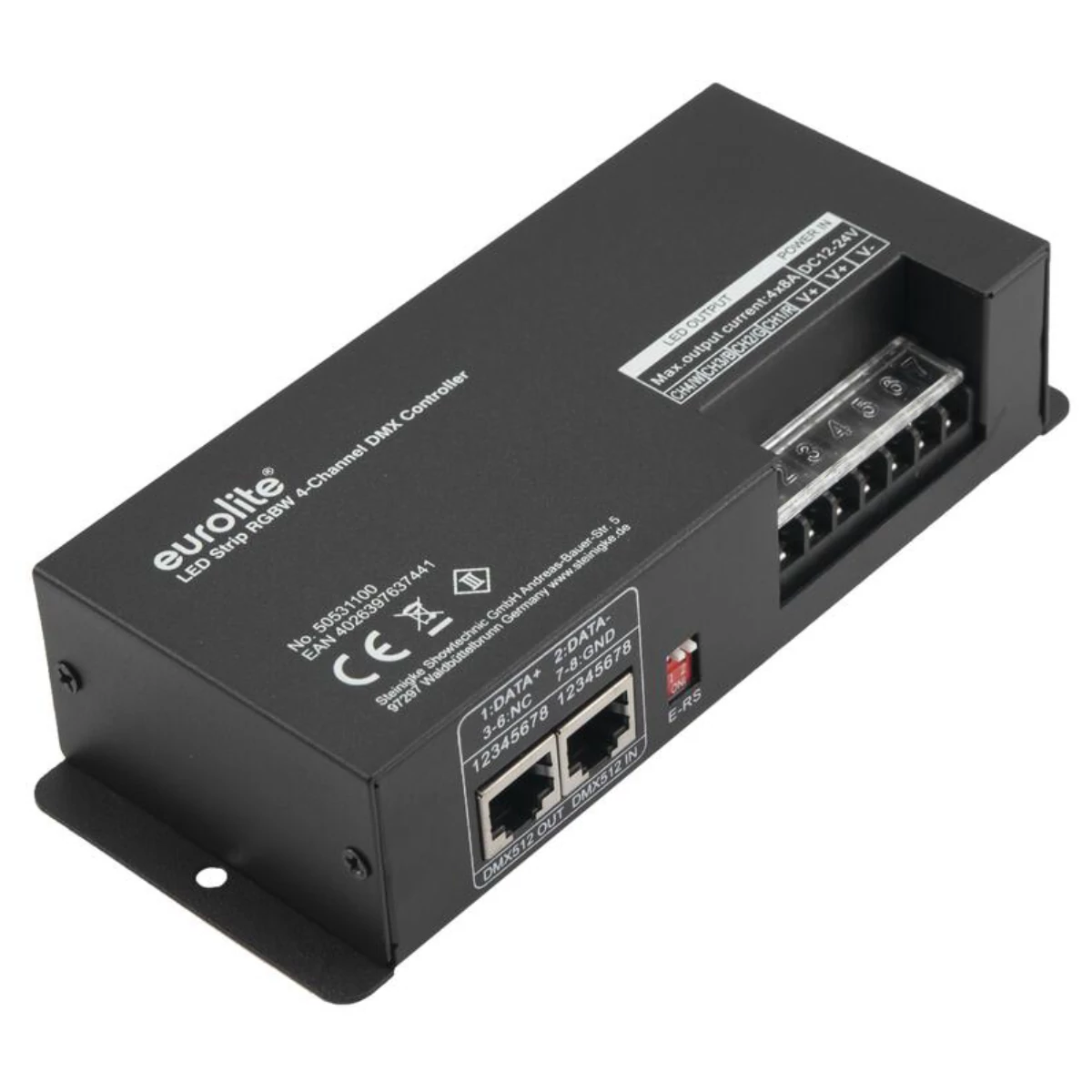

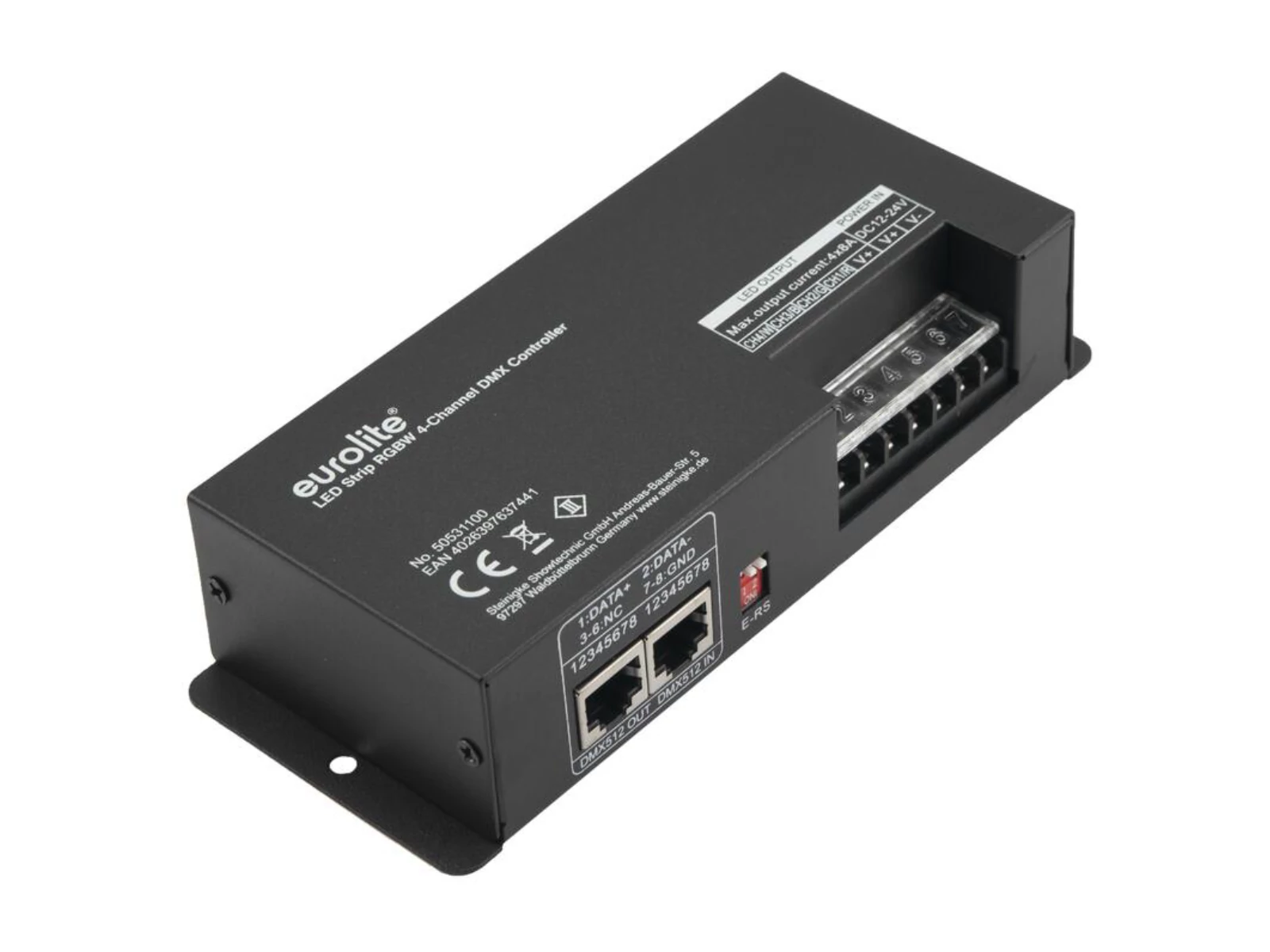

4-channel LED controller with DMX interface for RGB LEDs 12-24 V
- Compact LED controller for controlling RGBW LEDs (12-24 V) via DMX
- Converts standard DMX512 signals to PWM signals e.g. for driving LED strips
- 4 separate control channels for individual color mixing of red, green, blue and white LEDs
- Switchable termination resistor
- Plug-in screw terminals for connecting the LEDs and the power supply
- RJ45 jacks for serial connection
- Rugged black metal housing
- Integrated show programs
- Control via stand-alone
- For application areas such as: Clubs/dancing school; Trade fair and shop fitting; installation; restaurants, bars and hotels
- Silent operation
Package contents
- 1 x device, 1 x user manual
Manuals
ManualsParaméterek
| Power supply | 12/24V DC |
| Power consumption | Max. 384 W 12 V DC |
| Max. 768 W 24 V DC | |
| Max. 96 W 12 V DC per channal | |
| Max. 192 W 24 V DC per channal | |
| Output current | Max. 4 x 8 A per channal |
| Power connection | Via screw terminal |
| Power output | Screw terminal |
| DMX channels | 4 |
| DMX input | 3-pin XLR (M) mounting version |
| 1 x RJ-45 (F) mounting version | |
| DMX output | 3-pin XLR (F) mounting version |
| RJ-45 (F) mounting version | |
| Control | Stand-alone |
| Dimensions | Length:16.4 cm |
| Width | 6.6 cm |
| Height | 3.8 cm |
| Weight | 0.30 kg |
| Noise classification | Class 0 (no noise at all) |
