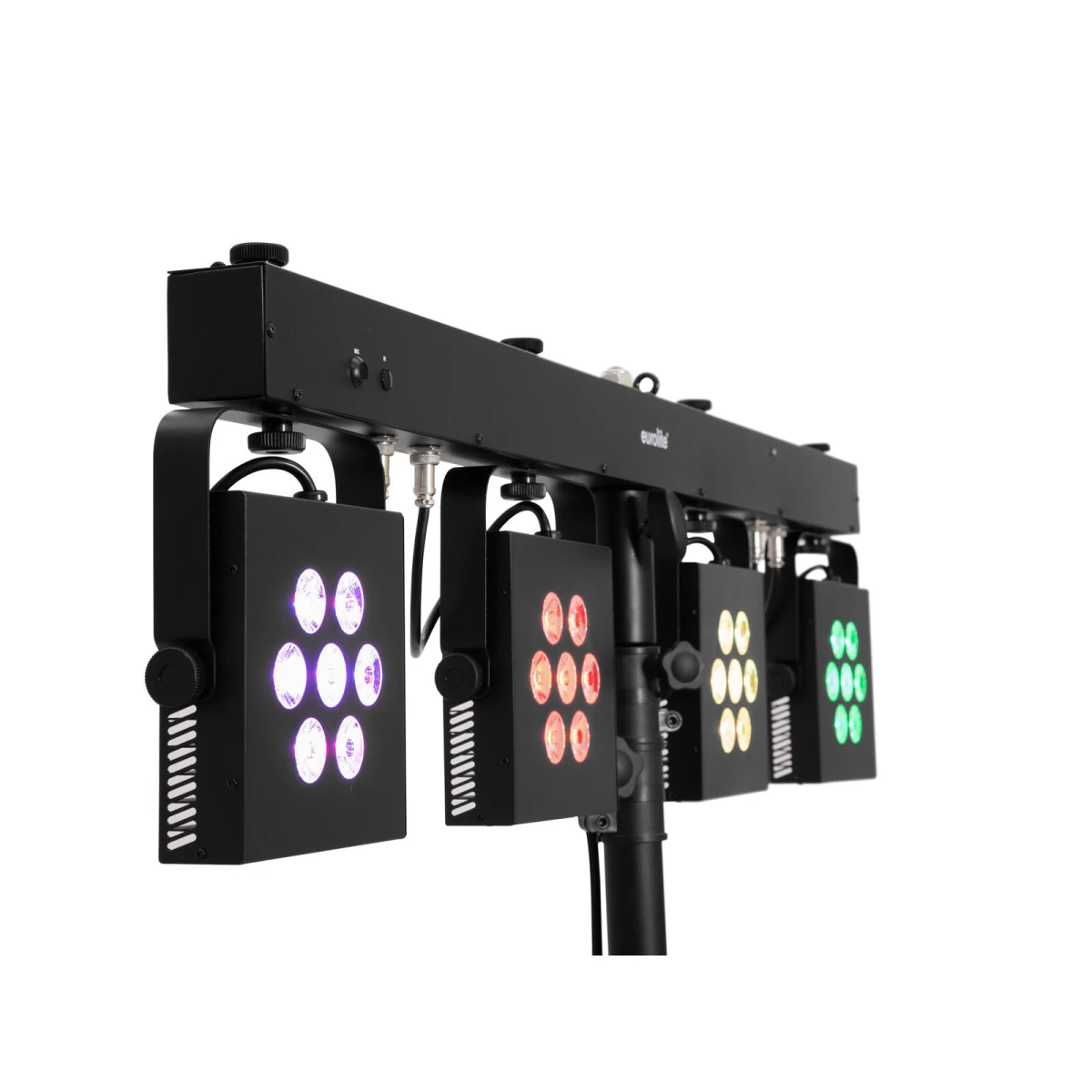

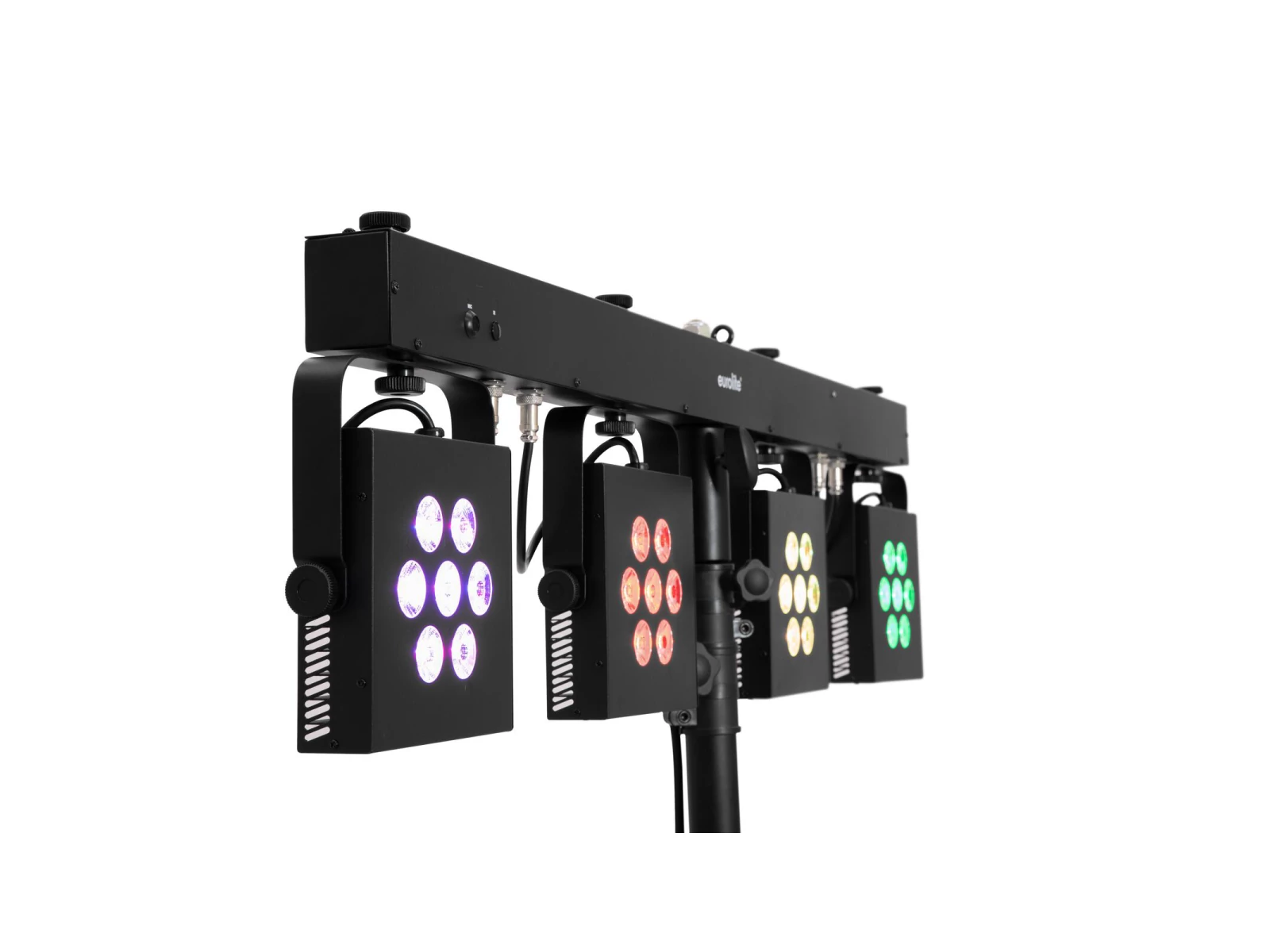

Bar with 4 powerful RGBAW/UV spots, QuickDMX support, IR remote control and carrying bag
- DMX light set with four slim-line LED spots
- 7 high-power 10 W RGBAW/UVLEDs (6in1) per spot
- Perfect solid and pastel colors and stunning blacklight effects thanks to RGBAW/UV color mixing
- Color and brightness individually adjustable for each spot directly at the control unit
- Brand-new software design with smart programs
- Ultra-light, ideally suited for mobile use
- Crossbar with integrated DMX control unit and TV spigot for tripod installation
- Quick truss installation via quick-lock omega holders
- Spots movable and tiltable, and with 19° beam angle
- Comes pre-assembled with practical transport bag
- Convenient control via included IR remote control or optional wireless foot switch
- Auto, music, master/slave and DMX mode
- 20 built-in auto and music show programs
- Direct color selection for 21 preset colors
- Control panel with LED display for easy configuration
- Supports QuickDMX - the wireless DMX system from Eurolite
- Built-in phantom-powered USB port for QuickDMX, CRMX and WDMX receivers (optional)
- Mounting points and power outlets for additional fixtures
- Mains input and output for power linking up to 8 units
- LED: Spot 7 x high-power 10 W 6in1 HCL RGBWA/UV (homogenous color mix)
- Can be operated in 2; 4; 6; 10; 24; 28 CH mode
- The device is cooled by passive convection
- Controlling by stand-alone; DMX; IR remote control; Sound to light via Microphone; Wireless footswitch (optional); QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- Preprogrammed in EASY SHOW; Light´J; LED PC-Control 512; LED EASY OPERATOR DELUXE; Light Captain
- For application areas such as: Small lender; Lender; Wedding/gala
Manuals
ManualsParaméterek
| Power supply | 100-240 V AC, 50/60 Hz |
| Power consumption | 225 W |
| IP classification | IP20 |
| Power connection | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Cable construction | 3 x 1,0 mm² H05VV-F |
| Cable length | 3 m |
| Power output | 2 x IEC connector (F) mounting version fused |
| 1 x P-Con (gray), mounting version Bypass | |
| Device fuse | 5 x 20 mm, T 2,5 A Fuse replaceable |
| Power output fuse per channel | 5 x 20 mm, T 5 A Fuse replaceable |
| Lamp type | LED lamp |
| LED | Spot 7 x high-power 10 W 6in1 HCL RGBWA/UV (homogenous color mix) |
| DMX channels | 2; 4; 6; 10; 24; 28 |
| DMX input | 1 x 3-pin XLR (M) mounting version |
| DMX output | 1 x 3-pin XLR (F) mounting version |
| Cooling | Passive convection |
| Control | Stand-alone; DMX; IR remote control; Sound to light via Microphone; EASY SHOW; Light´J; LED PC-Control 512; LED EASY OPERATOR DELUXE; Wireless footswitch (optional); QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); Light Captain |
| Beam angle | 19° |
| Beam angle (1/2 peak) | 19° |
| Beam angle (1/10 peak) | 35° |
| Housing color | Black |
| Attachment system | TV spigot Ø 28mm |
| Dimensions | Width:1,28 m |
| Depth | 8 cm |
| Height | 29 cm |
| Weight | 11,14 kg |
| Noise classification | Class 0 (no noise at all) |
| Remote control | |
| Battery | 1 x Button cell 3.0 V CR2025 lithium manganese |
| Legal specifications | |
| Special product | Not designed for household room illumination |
| Intended use | Show effect lighting |
