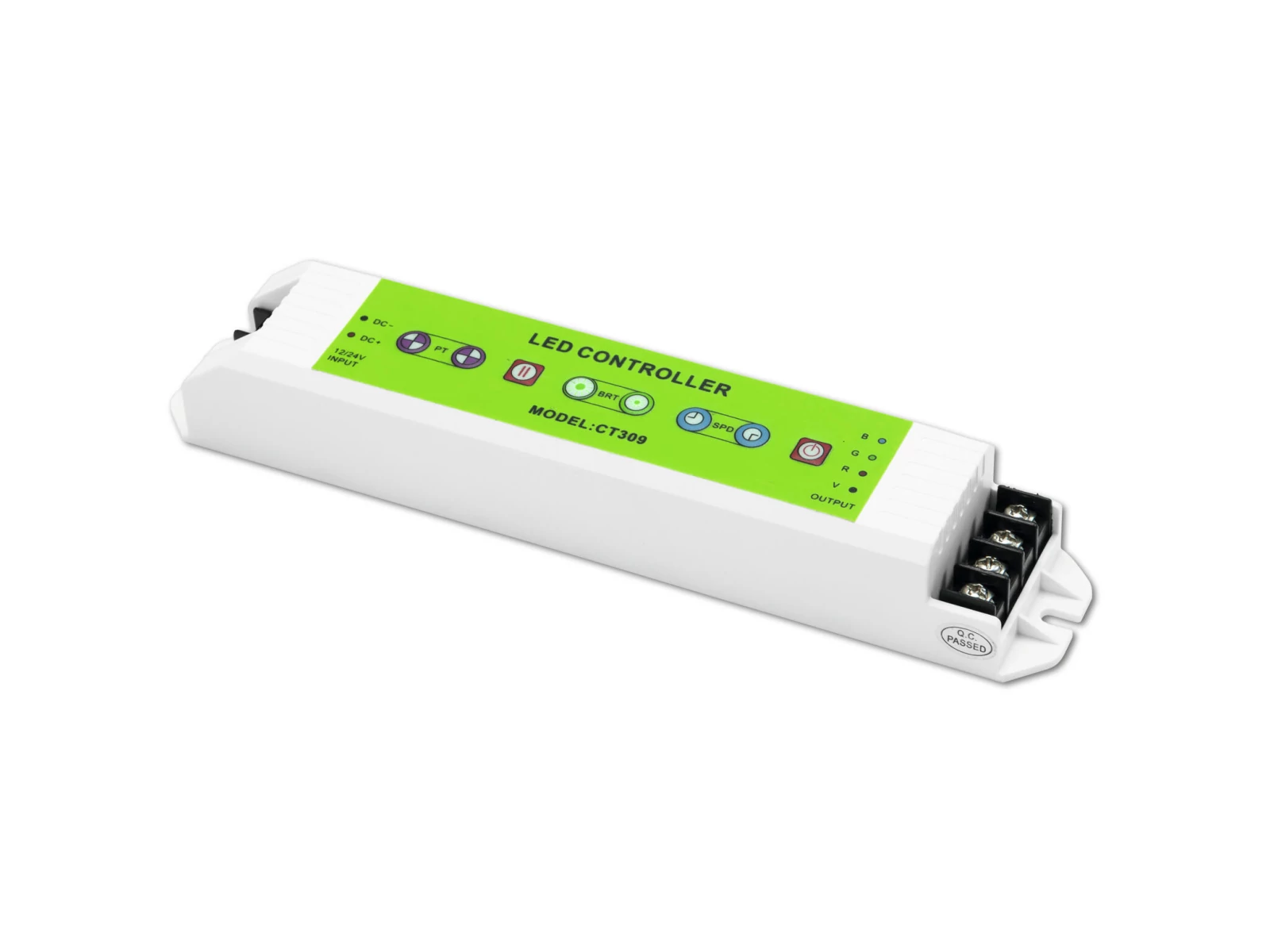

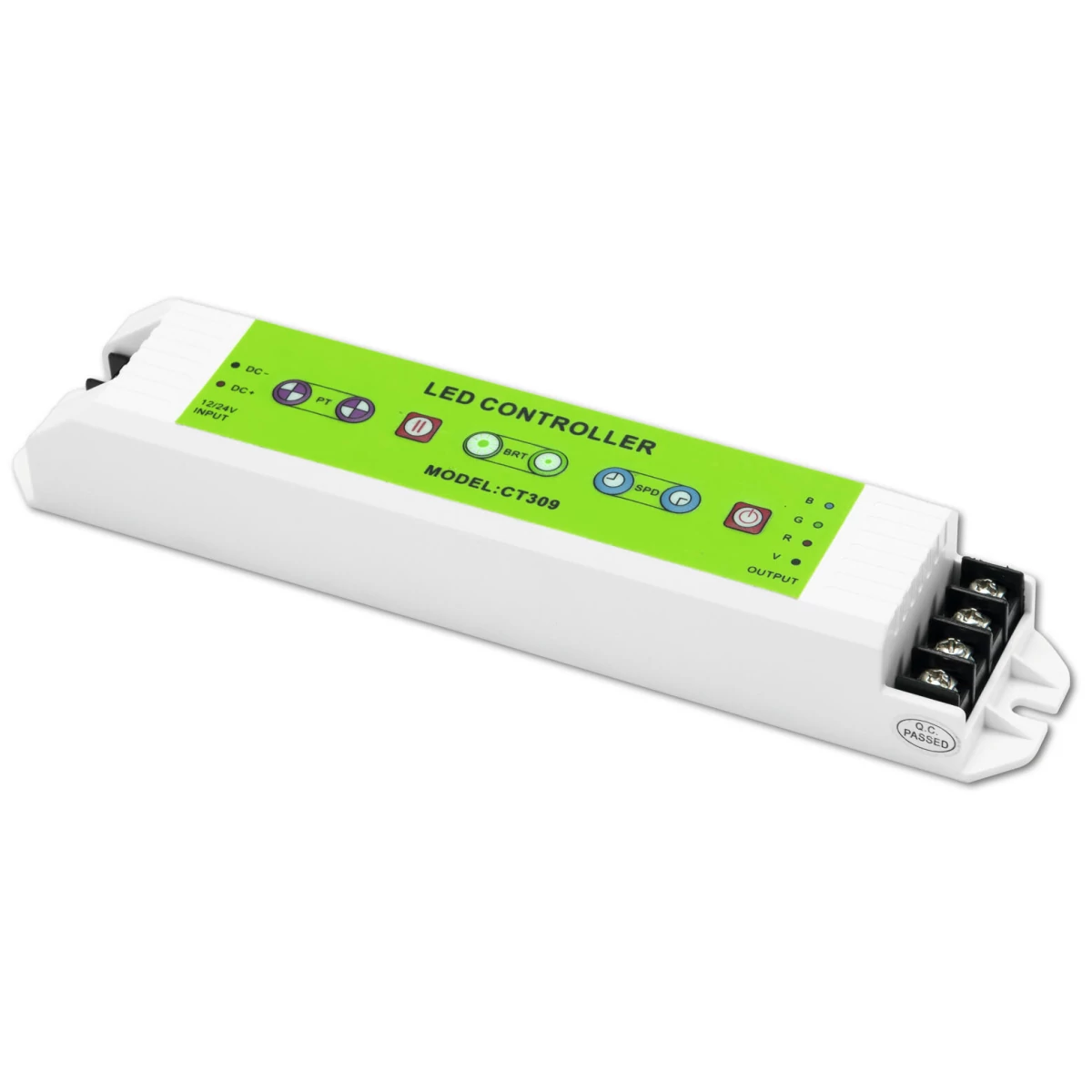

Control unit for RGB LED strips
- Control unit for RGB LED strips (12 V and 24 V versions)
- 3 separate control channels for individual color mixing of red, green and blue LEDs
- Automatic color change or manual or color selection
- Adjustable program speed and brightness
- 4 built-in programs (running light, flash, color fadings), with pause function
- Screw terminals for connecting the LED strips
- Screw terminals for connecting a 12 V or 24 V PSU (not included)
Manuals
ManualsParaméterek
Power supply | 12/24V DC |
Power consumption | Max. 180 W 12 V DC |
Max. 280 W 24 V DC | |
Max. 60 W 12 V DC per channal | |
Max. 120 W 24 V DC per channal | |
Output current | Max. 3 x 5 A per channal |
Dimensions | Width:4 cm |
Depth | 21,1 cm |
Height | 3 cm |
Weight | 130 g |
