1-channel DMX dimmer pack with QuickDMX port

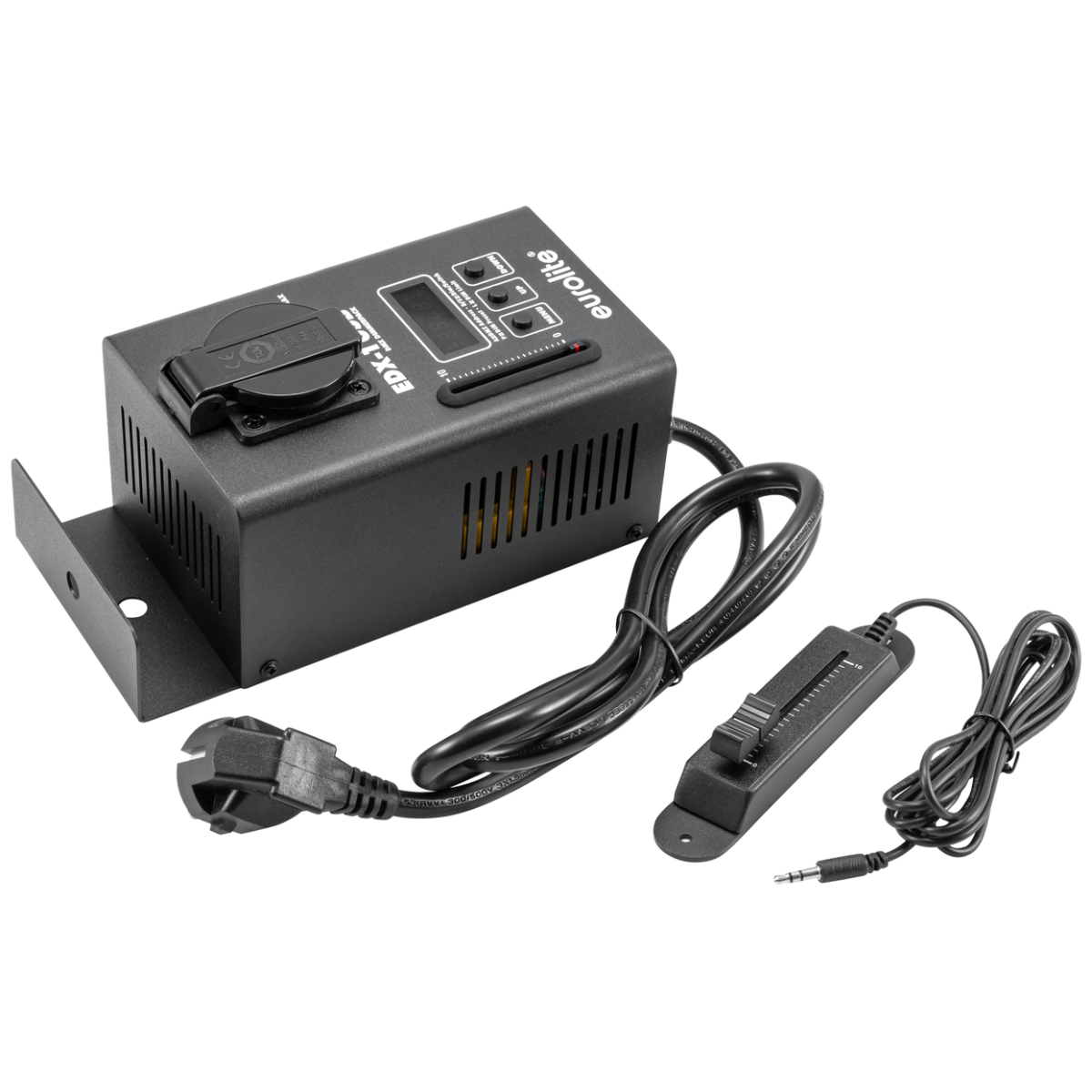

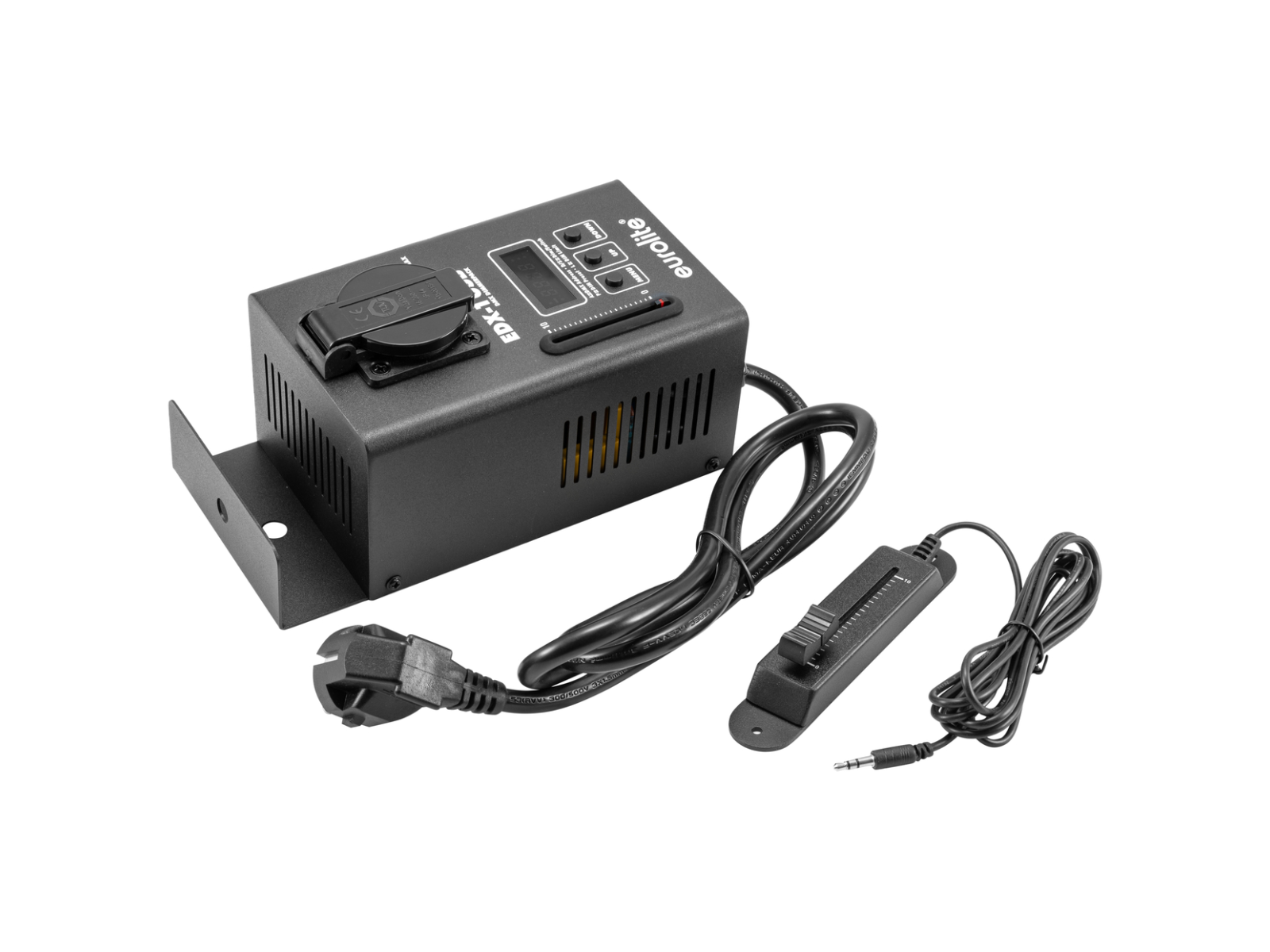

The EDX-1 DMX USB is a compact 1-channel dimmer to control the brightness of spotlights on stage or in clubs. It can be controlled via DMX signal from a light console and supports QuickDMX for wireless control. All menu settings can be made via the built-in control panel with LED display. The housing has threads for fixing the unit to a truss.
- Selectable dimmer or switch pack operating mode
- QuickDMX connector for wireless DMX connection
- Can be operated in 1 CH mode
- Controlling by QuickDMX via USB (optional); stand-alone; DMX; wired remote control; W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- 4 digits 7-segment LED display
Package contents
- 1 x device, 1 x user manual, 1 x remote control
Paraméterek
| Power supply | 230 V AC, 50 Hz |
| Output power | Max. 2300 W |
| Output current | Max. 10 A |
| Power connection | Fixed power supply cord with safety plug |
| Power output | 1 x Safety contact (F), hinged lid mounting version |
| DMX channels | 1 |
| DMX input | 3-pin XLR (M) mounting version |
| USB, type A | |
| DMX output | 3-pin XLR (F) mounting version |
| Control | QuickDMX via USB (optional); stand-alone; DMX; wired remote control; W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
| Control channels | 1 |
| Display type | 4 digits 7-segment LED display |
| Color | Black |
| Dimensions | Width:18,2 cm |
| Depth | 9,2 cm |
| Height | 6,5 cm |
| Weight | 1,56 kg |
