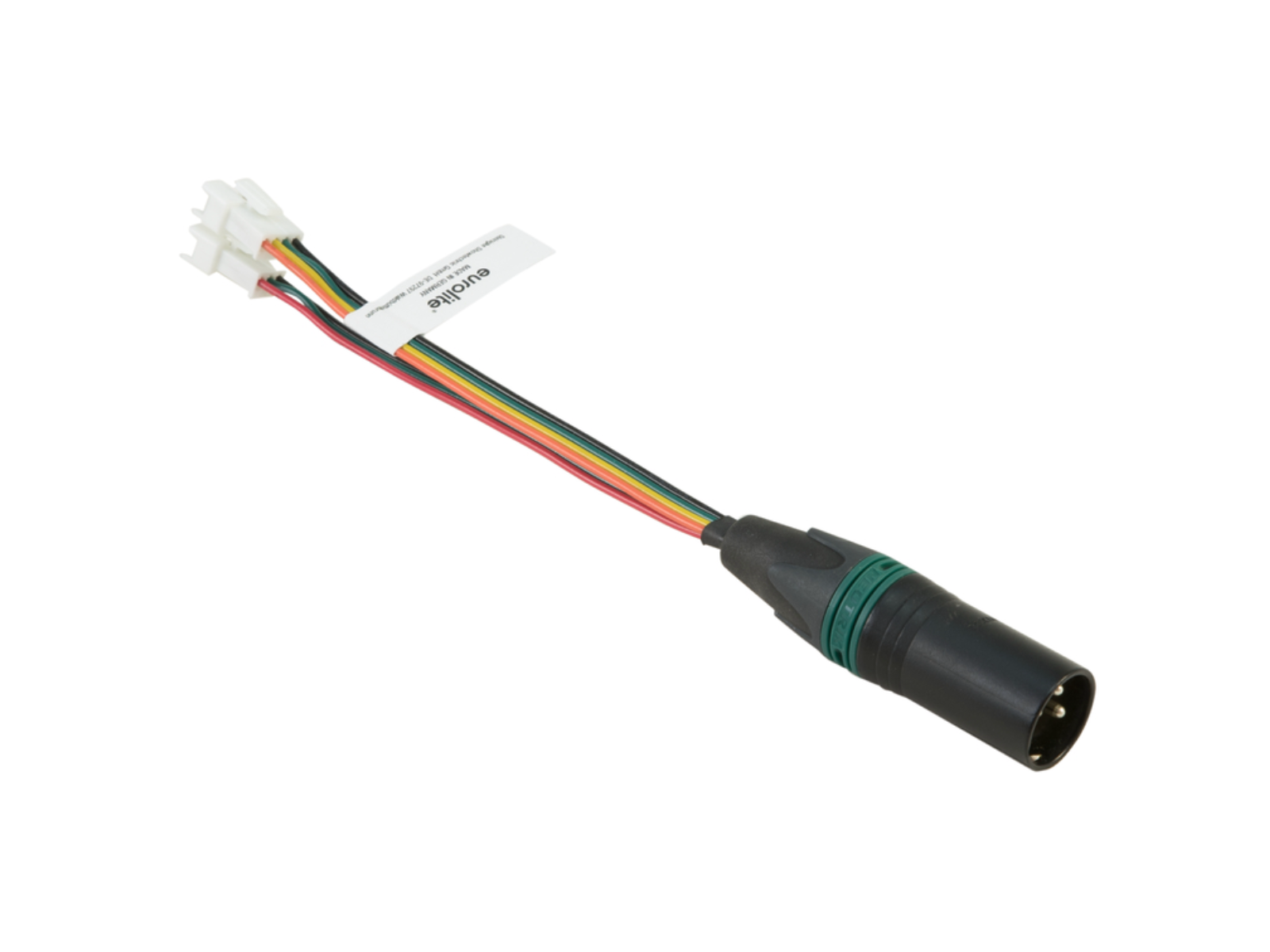

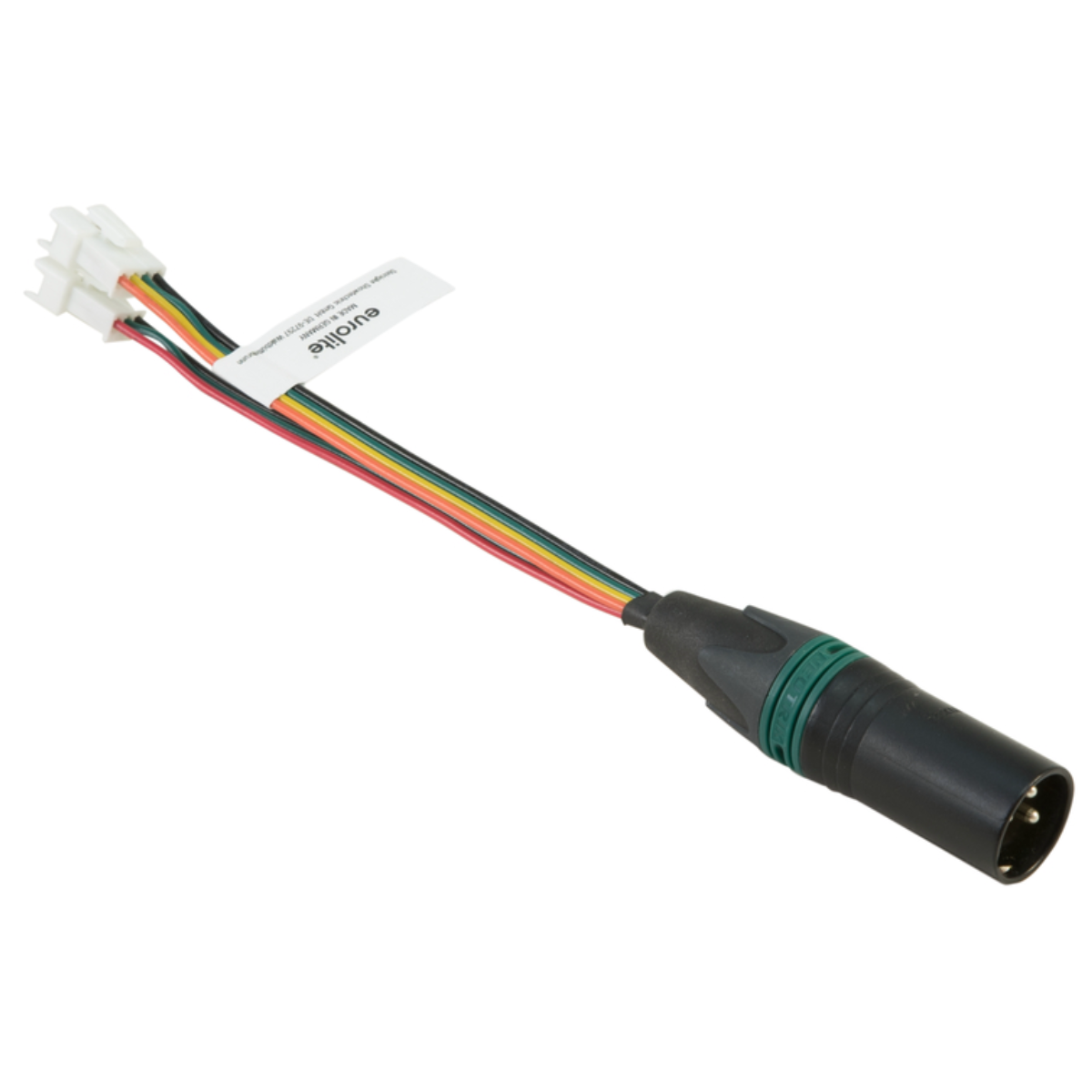

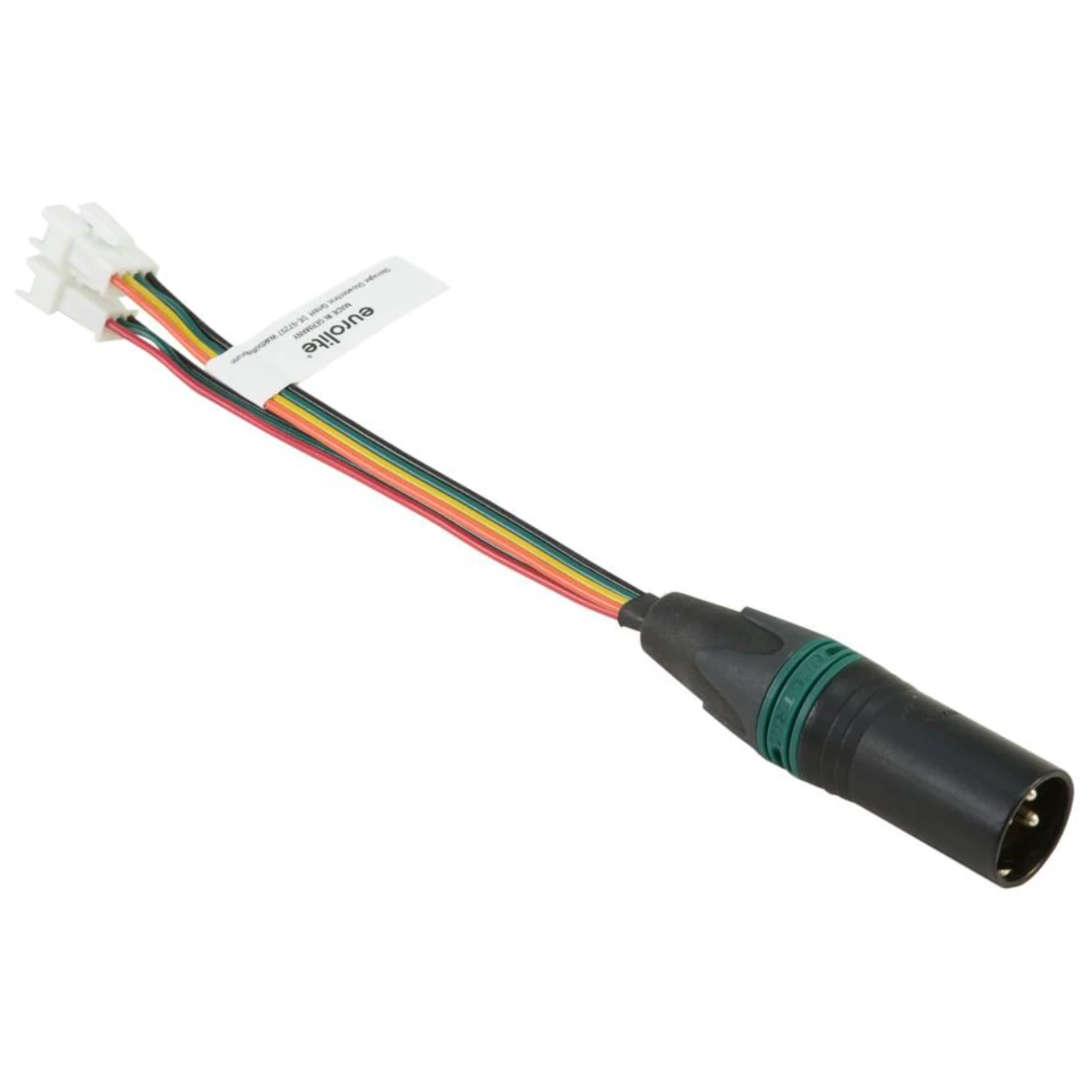

Compact DMX converter for LED pixel strips
- Can control up to 18,000 digital LED pixels via a DMX512 signal
- Extremely compact design placed in the XLR plug
- 1 x 4-pin JST connector (M) with Data and Clock output
- 1 x 3-pin JST connector (M) with Data output
- Multiple LEDs can be grouped together to form virtual pixels, e.g. a strip with 300 LEDs can be controlled with 3 DMX channels
- 1 to 6 colors per pixel
- Refresh rate: DMX, 40 Hz, 20 Hz, 10 Hz, 5 Hz
- Does not require a separate adapter - power supply is via LED strip (5-12 V)
- Mounting via supplied plastic clip
- Configuration via software tool (Windows) and the Eurolite USB-DMX adapter (item 51860118)
- The "Pixel Converter Config Tool" is available for download from the product page at www.eurolite.de
- Made in Germany
Paraméterek
| Power supply | 5-12 V DC 20 mA |
| Dimensions | Length:7,5 cm |
| Diameter | Ø 2 cm |
| Weight | 40 g |
