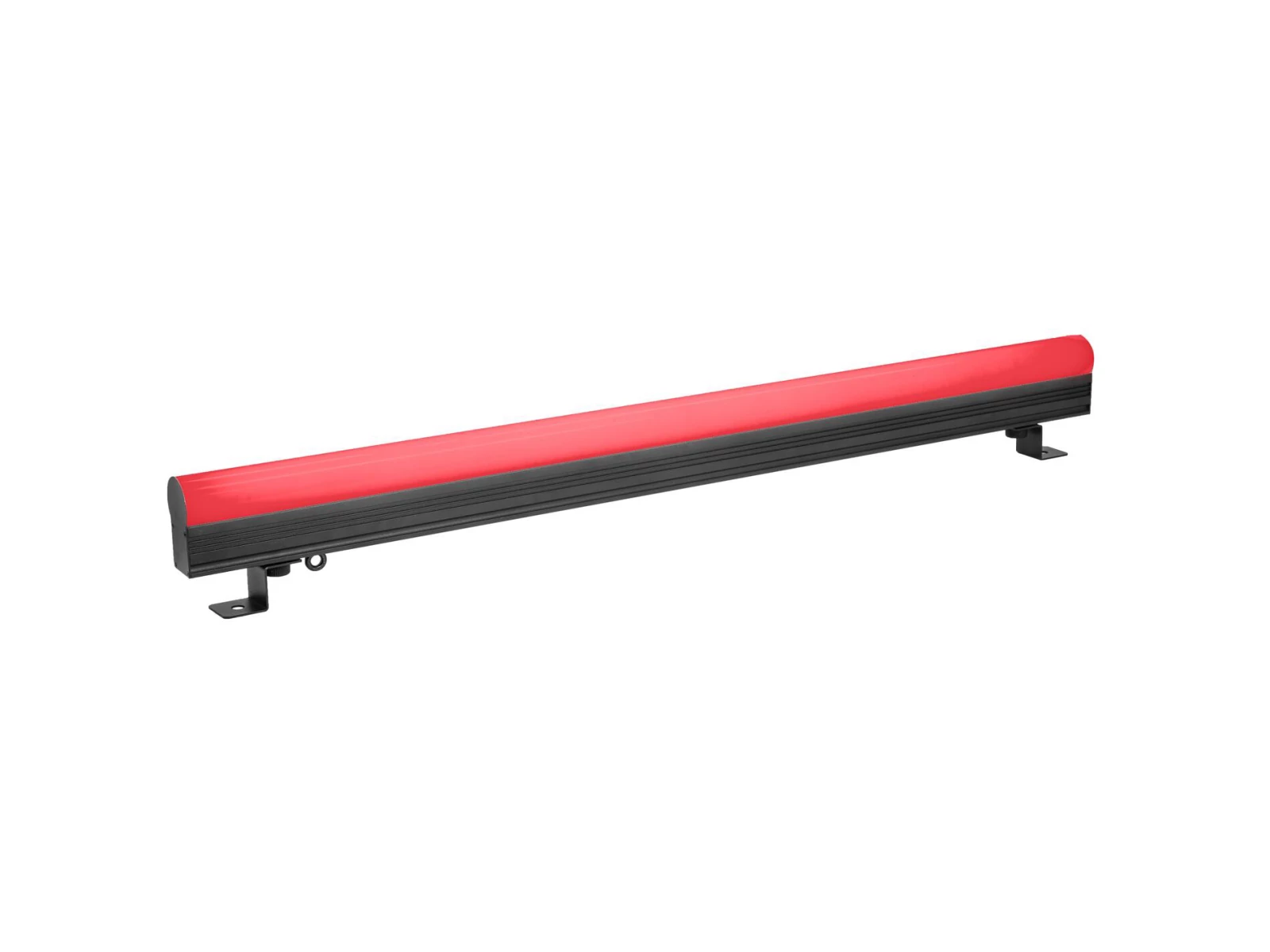

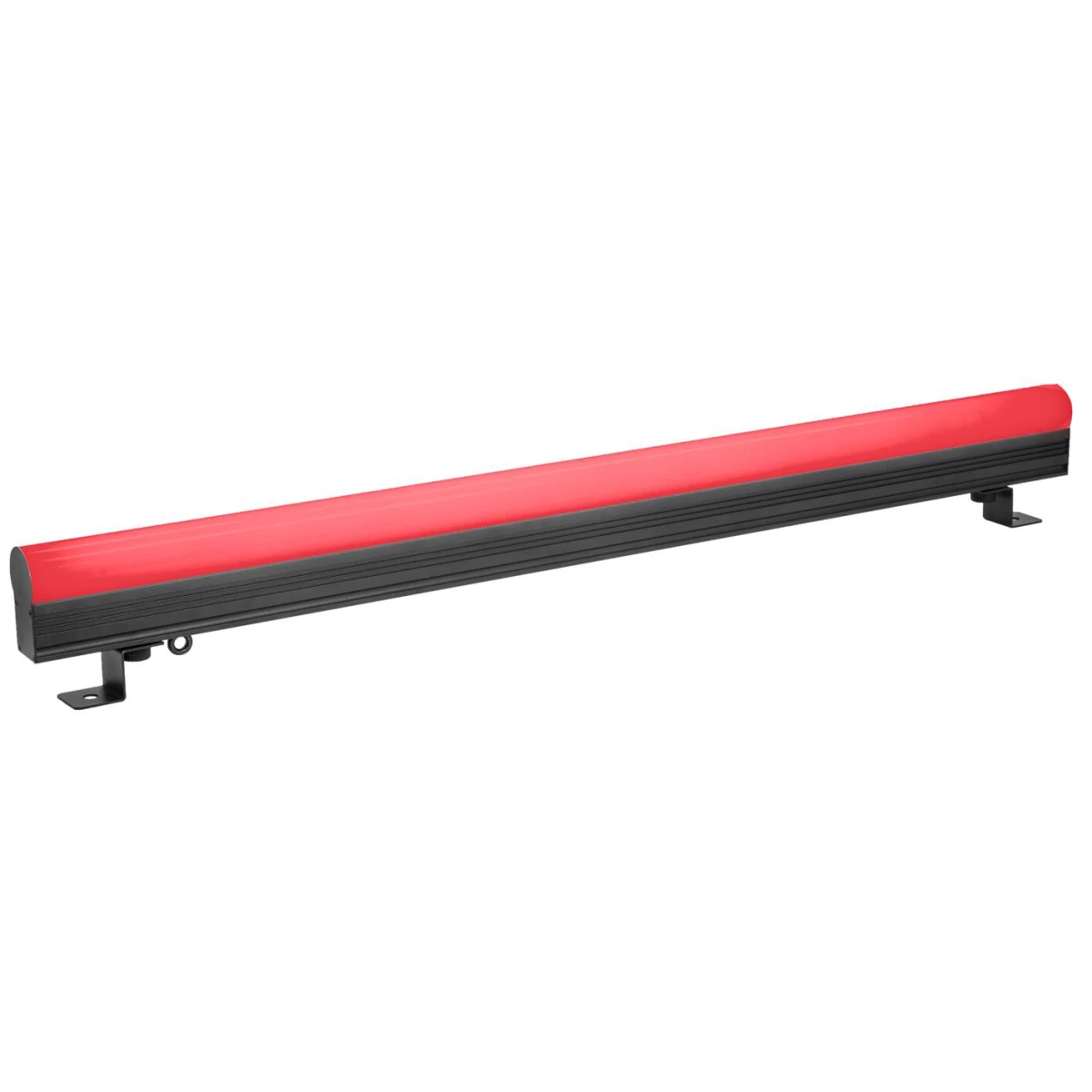

Battery-powered and DMX-controllable pixel tube with RGB color mixing
- Tube with 96 powerful RGB LEDs (3in1) for wide mood lighting
- Subdivided into 32 pixels (illumination units à 3 LEDs) which can be controlled individually by DMX
- Stepless color blend, color change, color fade, dimmer and strobe effect
- Rugged metal housing
- Battery operation up to 9h depending on program used
- 96 powerful LEDs SMD 5050 3in1 TCL RGB (homogenous color mix)
- 12 integrated Showprograms
- Direct color selection for 17 preset colors
- Can be operated in 3; 5; 8; 48; 96 CH mode
- The device is cooled by passive convection cooling
- Controlling by stand-alone; IR remote control; DMX; Master/slave function; Sound to light via Microphone; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- 4 digits 7-segment LED display
Package contents
- 1 x device, 1 x user manual, 1 x external mains adapter, 1 x stand, 1 x remote control, 1 x battery
Manuals
ManualsParaméterek
| Power supply | 100-240 V AC, 50/60 Hz |
| 13 V DC | |
| Pin configuration | Inside + outside - |
| IP classification | IP20 |
| Protection class | Protection class III |
| Power connection | Mains input via Coaxial power connector (M) mounting version power supply cord with AC adapter (provided) |
| Battery/battery pack | |
| Battery pack type | 1 x lithium ion 11,1 V, 4400 mAh, 48,84 Wh |
| Battery pack | Battery operation up to 9h depending on program used |
| Recharging time 1,5h | |
| LED | 96 x SMD 5050 3in1 TCL RGB (homogenous color mix) |
| Flash rate | 0 - 20 Hz |
| DMX channels | 3; 5; 8; 48; 96 |
| DMX input | 3-pin XLR (M) mounting version |
| DMX output | 3-pin XLR (F) mounting version |
| Cooling | Passive convection cooling |
| Control | Stand-alone; IR remote control; DMX; Master/slave function; Sound to light via Microphone; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
| Housing color | Black |
| Display type | 4 digits 7-segment LED display |
| Dimensions | Width:5 cm |
| Depth | 12,7 cm |
| Height | 1 m |
| Weight | 2,50 kg |
| Remote control | |
| Battery | 1 x Button cell 3.0 V CR2025 lithium manganese built-in |
| Legal specifications | |
| Special product | Not designed for household room illumination |
| Intended use | Show effect lighting |
